Section 7. Installation

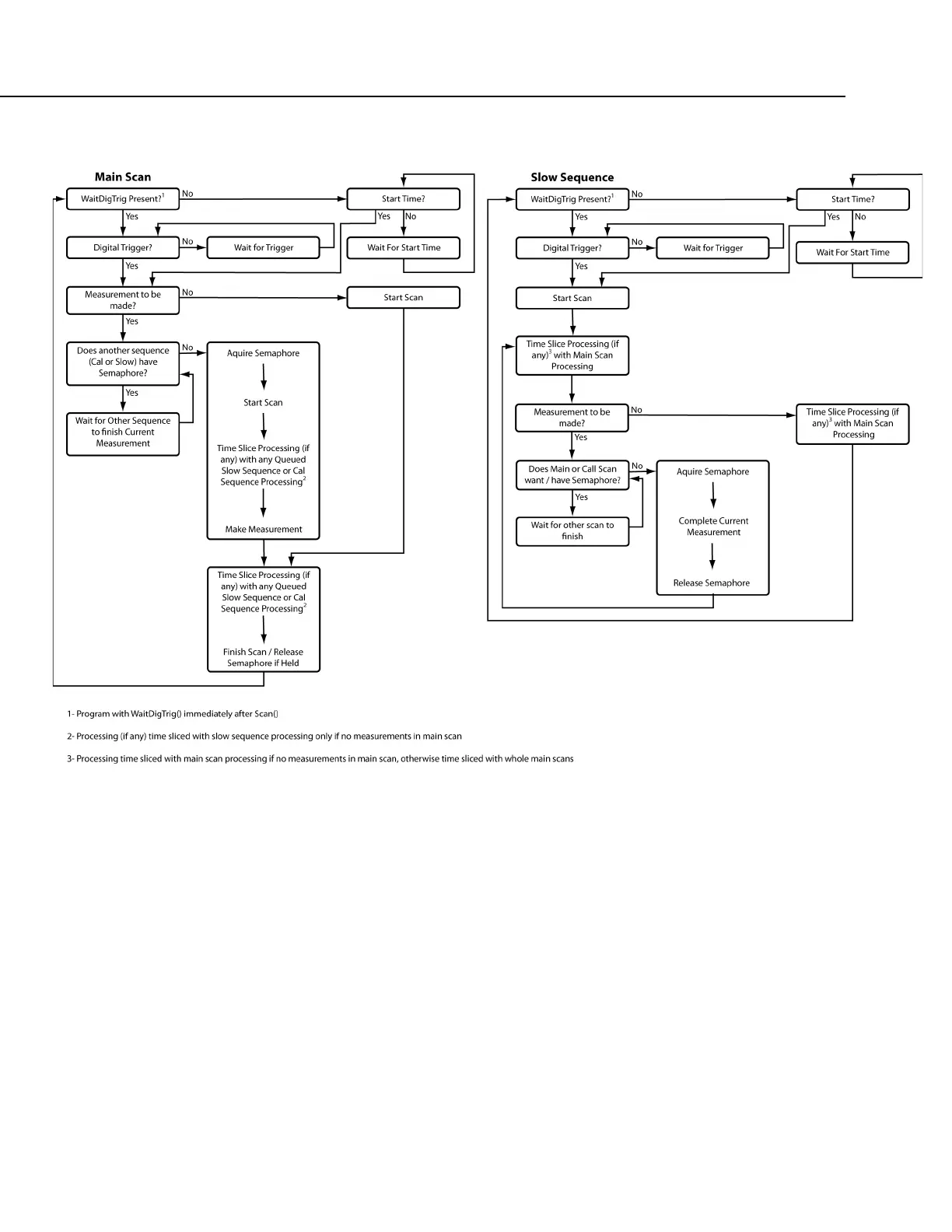

FIGURE 38: Sequential-Mode Scan Priority Flow Diagrams
7.6.3.14 Programming Instructions
In addition to BASIC syntax, additional instructions are included in CRBasic to
facilitate measurements and store data. See CRBasic Editor Help
(p. 122) for a
comprehensive list of these instructions.
7.6.3.14.1 Measurement and Data Storage Processing
CRBasic instructions have been created for making measurements and storing
data. Measurement instructions set up CR800 hardware to make measurements
and store results in variables. Data storage instructions process measurements into
averages, maxima, minima, standard deviation, FFT, etc.
Each instruction is a keyword followed by a series of informational parameters
needed to complete the procedure. For example, the instruction for measuring
CR800 panel temperature is:
