Section 8. Operation
378
and flow meters, are calibrated in terms of frequency (Hz (p. 501) ) so are
usually measured using the PulseCount() frequency-output option.
• Accuracy of PulseCount() is limited by a small scan-interval error of
±(3 ppm of scan interval + 10 µs), plus the measurement resolution error
of ±1 / (scan interval). The sum is essentially ±1 / (scan interval).
• Use the LLAC4
(p. 562) module to convert non-TTL-level signals,
including low-level ac signals, to TTL levels for input into C terminals.
• As shown in the table Switch Closures and Open Collectors
(p. 378), C
terminals, with regard to the 6.2 V Zener diode, have an input resistance
of 100 kΩ with input voltages < 6.2 Vdc. For input voltages ≥ 6.2 Vdc, C
terminals have an input resistance of only 220 Ω.

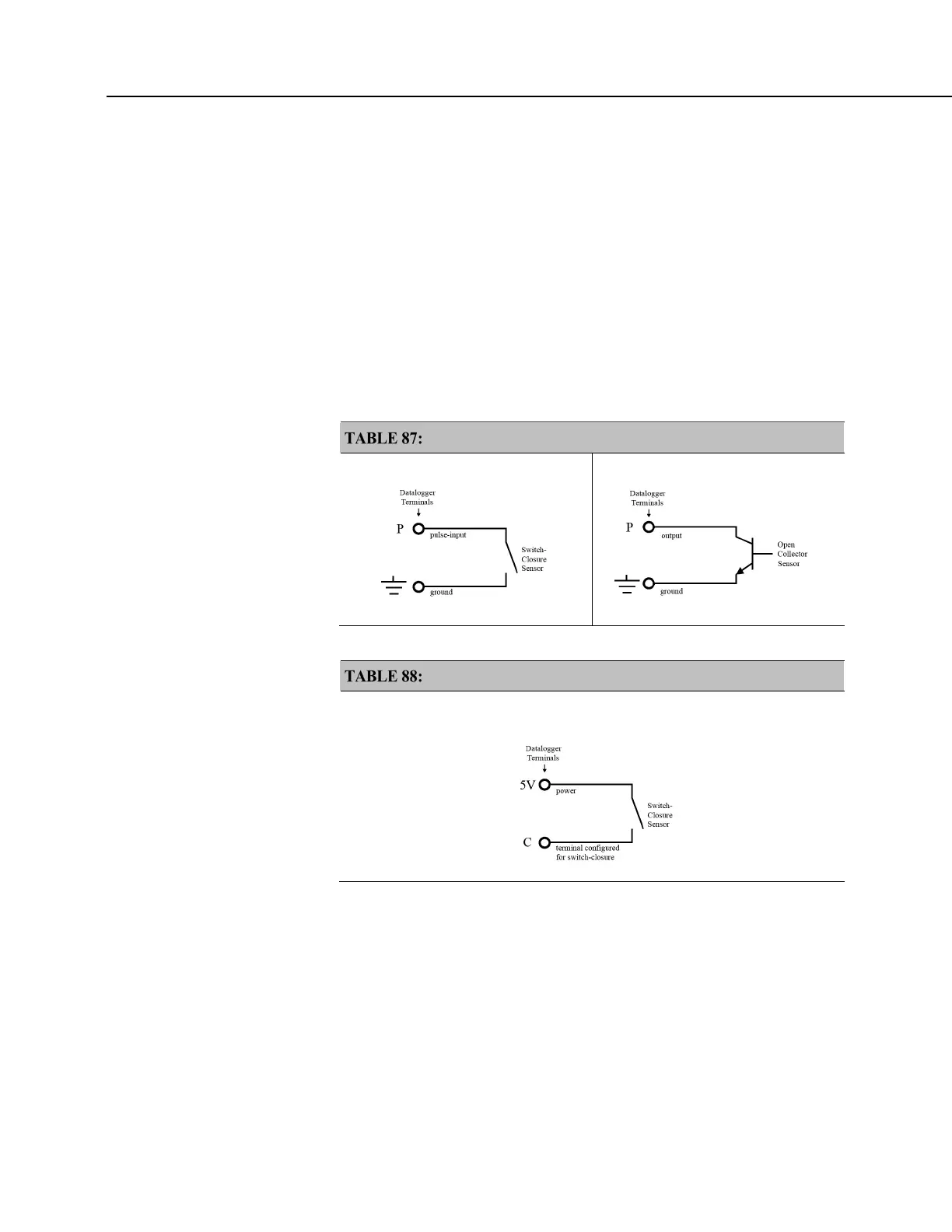

Switch Closures and Open Collectors on P Terminals
Switch Closure on P Terminal
Open Collector on on P Terminal
Switch Closures and Open Collectors
Switch Closure on C Terminal:
No Pull-Up
