Campbell CR800 Series User Manual

Section 5. Overview
81

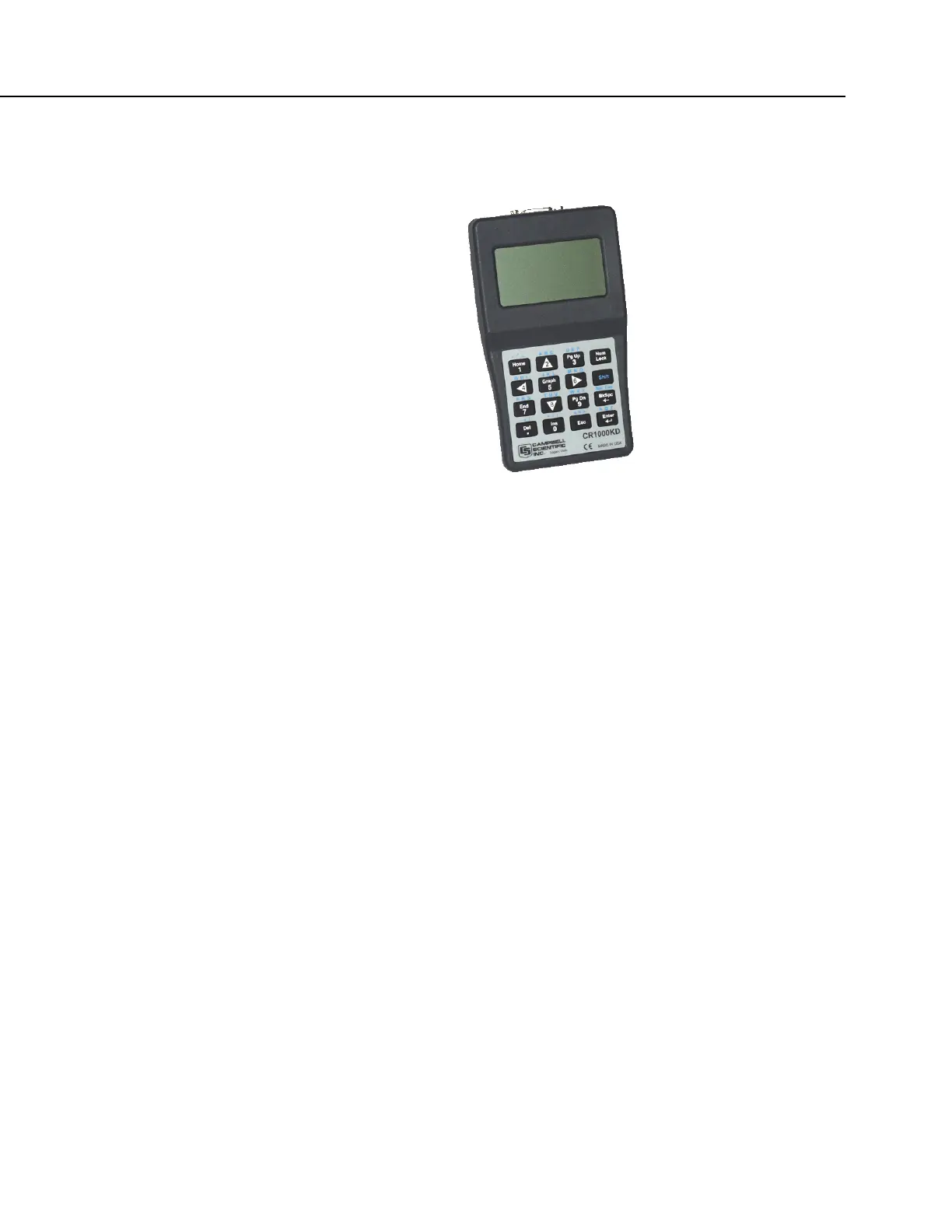

FIGURE 26: CR1000KD
Keyboard/Display
5.3.7.1 Integrated/Keyboard Display
The integrated keyboard display, illustrated in figure Wiring Panel (p. 37), is a
purchased option when buying a CR800 series datalogger.
5.3.7.2 Character Set
The keyboard display character set is accessed using one of the following three
procedures:
• The 16 keys default to ▲, ▼, ◄, ►, Home, PgUp, End, PgDn, Del,
and Ins.
• To enter numbers, first press Num Lock. Num Lock stays set until
pressed again.
• Above all keys, except Num Lock and Shift, are characters printed in
blue. To enter one of these characters, press Shift one to three times to
select the position of the character as shown above the key, then press the
key. For example, to enter Y, press Shift Shift Shift PgDn.
• To insert a space (Spc) or change case (Cap), press Shift one to two
times for the position, then press BkSpc.
• To insert a character not printed on the keyboard, enter Ins , scroll down
to Character, press Enter, then press ▲, ▼, ◄, ► to scroll to the
desired character in the list that is presented, then press Enter.
