Section 4. Quickstart

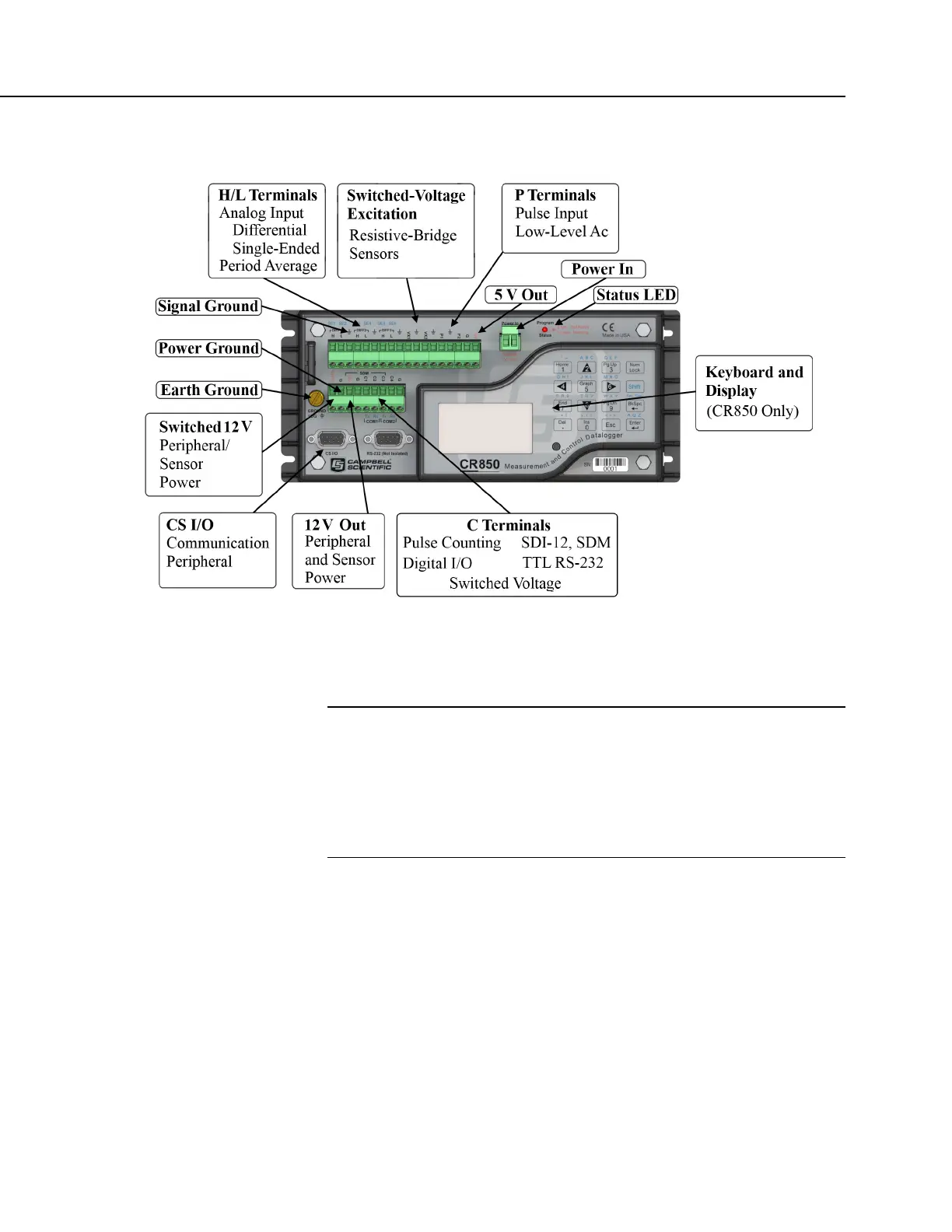

FIGURE 1: Wiring Panel
4.3 Power Supplies — Quickstart
Related Topics:
• Power Input Terminals — Specifications
• Power Supplies — Quickstart
(p. 37)
• Power Supplies — Overview (p. 83)
• Power Supplies — Details (p. 94)
• Power Supplies — Products (p. 576)
• Power Sources (p. 95)
• Troubleshooting — Power Supplies (p. 477)
The CR800 requires a power supply. Be sure that power supply components
match the specifications of the device to which they are connected. When
connecting power, first switch off the power supply, make the connection, then
turn the power supply on.
The CR800 operates with power from 9.6 to 16 Vdc applied at the POWER IN
terminals of the green connector on the face of the wiring panel.
External power connects through the green POWER IN connector on the face of
the CR800. The positive power lead connects to 12V. The negative lead connects
to G. The connection is internally reverse-polarity protected.
