1.1 Main Components and Their Functions
5
Getting to Know Your Copier
1
No. Name Functions
11 Top left cover Push up the unlock lever to access the inside of the machine to
clear paper jams and replace consumables.
12 Duplex Unit cover Open this cover to access the inside of the machine to clear paper
jams when the Duplex Unit is installed.
13 Left center cover Open this cover to access the inside of the machine to clear paper
jams.
14 Bottom left cover Open this cover to access the inside of the machine to clear paper
jams in the case of 2-tray cassettes or cassettes having more trays.
15 Clear all Press this button to automatically turn the machine off when a cur-
rent leakage is detected.
16 Parallel interface connector Connect the Centronics interface cable to this connector to connect
the machine to a personal computer.
17 10Base-T/100Base-TX
connector
Connect the interface cable to this connector.
18 Side Output Tray Copies and prints are delivered here facing up.
The Side Output Tray is an optional accessory.

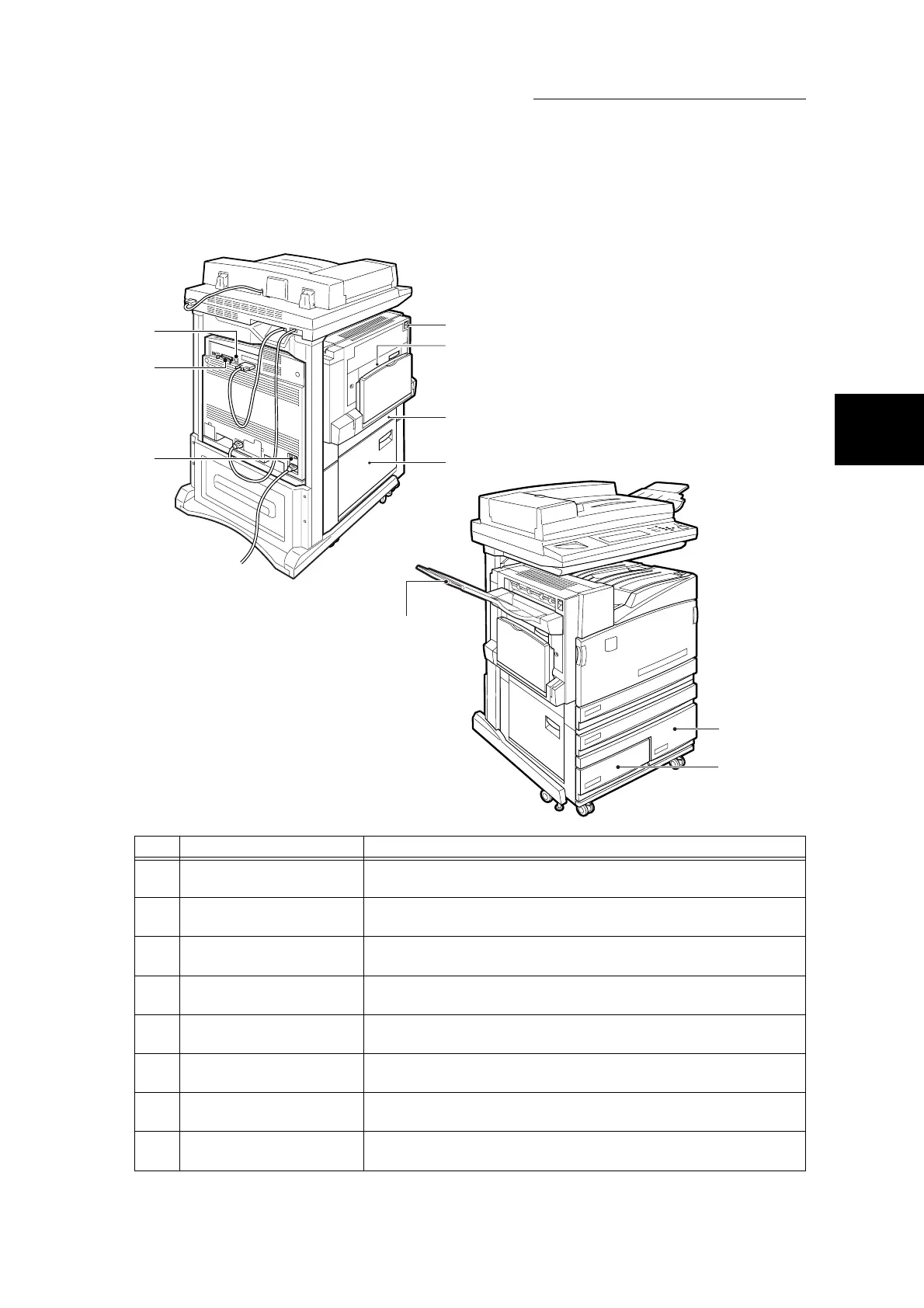

High Capacity Tray Model + Side
Output Tray
Left Side and Back
17
16
15
12
13
14
11
Tray 4*
(High Capacity)
Tray 3*
(High Capacity)
18
* For DocumentCentre C400/320 only
To Next Page
