Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-7
6 Remove the KIT COVER SIDE L AIO ASSY. (REP19.6)

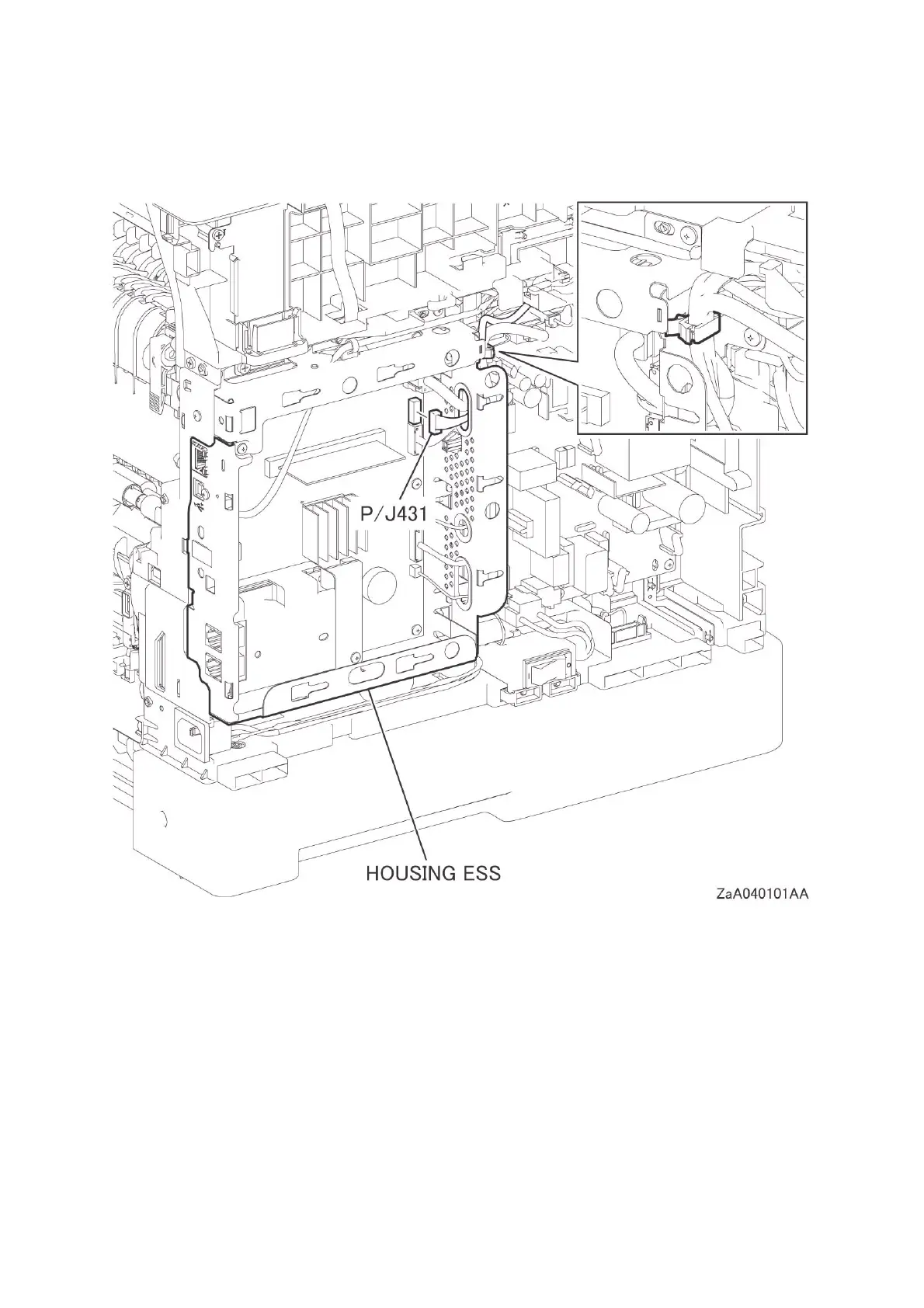

7 Disengage the connector (P/J431) from the PWBA ESS AIO, pull the harness out of the hole on
the HOUSING ESS, and then release the harness from the clamp fixed on the HOUSING ESS.
