Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-8

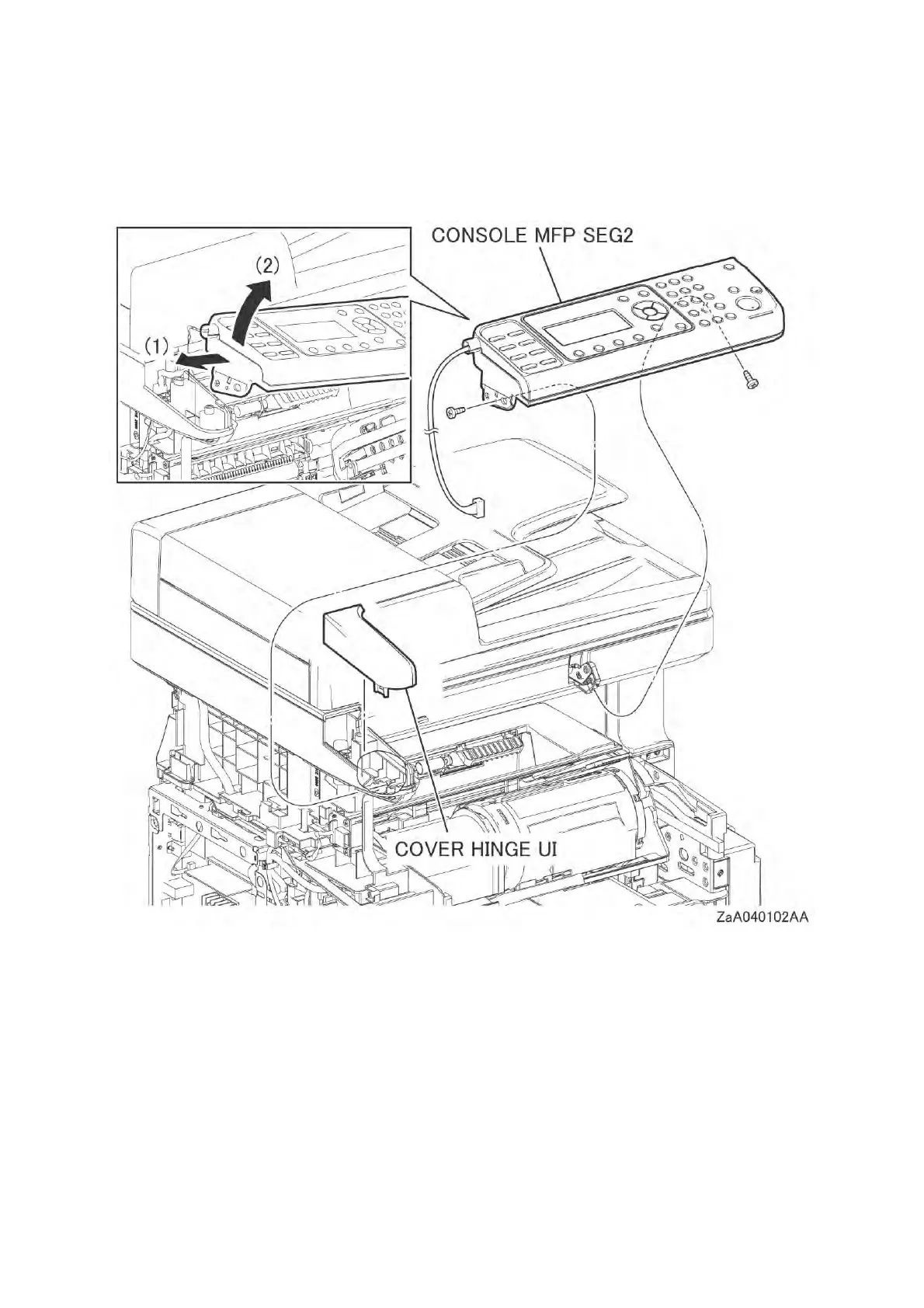

8 Remove the COVER HINGE UI (PL19.1.25).
9 Remove the two screws (silver, tapping, 8mm) that fix the CONSOLE MFP SEG2, release the
harness from the harness guide on the frame, release the two bosses on the IIT frame from the
holes, and then remove the CONSOLE MFP SEG2 from the printer.

Fuji Xerox DocuPrint M355df Specifications

General

Brand	Fuji Xerox
Model	DocuPrint M355df
Category	Printer
Language	English
