Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-21

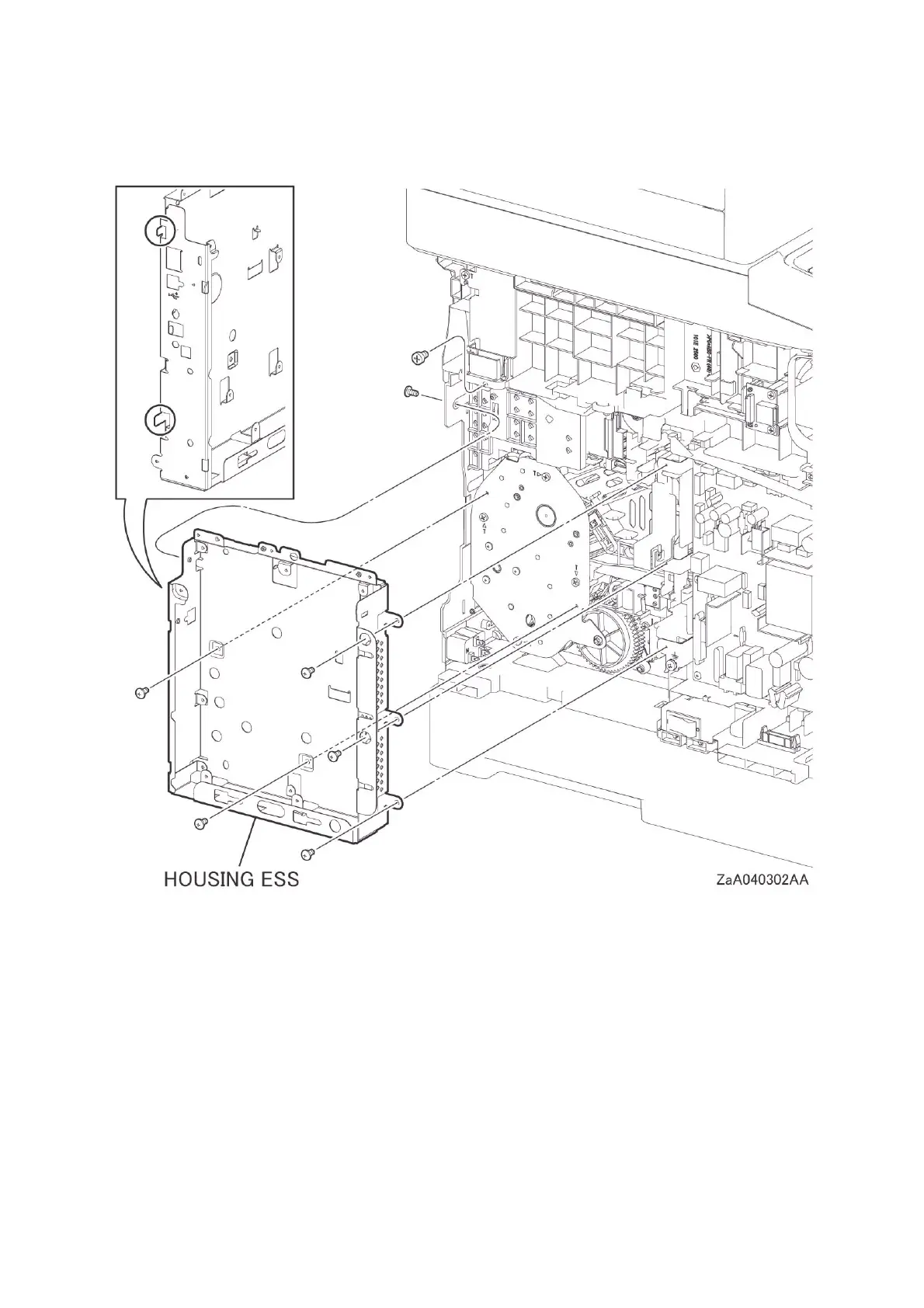

14 Remove the six screws (silver, M3, 6mm) and the one screw (silver, M3) that fix the HOUSING
ESS, release the two tabs from the frame, and then remove the HOUSING ESS from the
printer.S from the printer.
To Next Page
