Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-22

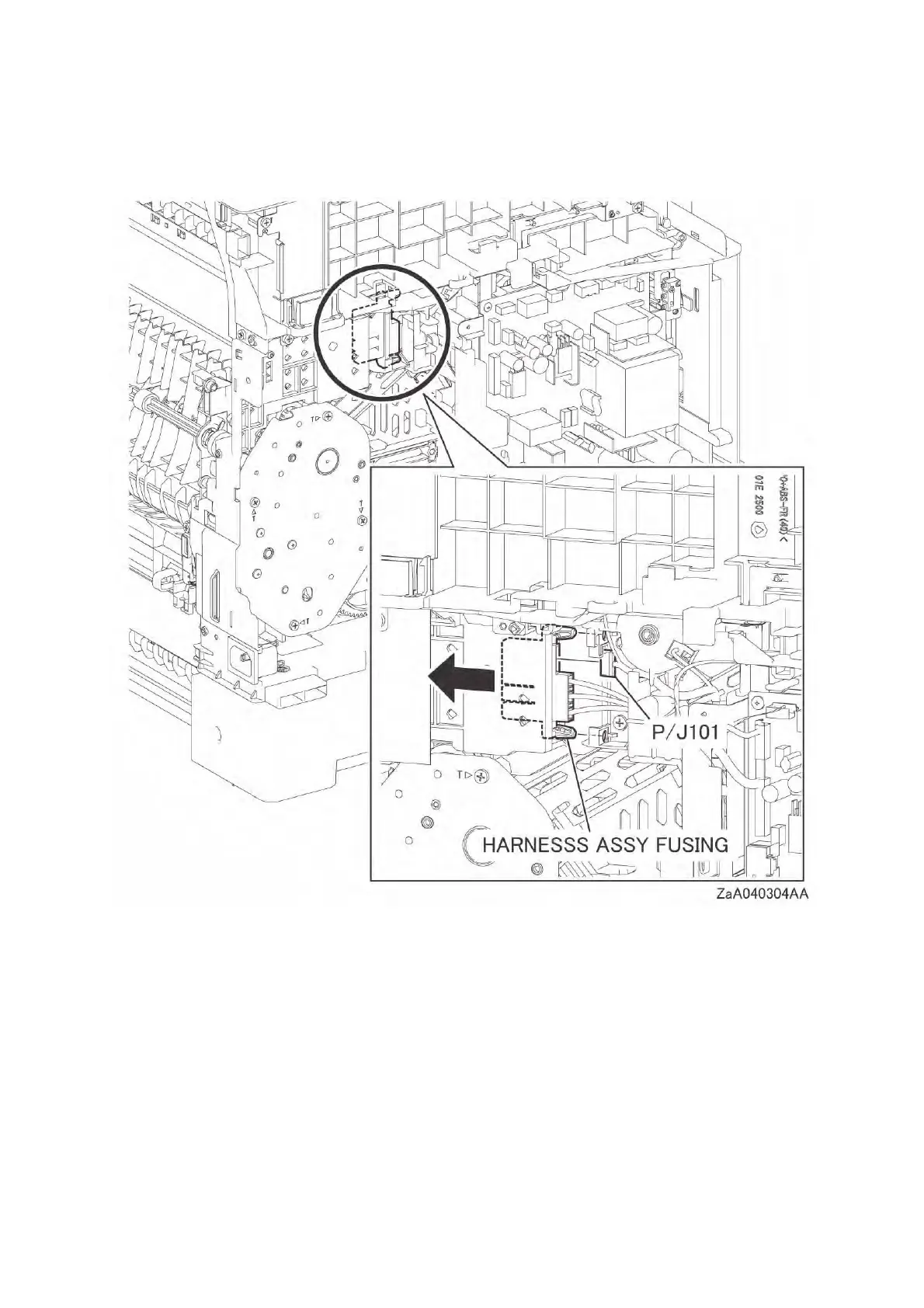

15 Release the hook that fixes the HARNESS ASSY FUSING (PL18.2.9) from above, and then

move the HARNESS ASSY FUSING in the arrow direction.

16 Disengage the connector (P/J101) from the HARNESS ASSY FUSING (PL18.2.9).
