Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-23

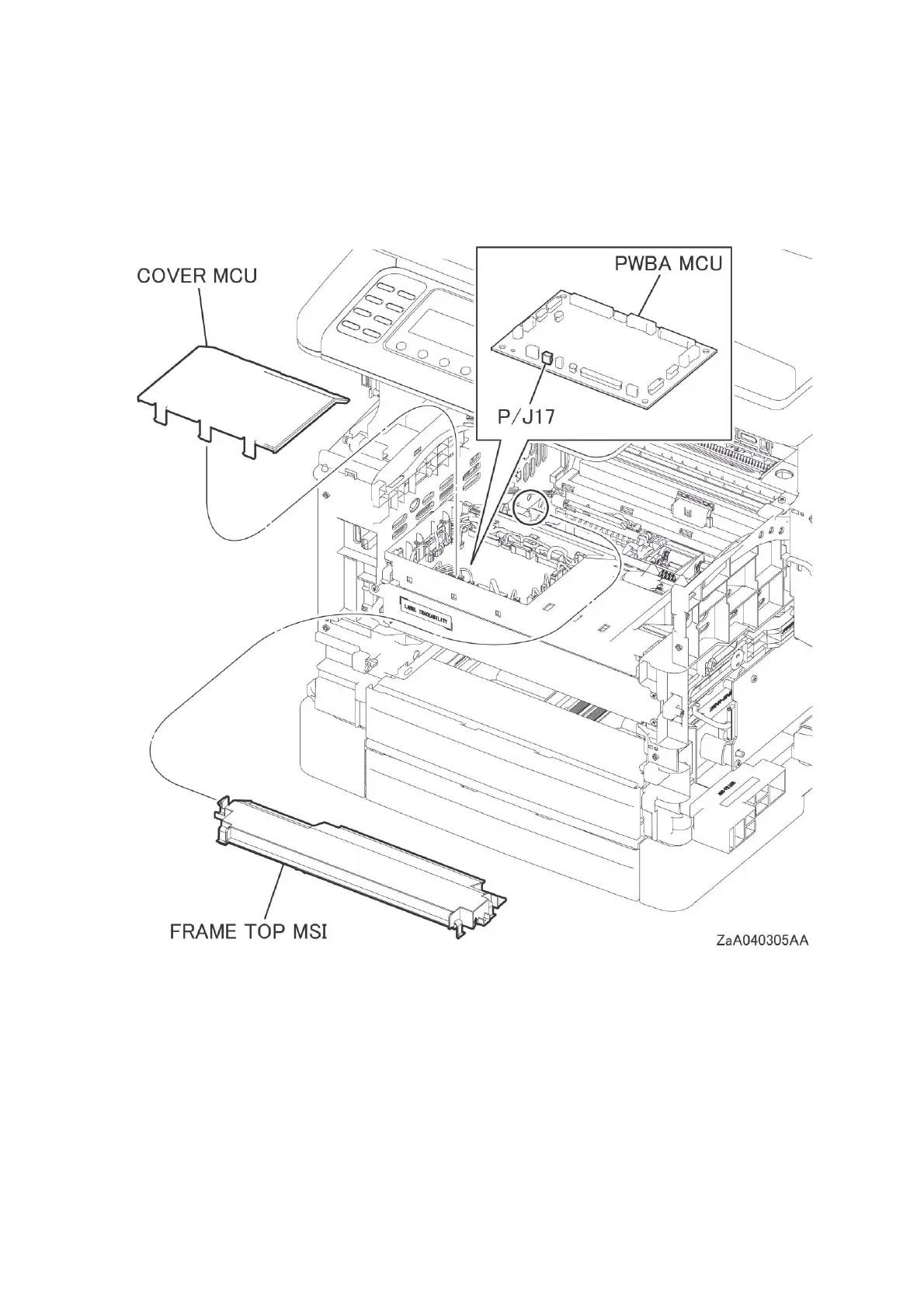

17 Release the four hooks that fix the FRAME TOP MSI (PL13.1.3), and then remove the FRAME
TOP
18 Remove the COVER MCU (PL18.1.5) by releasing the hook, disengage the connector (P/J17)
from the PWBA MCU, and then release the harness of the CLUTCH ASSY EXIT from the har-
ness guide.
