Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-24

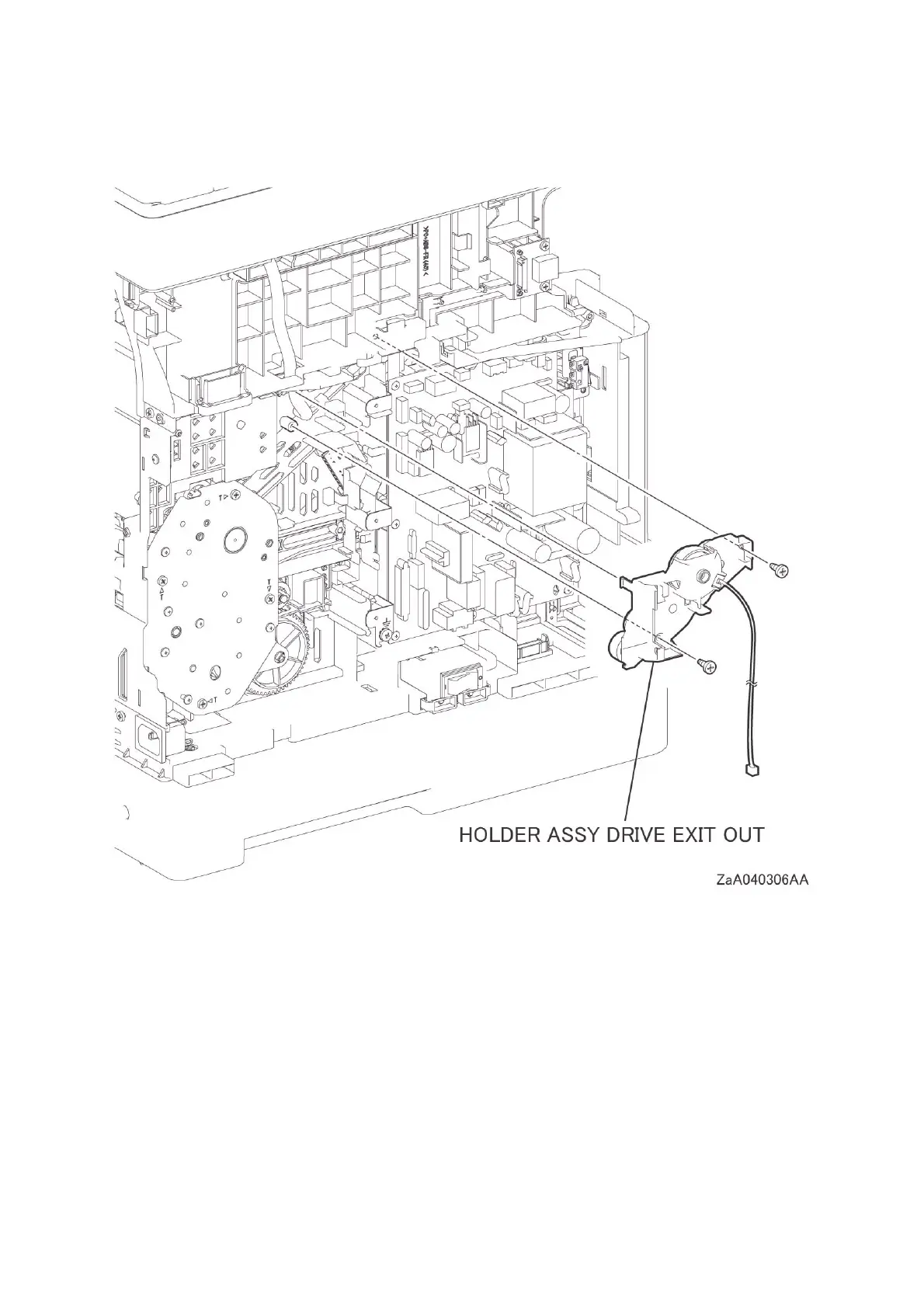

19 Remove the two screws (silver, tapping, 8mm) that fix the HOLDER ASSY DRIVE EXIT OUT,

release the harness from the harness guide installed on the HOLDER ASSY DRIVE EXIT OUT,

and then remove the HOLDER ASSY DRIVE EXIT OUT by releasing the hook.
