Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-38
[Replacement]
NOTE

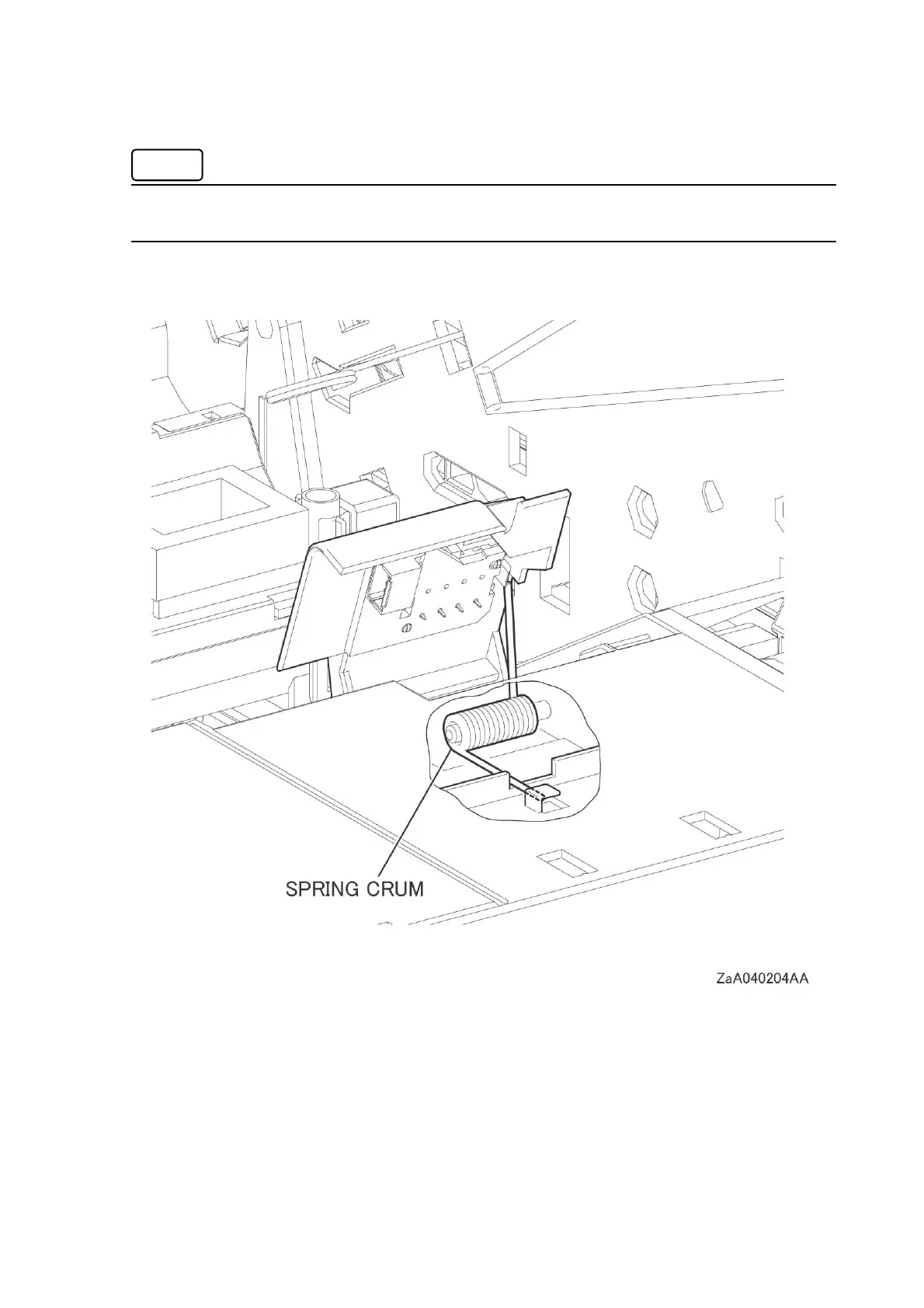

When closing the HOUSING ASSY CRUM, confirm that the SPRING is installed as shown in the fig-
ure.
