Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-41

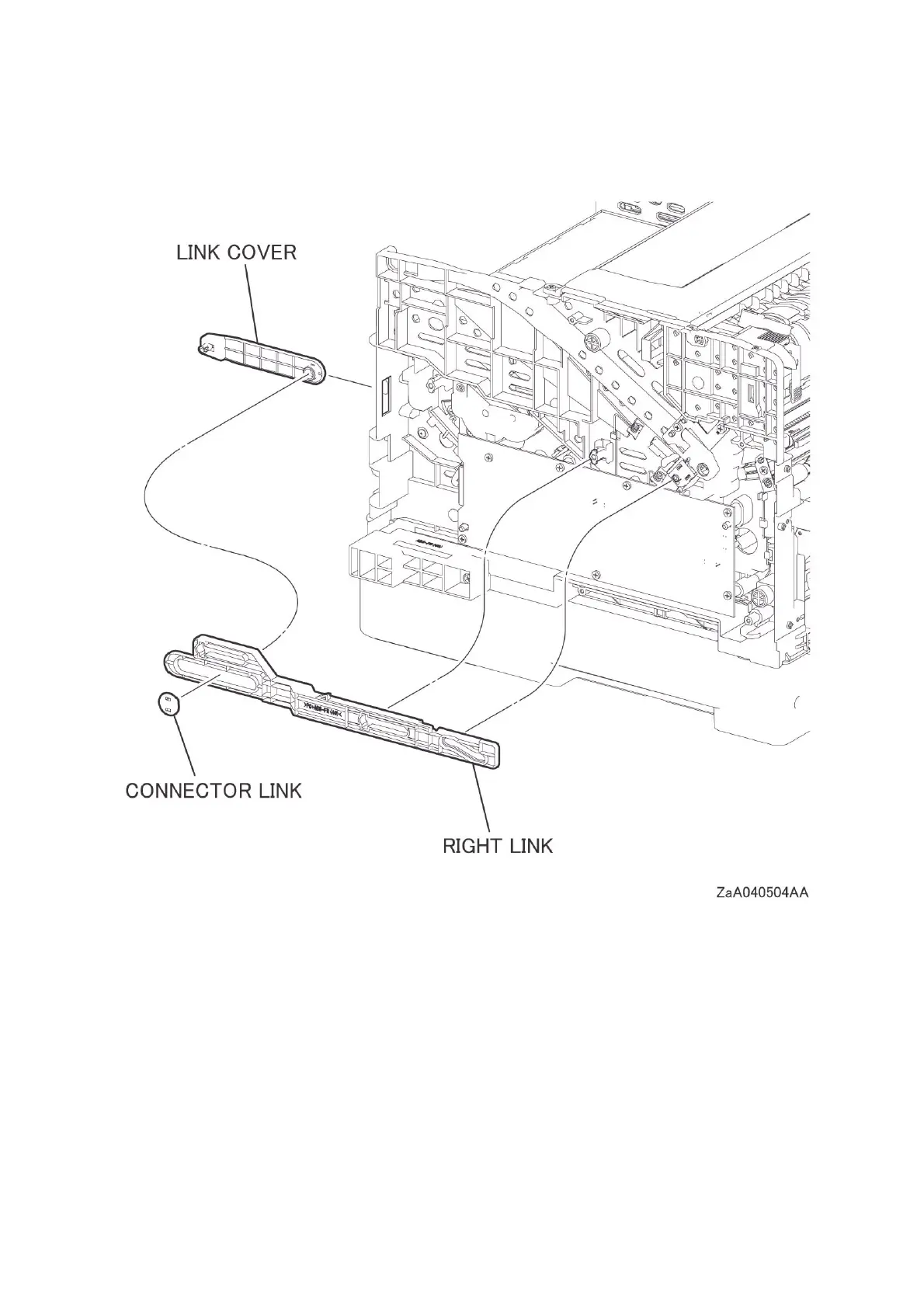

9 From the RIGHT LINK, release the hook on the CONNECTOR LINK that fixes the LINK COVER,
and then remove the LINK COVER.
10 Release the RIGHT LINK from the hook on the printer, and then remove the RIGHT LINK.
To Next Page
