Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-40

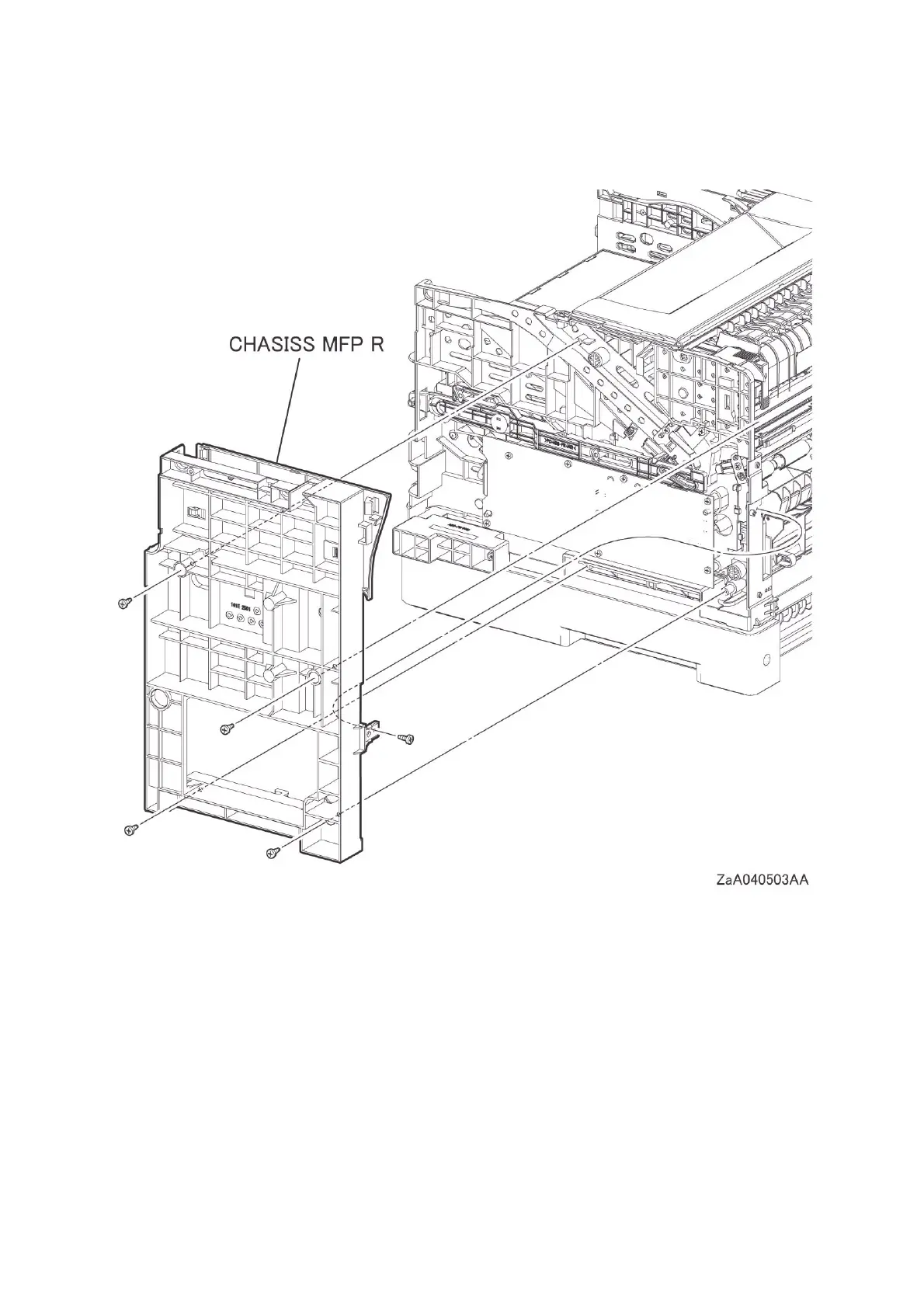

8 Remove the five screws (silver, tapping, 8mm) that fix the CHASISS MFP R, release the hole on
the CHASISS MFP R from the boss on the frame, and then remove the CHASISS MFP R from
the printer.
