Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-92

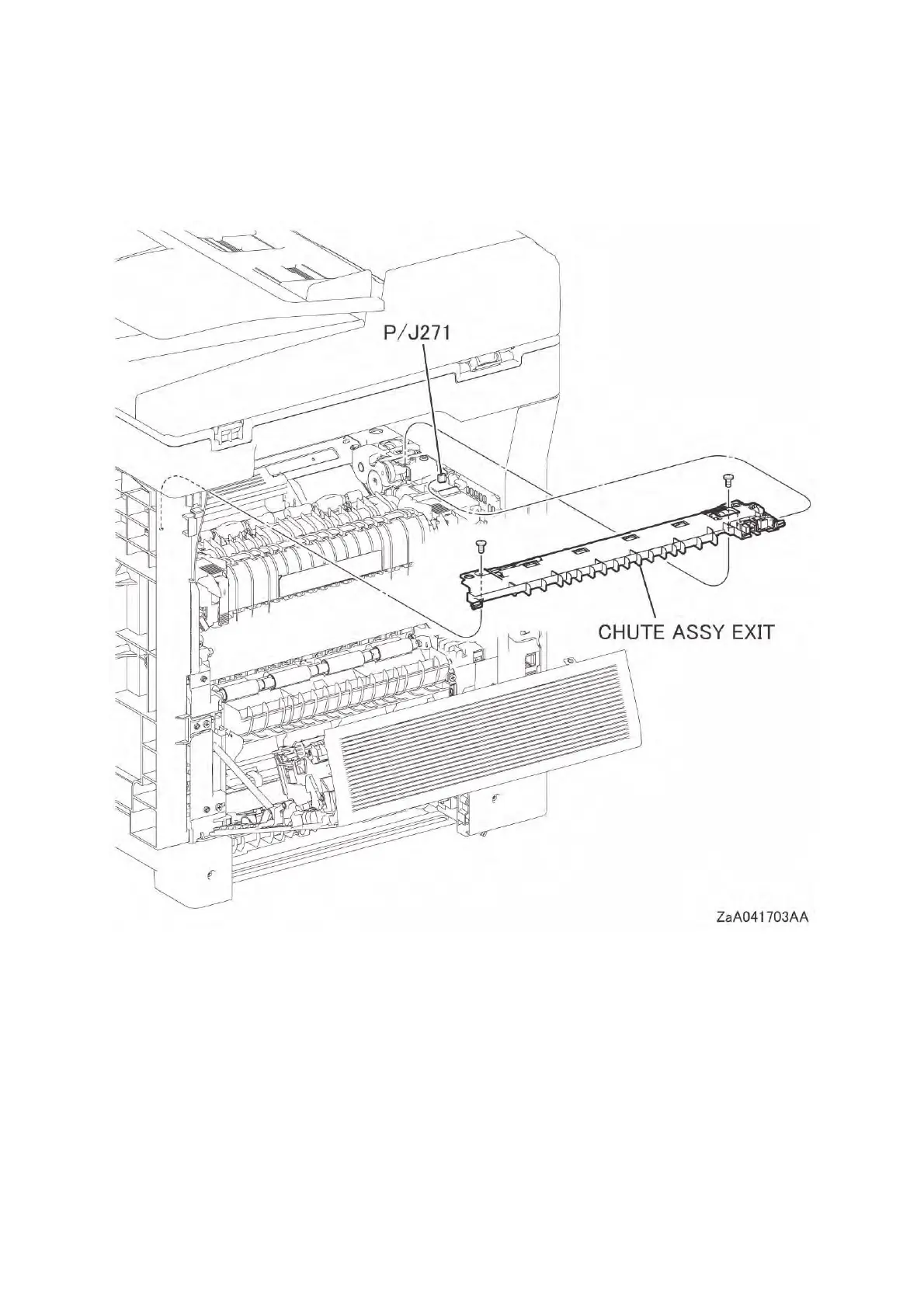

7 Remove the two screws (silver, M3, 6mm) that fix the CHUTE ASSY EXIT, and then release the
boss from the hole.
8 Disengage the connector (P/J271) from the EXIT SENSOR (PL17.1.1), and then remove the
CHUTE ASSY EXIT from the printer.
