Fuji Xerox DocuPrint M355df

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-93
[Replacement]
NOTE

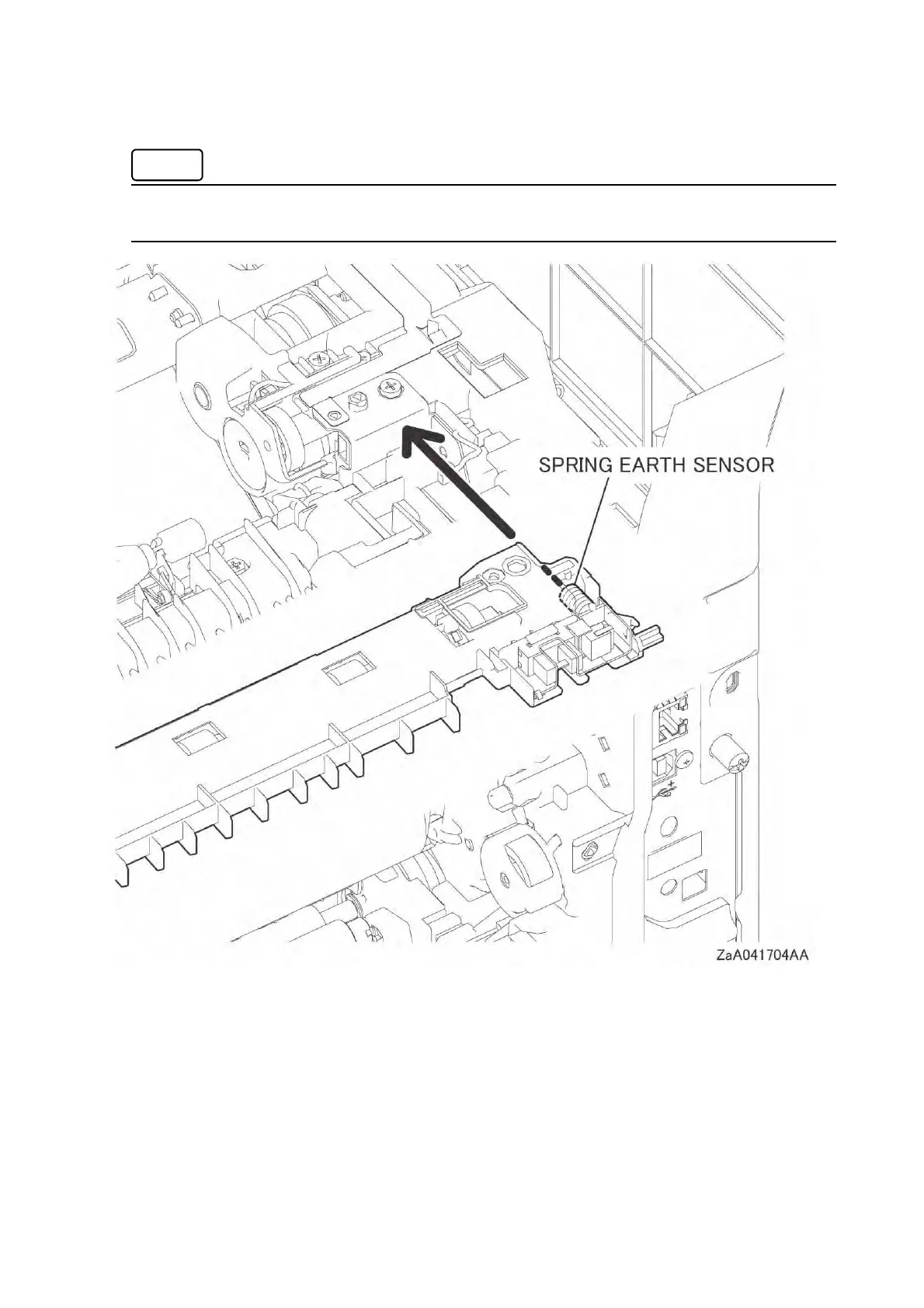

When installing the CHUTE ASSY EXIT, confirm that the end of the SPRING EARTH SENSOR
(PL17.1.3) is in contact with the plate on the frame.
