Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-96

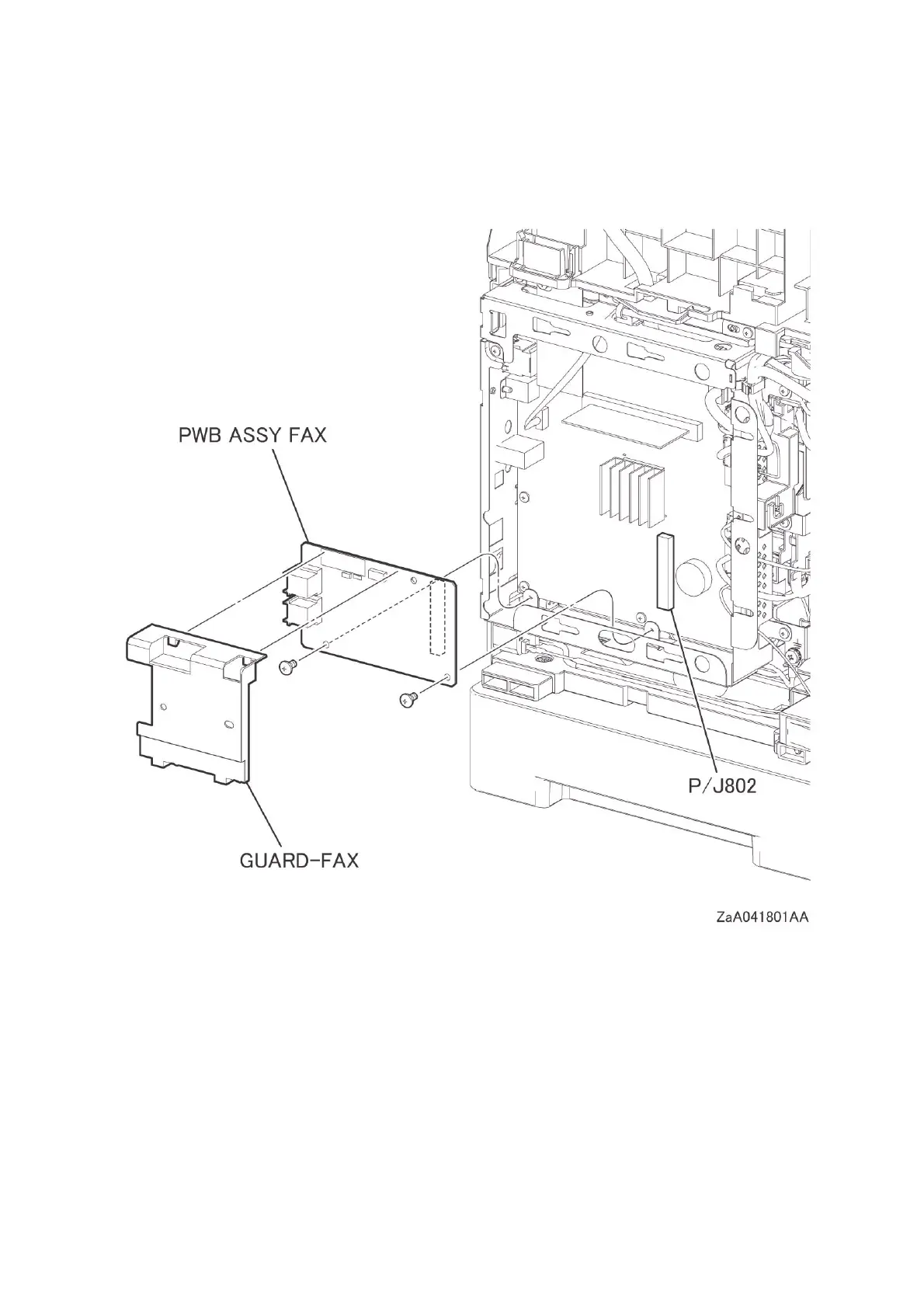

7 Release the two hooks that fix the GUARD-FAX (PL18.1.18), and then remove the GUARD-FAX.
8 Remove the two screws (silver, M3, 6mm) that fix the PWB ASSY FAX (PL18.1.19), disengage
the connector (P/J802) from the PWBA ESS AIO, and then remove the PWB ASSY FAX
(PL18.1.19).
