Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-97

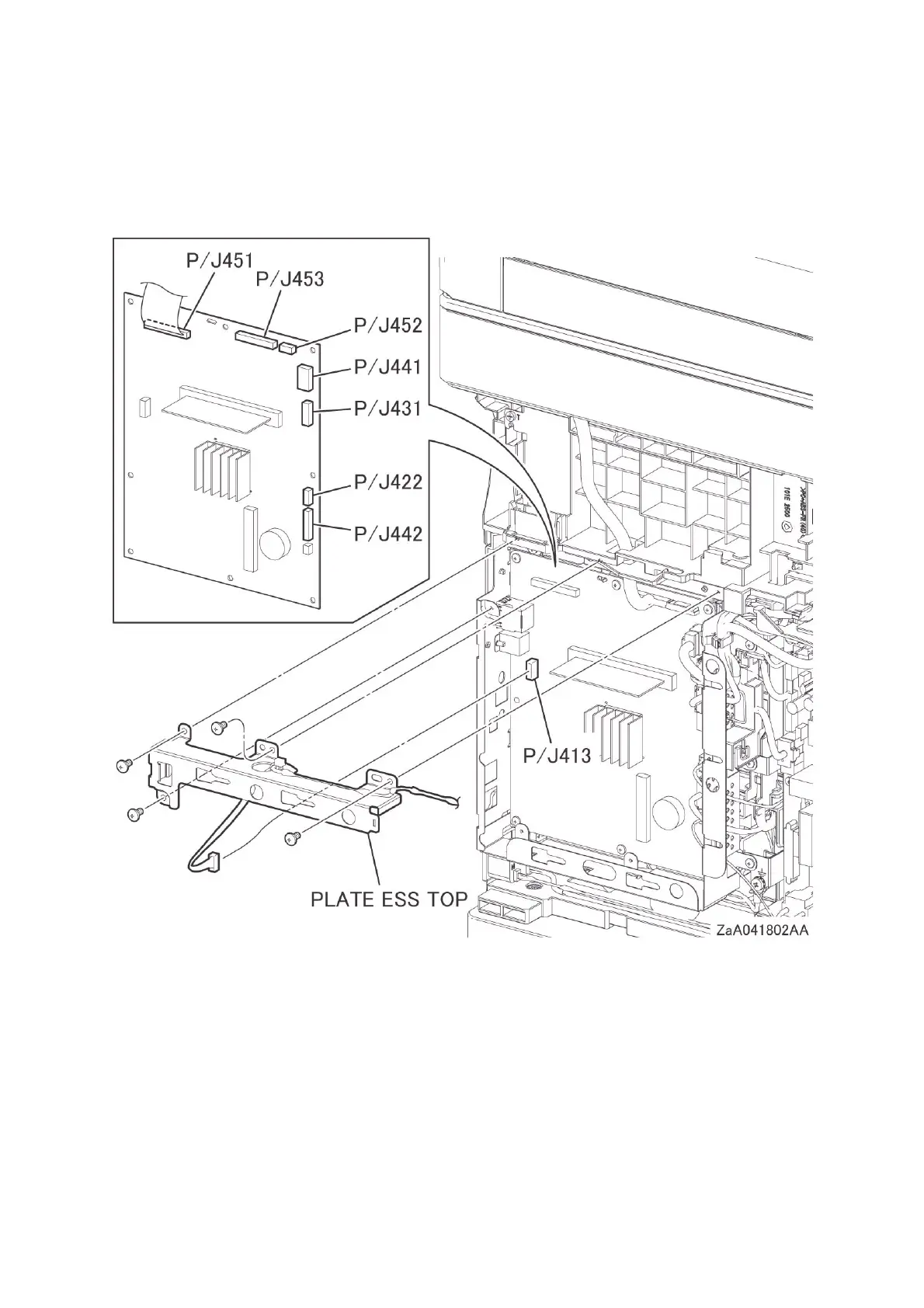

9 Remove the four screws (silver, M3, 6mm) that fix the PLATE ESS TOP, and then remove the
PLATE ESS TOP.
10 Disengage the connector (P/J413) from the PWBA ESS AIO.
11 Disengage all connectors from the PWBA ESS AIO.
