Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-98

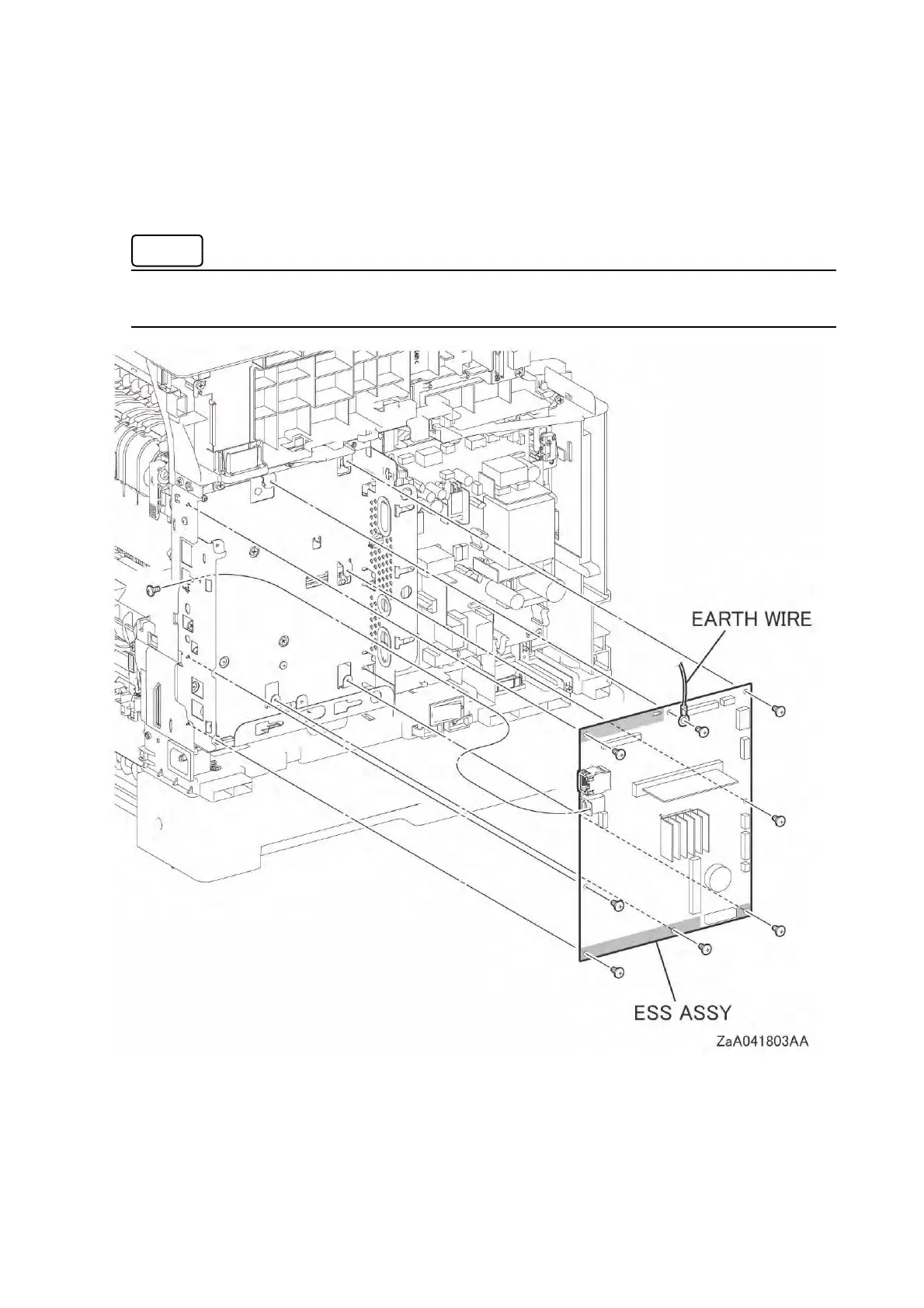

12 Remove the one screw (silver, M3, 6mm) that fixes the EARTH WIRE, and then remove the
EARTH WIRE.
13 Remove the eight screws (silver, M3, 6mm) that fix the PWBA ESS AIO, and then remove the
PWBA ESS AIO.
The positions to hold the PWBA ESS AIO is designated. When removing the PWBA ESS AIO, make
sure to hold the designated positions (the painted parts in the top and bottom of the circuit board).
