Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-102

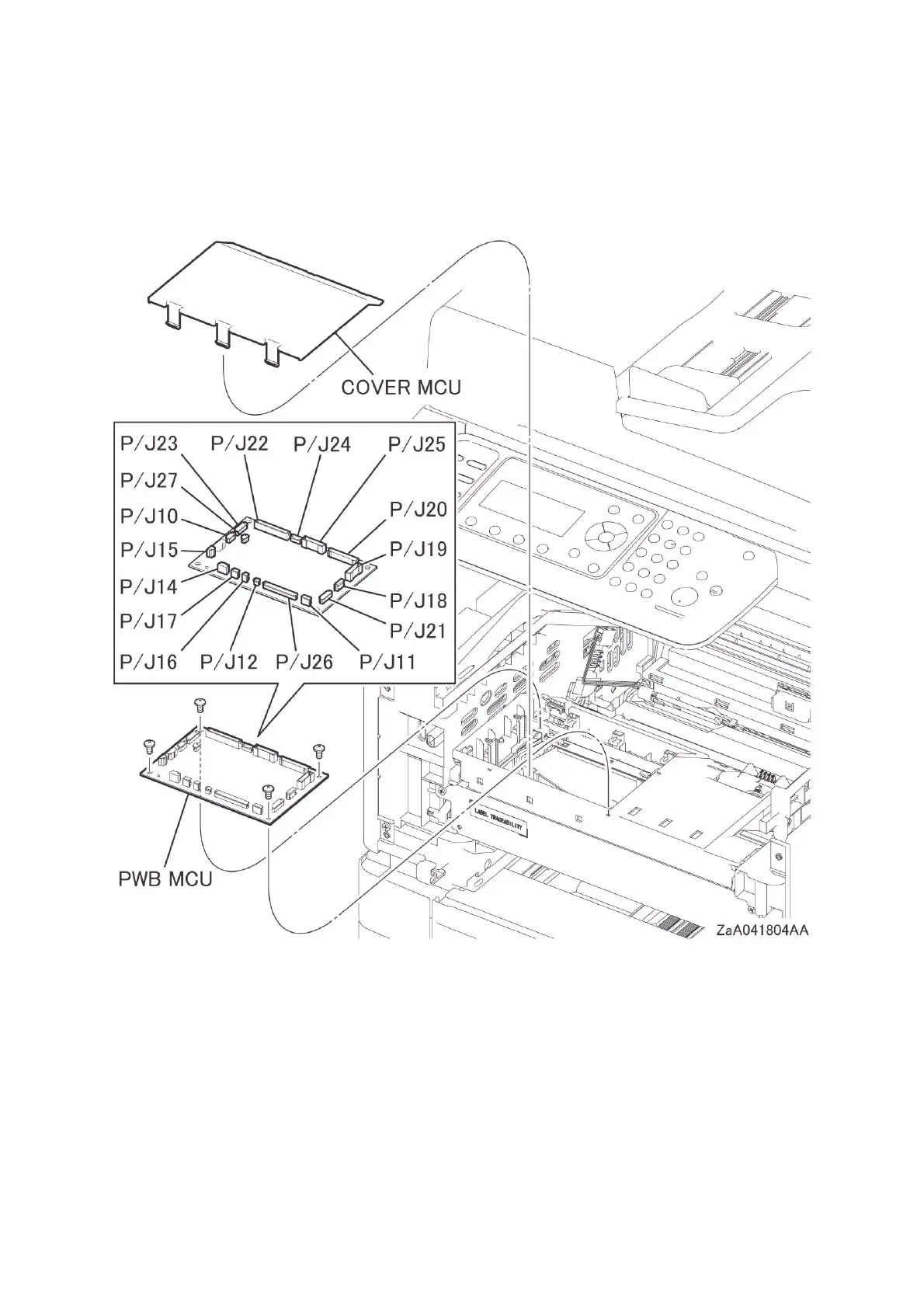

5 Remove the COVER MCU (PL18.1.5) by releasing the hook.
6 Disengage all connectors from the PWB MCU.
7 Remove the four screws (silver, M3, 6mm) that fix the PWB MCU to the printer, and then remove
the PWB MCU.
