Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-105

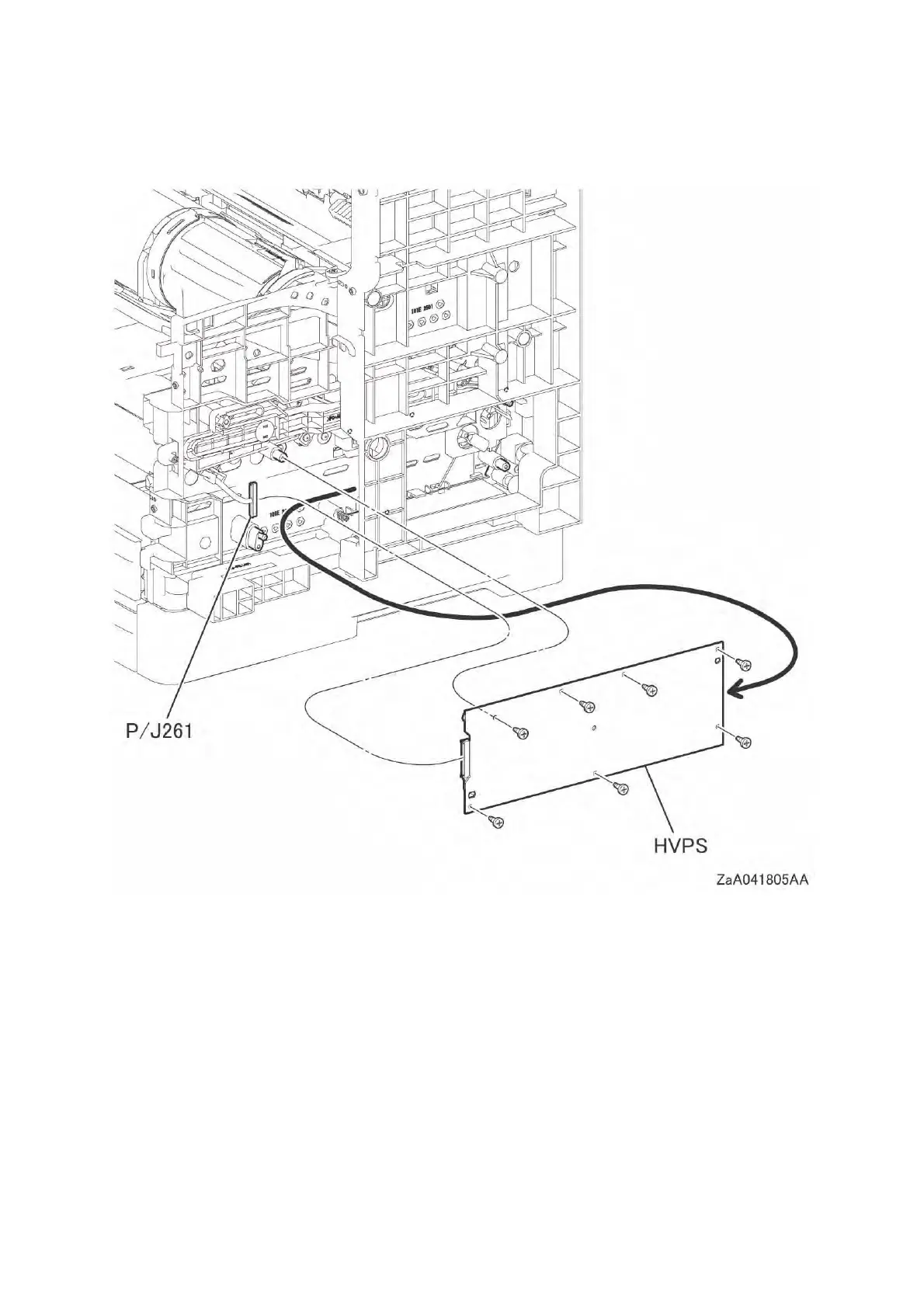

6 Disengage the connector (P/J261) from the HVPS, remove the seven screws (silver, tapping,
8mm) that fix the HVPS, release the two bosses on the frame from the holes on the HVPS, and
then remove the HVPS.
