Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-120
REP19.5 COVER ASSY TOP AIO LOW (PL19.1.21)
[Removal]
1 Open the KIT MSI COVER.

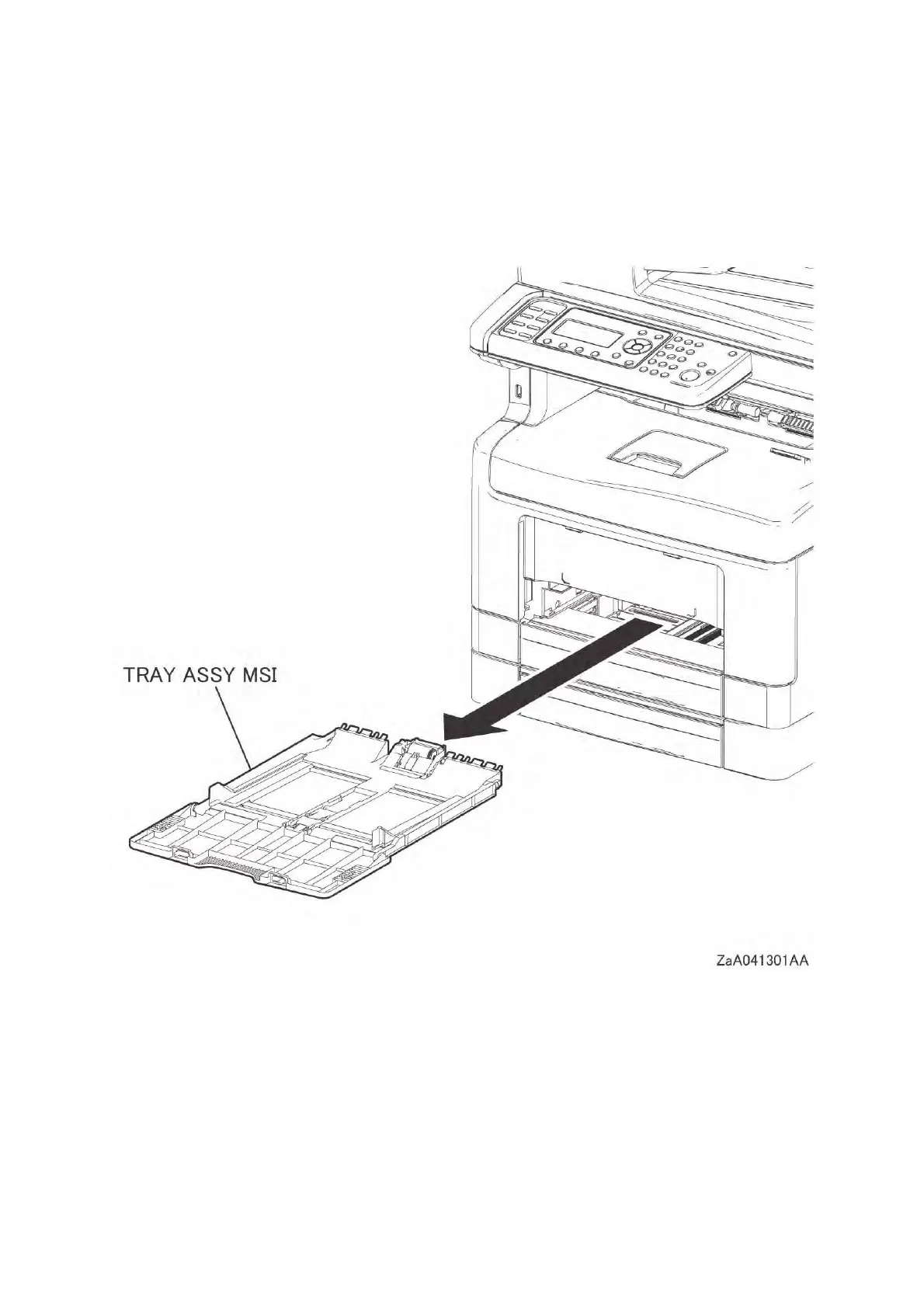

2 Pull the TRAY ASSY MSI out of the printer.
3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)
4 Remove the COVER ASSY WINDOW ESS LOW. (REP19.2)
5 Remove the KIT COVER ASSY REAR AIO. (REP19.7)
6 Remove the COVER SIDE R AIO. (REP19.4)
To Next Page
