Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-131

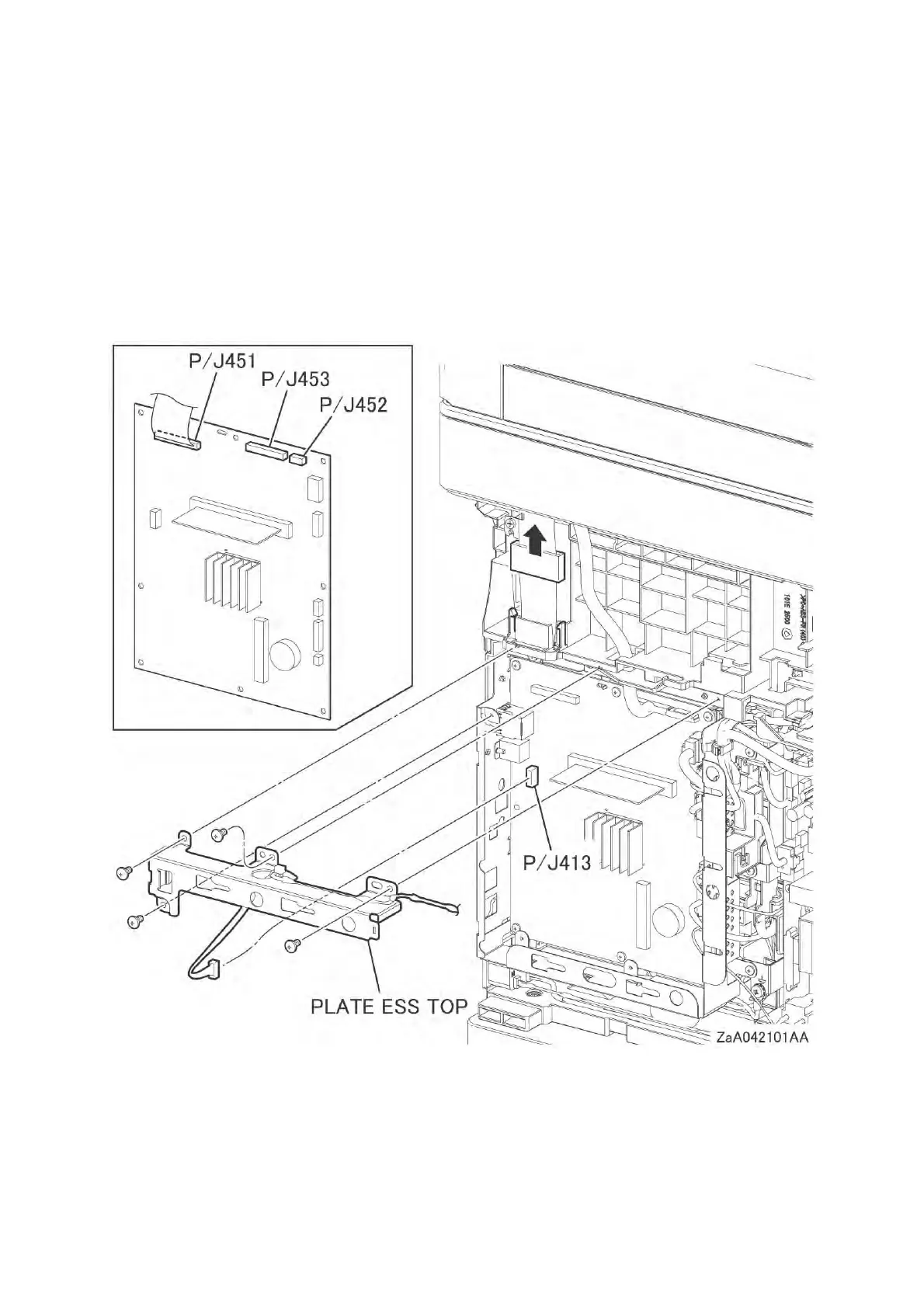

10 Remove the four screws (silver, M3, 6mm) that fix the PLATE ESS TOP, and then remove the
PLATE ESS TOP.
11 Disengage the connector (P/J413) from the PWBA ESS AIO.
12 Disengage the connectors (P/J451, P/J452, P/J453) from the ESS, release the hook that fixes
the core of the flat cable, and then release it from the hole on the frame and from the harness
guide.
13 Remove the one screw (silver, M3, 6mm) that fixes the grounding wire, and then remove the
grounding wire.
To Next Page
