Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-132

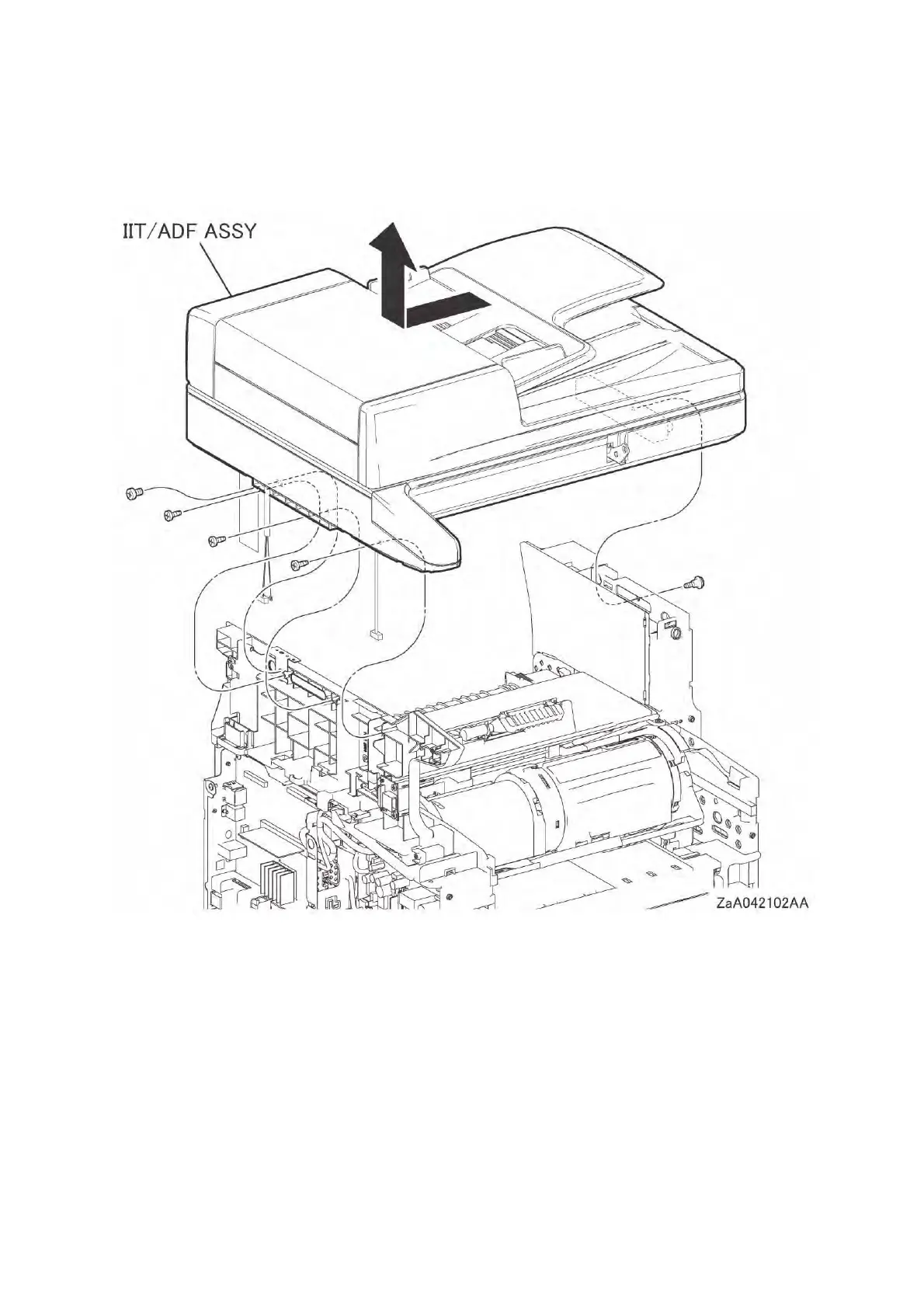

14 Remove the three screws (silver, tapping, 8mm) and one screw (silver, M3) on the left, and the
one screw (silver, hexagon head with flange, stud type, 10mm) on the right that fix the IIT / DADF
ASSY, release the four bosses on the IIT / DADF ASSY from the holes, and then remove the IIT /
DADFASSY.
