Fujitsu PRIMERGY TX2550 M4 - Page 226

226 Upgrade and Maintenance Manual TX2550 M4
Hard disk drive (HDD) / solid state drive (SSD)

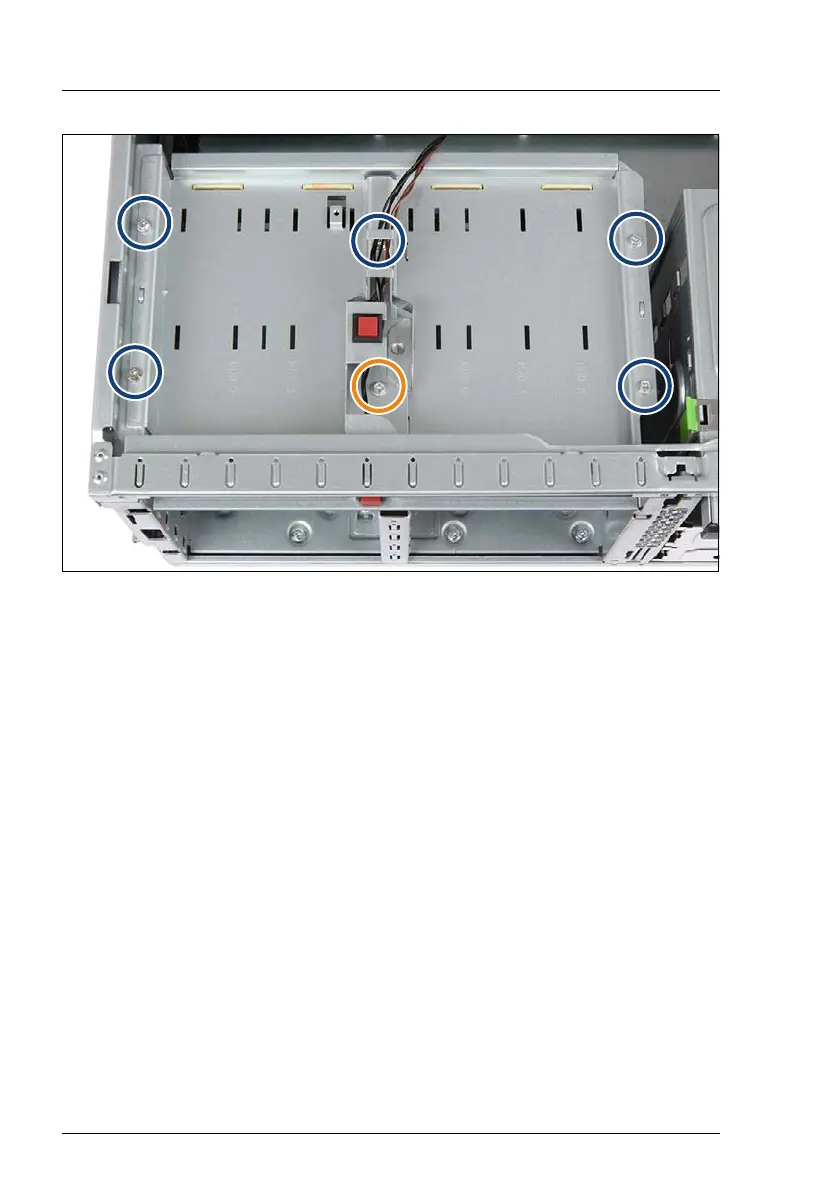

Figure 140: Removing the 3.5-inch HDD bay top cover (A)
Ê Remove five screws from the 3.5-inch HDD bay top cover (see blue circles).
Ê Remove one screw from the intrusion switch holder (see orange circle).
