TX2550 M4 Upgrade and Maintenance Manual 227
Hard disk drive (HDD) / solid state drive (SSD)

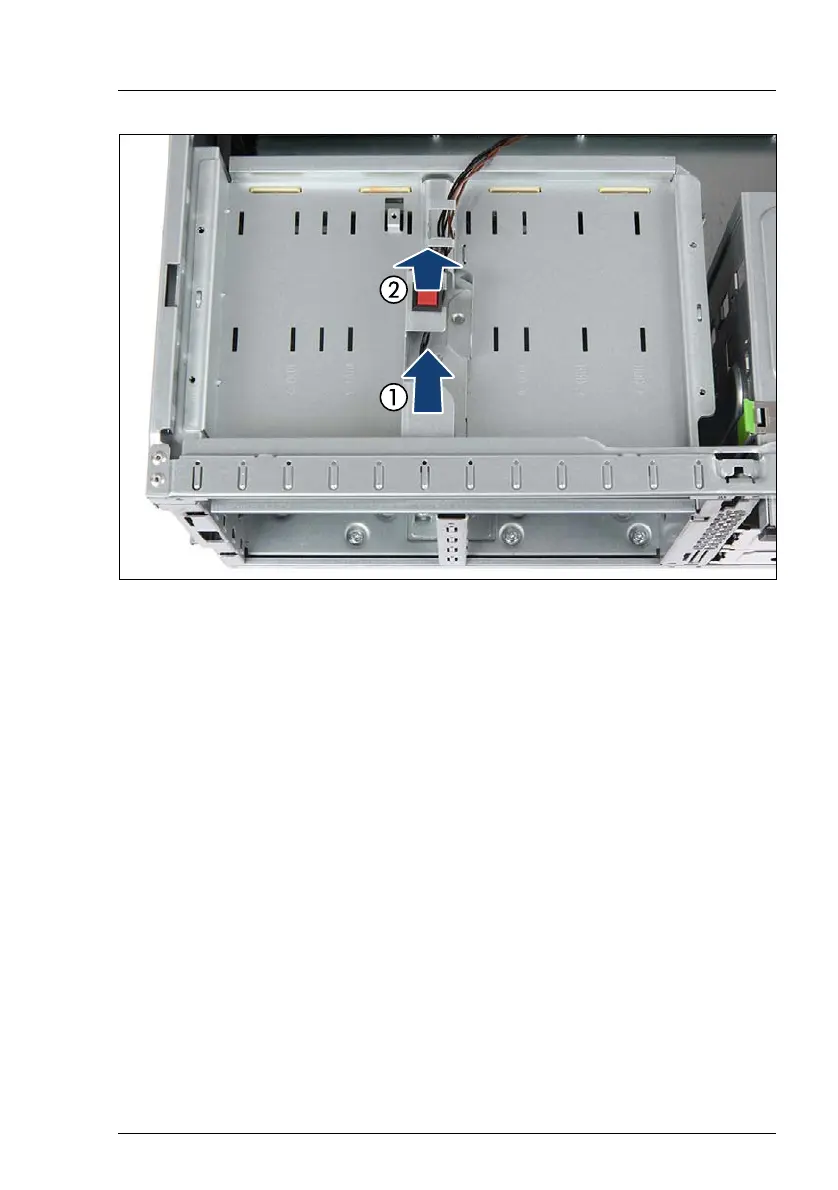

Figure 141: Removing the 3.5-inch HDD bay top cover (B)
Ê Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê Remove the intrusion switch holder (2) and set aside.
Ê Leave the intrusion switch cable connected to the system board.
