228 Upgrade and Maintenance Manual TX2550 M4
Hard disk drive (HDD) / solid state drive (SSD)

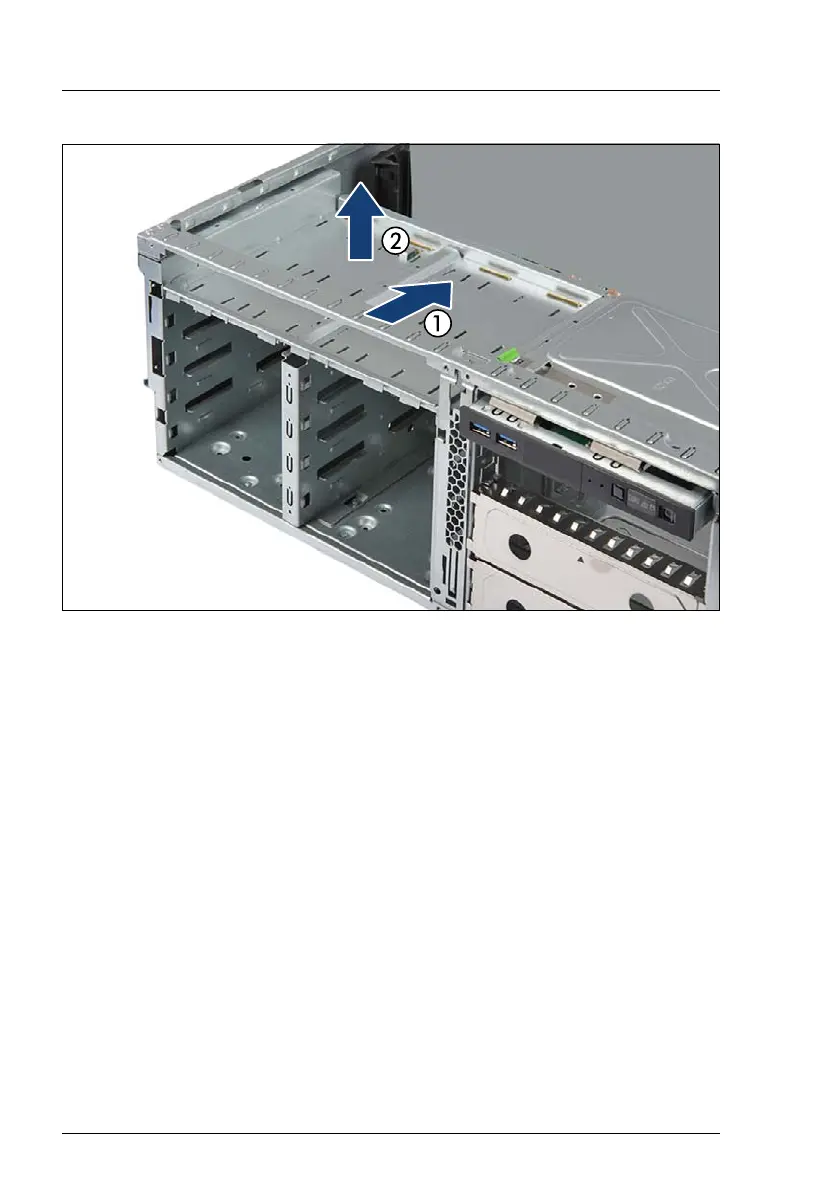

Figure 142: Removing the 3.5-inch HDD bay top cover (C)
Ê Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
SAS backplane below (1).
Ê Remove the 3.5-inch HDD bay top cover from the chassis (2).
