5.4 Advanced Settings for Each Channel
102

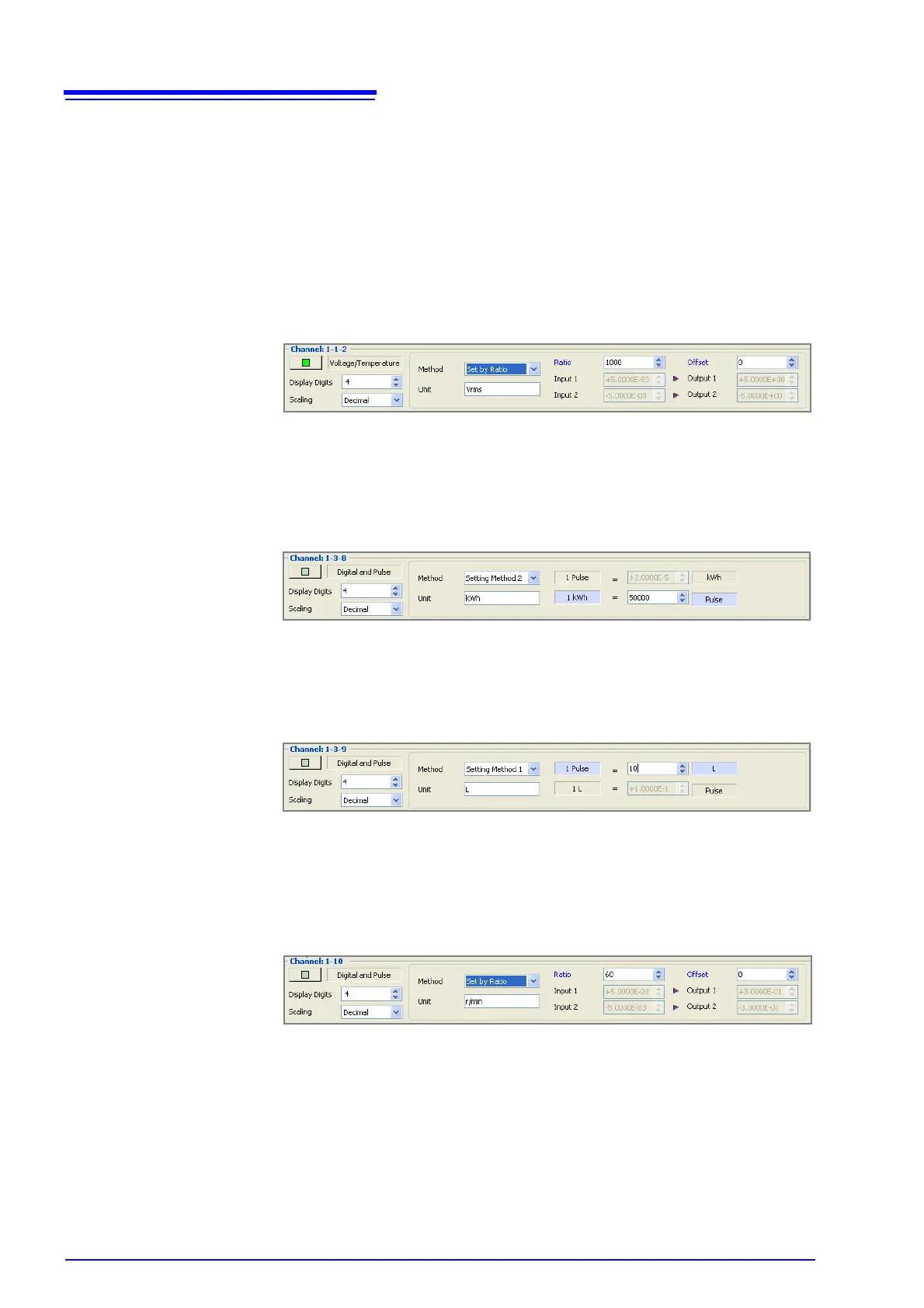

Scaling Examples:
• In the case of the 8948 Voltage/Temp Unit or 8949 Universal Unit:
Use Hioki's 9322 DIFFERENTIAL PROBE to measure the effective value of
the voltage of a commercial power supply
Set "Set by Ratio"
Set the ratio to 1000 (ratio of the 9322: 1/1000)
Set the unit to [Vrms]
• In the case of the 8996 Digital/Pulse Unit (totalization measurement):
Connect a 50,000 pulse/kWh supply meter for measurement
Set setting method 2
Set the unit to [kWh]
1 [kWh] = [50000] pulses
Connect a 10 liter/pulse flowmeter for measurement
Set setting method 1
Set the unit to [L]
1 pulse = [10] [L]
• In the case of the 8996 Digital/Pulse Unit (rotation rate measurement):
Measure using rotation rate per minute r/min (rpm)
Set "Set by Ratio"
Set the ratio to 60 (Reference: If per hour, the ratio is 3600)
Set the unit to [r/min]
