5.4 Advanced Settings for Each Channel
101
5
Chapter 5 Setting Measurement Conditions

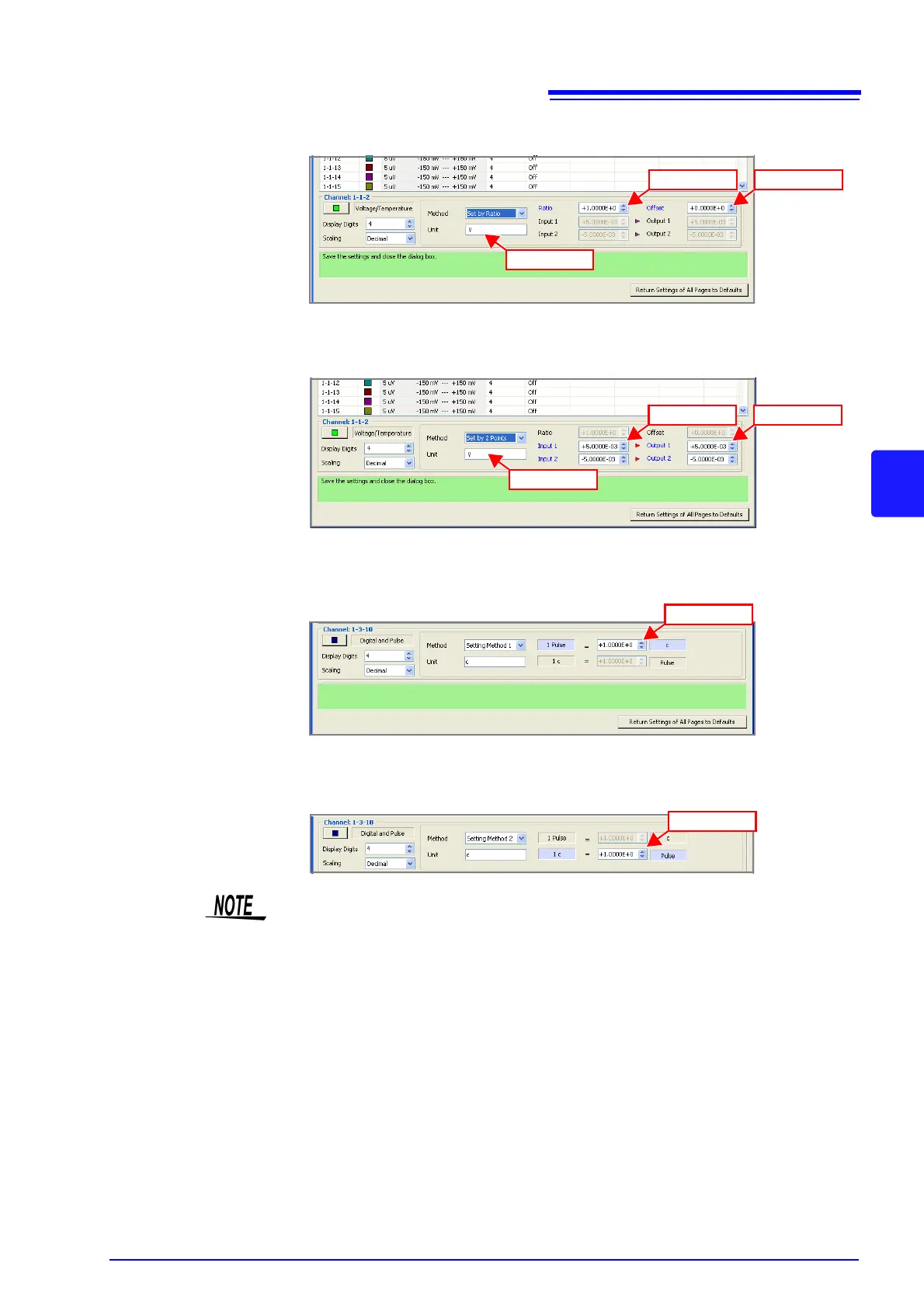

4. If the setting method is "Set by Ratio", set the unit, ratio, and offset.
5. If the setting method is "Set by 2 Points", set the unit, inputs 1 and 2, and
outputs 1 and 2.
6. If the setting method is "Setting Method 1," set the physical quantity per
pulse.
7. If the setting method is "Setting Method 2," set the number of pulses per
fundamental unit.
• The values of "Set by Ratio" and "Set by 2 Points" are linked so that the set-
tings become the same.
• The values of "Setting Method 1" and "Setting Method 2" are linked so that the
settings become the same.
• Up to 7 byte characters can be entered for the unit. Double byte characters are
displayed as "∗" in the display area of the instrument.
