5.1 Registering Loggers in Logger Utility
71
5
Chapter 5 Setting Measurement Conditions
Connecting one PC and one instrument with a 9642 LAN Cable
Network Addresses : 192.168.1.0/24 (Private IP addresses)
Subnet Mask : 255.255.255.0
PC (The settings are made manually)
IP Address : 192.168.1.1
For a network as shown above, set the PC and the instrument's Comm screen
as shown next.
When connecting one PC and one instrument by the conversion connector of the
9642 LAN CABLE, the IP address can be specified arbitrarily, but there is no
problem with using a private IP address.
Set the instrument as shown below, so that every instrument has a unique host
name and IP address.
* If you set an IP address, it does not matter if a host name is not entered.
LAN Connection Examples
IP Address : 192.168.1.1
Subnet Mask : 255.255.255.0
The network settings on the PC are made
in the [Network] dialog box. To get to this
dialog box, double-click the [Network]
icon in [Control Panels].
Host Name : LOGGER
*
DHCP : OFF
IP Address : 192.168.1.2
Subnet Mask : 255.255.255.0
Port Number : 880X
Gateway : OFF

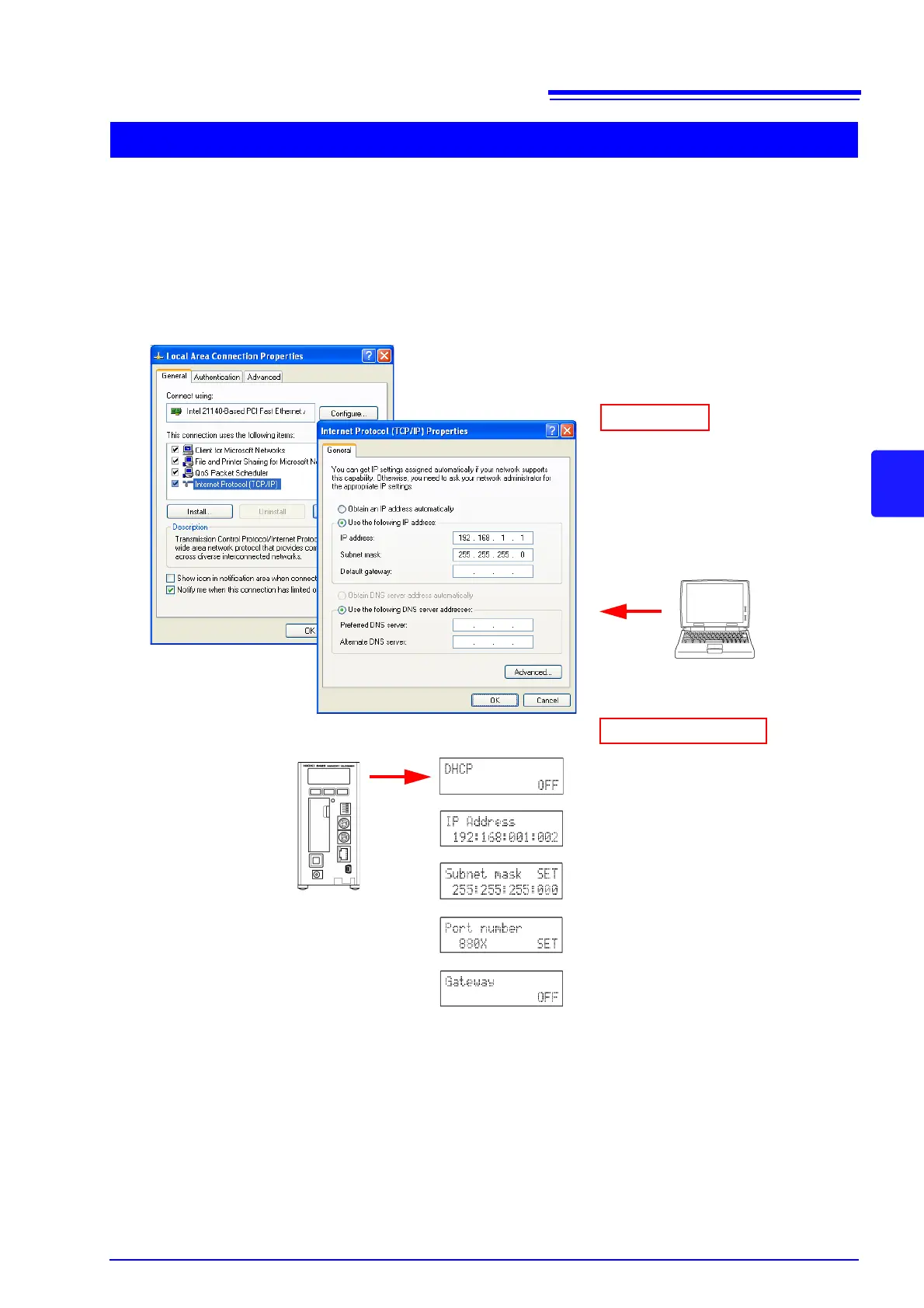

PC Settings
Instrument Settings
To Next Page
