Huawei Quidway S6500 Series User Manual

Operation Manual - Multicast Protocol
Quidway S6500 Series Ethernet Switches Chapter 6
PIM Configuration
Huawei Technologies Proprietary
6-14
Operation Command
Enable PIM debugging
debugging pim common { all | event | packet |
timer }
Disable PIM debugging
undo debugging pim common { all | event |
packet | timer }
Enable PIM-DM debugging
debugging pim dm { alert | all | mbr | mrt | timer |
warning | { recv | send } { all | assert | graft |
graft-ack | join | prune } }
Disable PIM-DM debugging
undo debugging pim dm { alert | all | mbr | mrt |
timer | warning | { recv | send } { all | assert |
graft | graft-ack | join | prune } }
Enable PIM-SM debugging
debugging pim sm { all | verbose | mrt | warning
| mbr {alert | fresh } | timer { assert | bsr | crpadv
| jp | jpdelay | mrt | probe | spt } | { recv | send }
{ assert | bootstrap | crpadv | reg | regstop | jp } }
Disable PIM-SM debugging
undo debugging pim sm { all | verbose | mrt |
warning | mbr {alert | fresh } | timer { assert | bsr
| crpadv | jp | jpdelay | mrt | probe | spt } | { recv |
send } { assert | bootstrap | crpadv | reg |
regstop | jp } }
6.5 PIM Configuration Examples
6.5.1 PIM-DM Configuration Example
I. Networking requirement
Lanswitch 1 is connected to the multicast source through vlan-interface 10, to
Lanswitch 2 through vlan-interface 11, to Lanswitch 3 through vlan-interface 12. Run
PIM-DM protocol to achieve the multicast among Receiver 1, Receiver 2 and the
multicast source.
II. Networking diagram
Lanswitch3
Lanswitch1
RECEIVER 1
Lanswitch2
VLAN10 VLAN11
VLAN12
Multicast
Source
RECEIVER 2
VLAN20
VLAN30
Lanswitch3
Lanswitch1
RECEIVER 1
Lanswitch2
VLAN10 VLAN11
VLAN12
Multicast
Source
RECEIVER 2
VLAN20
VLAN30

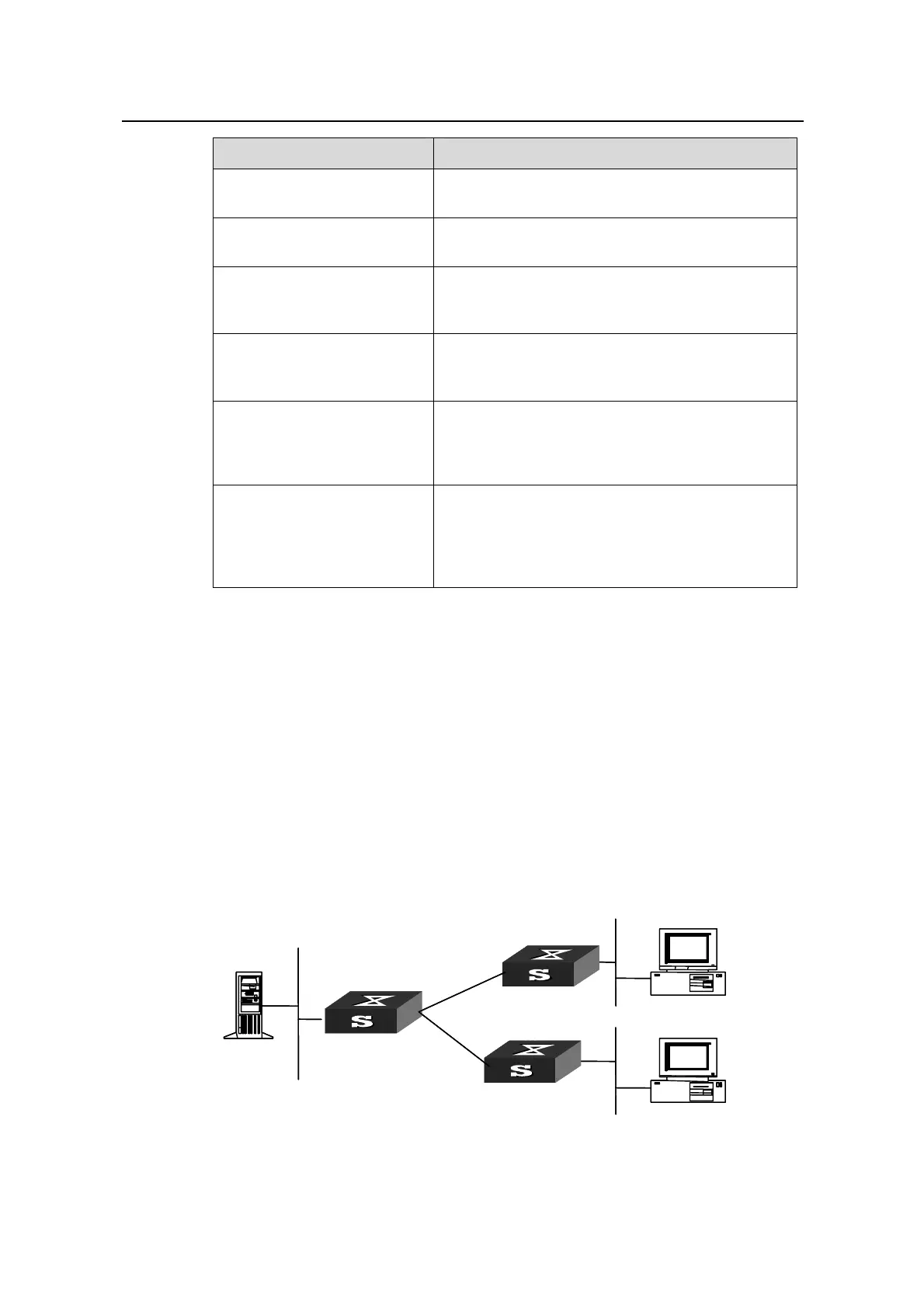

Figure 6-3 Networking diagram for PIM-DM configuration
