III. Configuration procedure
# Define a mirroring group, with monitoring port being Ethernet3/0/8.
[Quidway] mirroring-group 1 inbound ethernet3/0/1 ethernet3/0/2 mirrored-to
ethernet3/0/8
[Quidway] mirroring-group 2 outbound ethernet3/0/1 ethernet3/0/2 mirrored-to
ethernet3/0/8
2.3.3 Priority Relabeling Configuration Example
I. Networking requirement
Impose ef labels on the packet sent 8:00~18:00 each day from PC1 (IP 1.0.0.2), as
priority labeling reference for the upper-layer device.

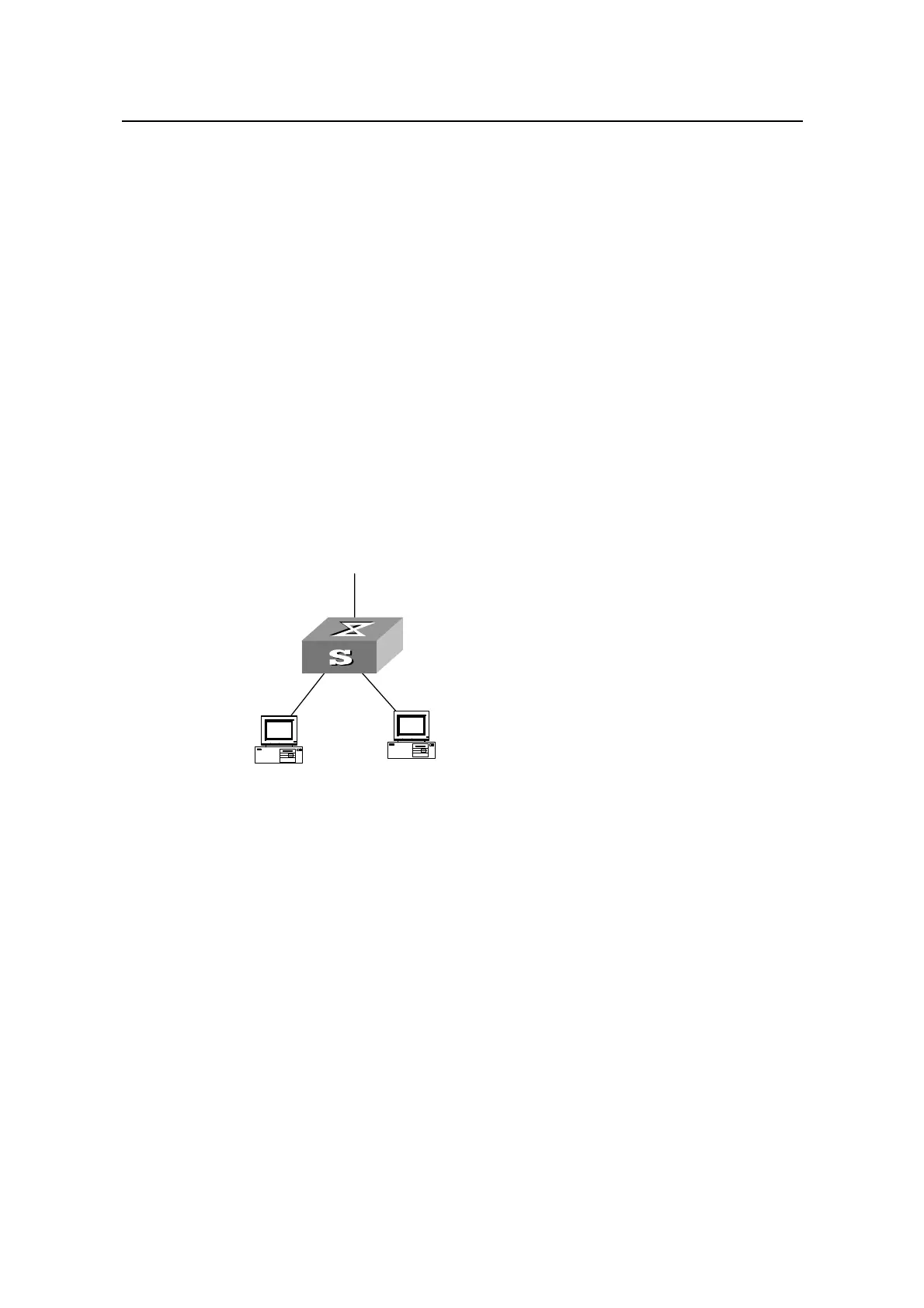

II. Networking diagram
GE7/0/8
GE7/0/1
GE3/0/2
VLAN2,
1.0.0.1/8
VLAN3,
2.0.0.1/8
PC1
PC2
Figure 2-4 QoS configuration example
III. Configuration procedure
1) Define the time range.
# Define the time range 8:00~18:00.
[Quidway] time-range huawei 8:00 to 18:00 daily
2) Define traffic rules for PC packets.
# Enter the number-based basic ACL and select the ACL 2000.
[Quidway] acl number 2000
# Define traffic classification rules for PC1 packets.
[Quidway-acl-basic-2000] rule 0 permit source 1.0.0.2 0 time-range huawei
