# Limit average outbound traffic of the wage server at 20 Mbps and label over-threshold
packets with priority level 4.
[Quidway-qosb-GigabitEthernet7/0/1] traffic-limit inbound ip-group traffic-of-payserver
20 exceed remark-dscp 4
# Limit inbound traffic of the wage server from the port GigabitEthernet7/0/1 at 20
Mbps.
[Quidway-qosb-GigabitEthernet7/0/1] line-rate 20
2.3.2 Port Mirroring Configuration Example
I. Networking requirement
Use one server to monitor the packets of two PCs. One PC is accessed from the port
E3/0/1 and the other from the port E3/0/2. The server is connected to the port
Ethernet3/0/8.
 Note:
z The monitoring port and the monitored ports must be on the same interface unit.
z For a non-48-port interface unit, only one mirroring group can be configured in one
direction. For example, you can only configure one mirroring group for the inbound
packets on one interface unit. Failure will be prompted if you configure a second.
The same restriction applies to outbound packets.
z For a 48-port interface unit, the monitoring port and the monitored port must all be at
the ports 1~24 or the ports 25~48, at which only one mirroring group can be
configured in one direction.
II. Networking diagram
Server
E3/0/8
E3/0/2
E3/0/1
E3/0/8

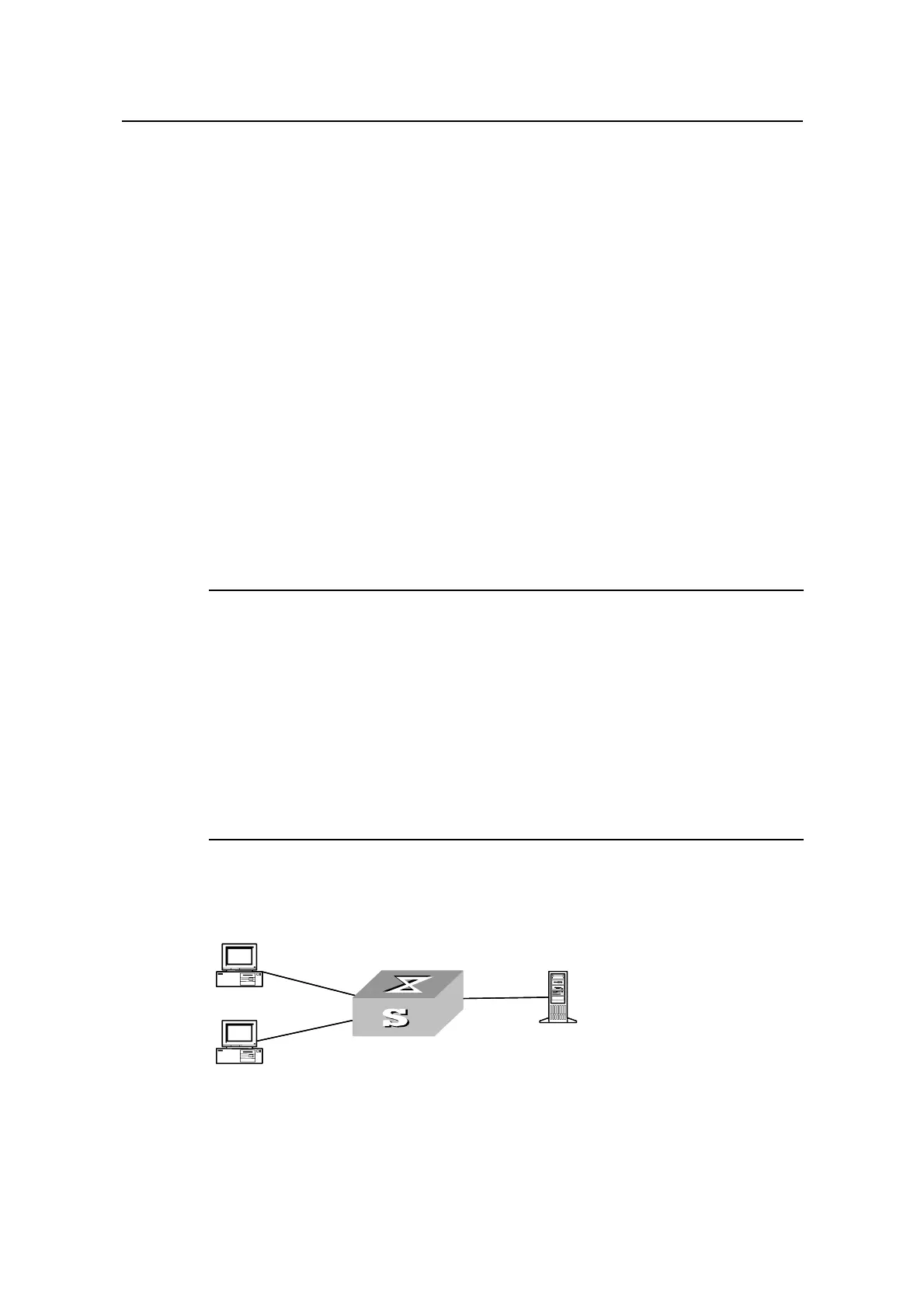

Figure 2-3 QoS configuration example
