3.3.2 Configuration Example
I. Network requirements
z Salience III series engines works with the S6503 chassis without the XGbus
silkscreen.
z Set the switch type to S6503.
II. Network diagram
Console port
RS-232 Serial port
Console cable

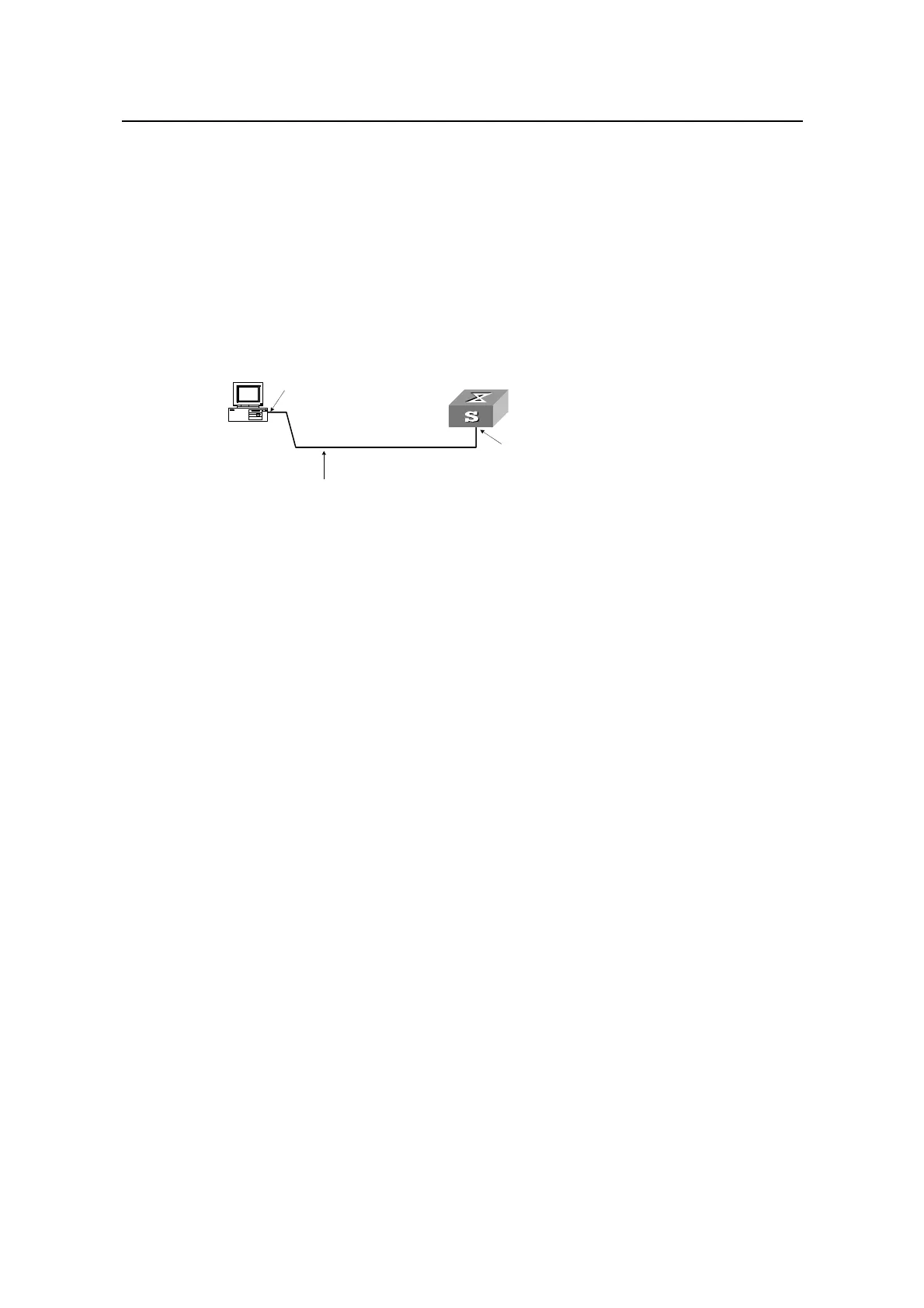

Figure 3-1 Network diagram for setting switch type
III. Configuration procedure
1) Enter system view.
<Quidway> system-view
[Quidway]
2) Set the switch type to S6503.
[Quidway] product 6503
3) Return to user view.
[Quidway] quit
<Quidway>
4) Reboot the switch.
<Quidway> reboot
3.4 Configuring Pause Frame Protection Mechanism
Pause frames, which can be utilized as packets to attack a network, are used in traffic
controlling. A switch that has pause frame protection mechanism enabled discards the
detected pause frames that are utilized to attack the network it resides and logs these
attacks in the logbuffer. If the switch experiences successive pause frame attacks, it
sends messages to the console to warn users.
3.4.1 Pause Frame Protection Mechanism Configuration Task
The following describes the configuration tasks of Pause Frame protection mechanism.
