Quidway S6500 Series Ethernet Switches Chapter 2 QoS Configuration
Huawei Technologies Proprietary
2-31
2.3.7 Traffic Statistics Configuration Example
I. Networking requirement
Suppose the IP address of PC1 is 1.0.0.1 and that of PC2 is 2.0.0.2. The switch is
uplinked through the port GE7/0/8. Count the packets sent 8:00~18:00 each day from
the switch to PC1.

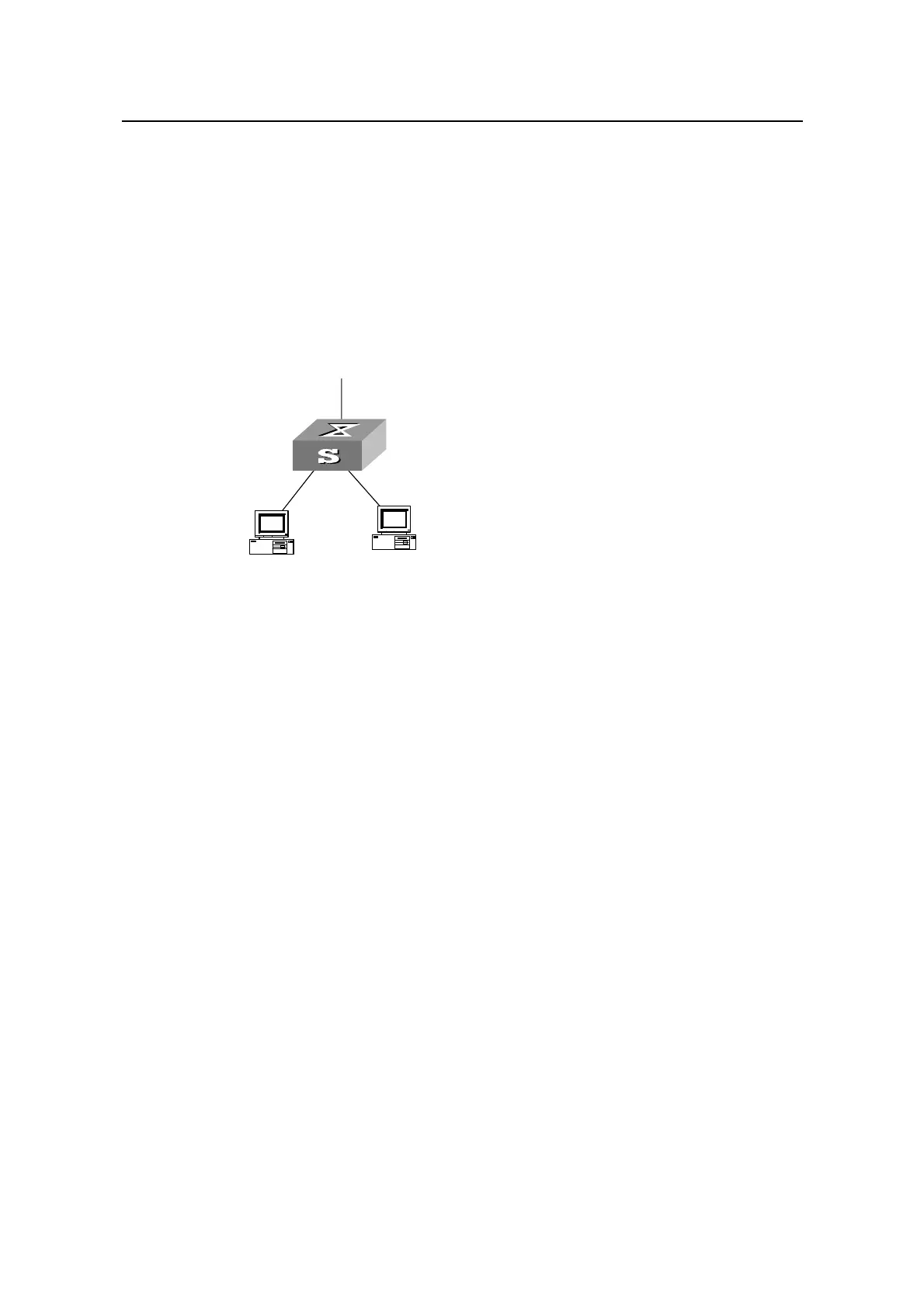

II. Networking diagram
GE7/0/8
GE7/0/1
GE3/0/2
VLAN2,
1.0.0.1/8
VLAN3,
2.0.0.1/8
PC1
PC2
Figure 2-8 QoS configuration example
III. Configuration procedure
1) Define the time range 8:00~18:00.
# Define the time range.
[Quidway] time-range huawei 8:00 to 18:00 daily
2) Define traffic rules for PC1 packets.
# Define traffic classification rules for PC1 packets.
[Quidway] acl number 2000
[Quidway-acl-basic-2000] rule 0 permit source 1.1.1.1 0.0.0.0 time-range huawei
3) Count PC1 packets, view the statistics with the display command.
# Enter QoS view.
[Quidway-GigabitEthernet7/0/1] qos
[Quidway-qosb-GigabitEthernet7/0/1]
# Count PC1 packets, view the statistics with the display command.
[Quidway-qosb-GigabitEthernet7/0/1] traffic-statistic inbound ip-group 2000 rule 0
[Quidway] display qos-interface GigabitEthernet7/0/1 traffic-statistic
