Operation Manual - QoS/ACL

Quidway S6500 Series Ethernet Switches Chapter 1 ACL Configuration

Huawei Technologies Proprietary

1-14

1) Define the time range

# Define time range from 8:00 to 18:00.

[Quidway] time-range huawei 8:00 to 18:00 daily

2) Select ACL mode

# Select ip-based ACL mode.

[Quidway] acl mode ip-based

3) Define the ACL for packet which source IP is 10.1.1.1.

# Enter the named basic ACL, named as traffic-of-host.

[Quidway] acl name traffic-of-host basic

# Define the rules for packet which source IP is 10.1.1.1.

[Quidway-acl-basic-traffic-of-host] rule 1 deny source 10.1.1.1 0 time-range huawei

4) Activate ACL.

# Activate the ACL traffic-of-host .

[Quidway-Ethernet2/0/1] qos

[Quidway-qoss-Ethernet2/0/1] packet-filter inbound ip-group traffic-of-host

1.3.3 Link ACL Configuration Example

I. Networking requirements

Using Link ACL, filter the packet which source MAC address is 00e0-fc01-0101 and

destination MAC address is 00e0-fc01-0303 during time range 8:00 ~ 18:00 every day.

The ACL is activated on Ethernet2/0/1.

II. Networking diagram

Switch

connect to Router

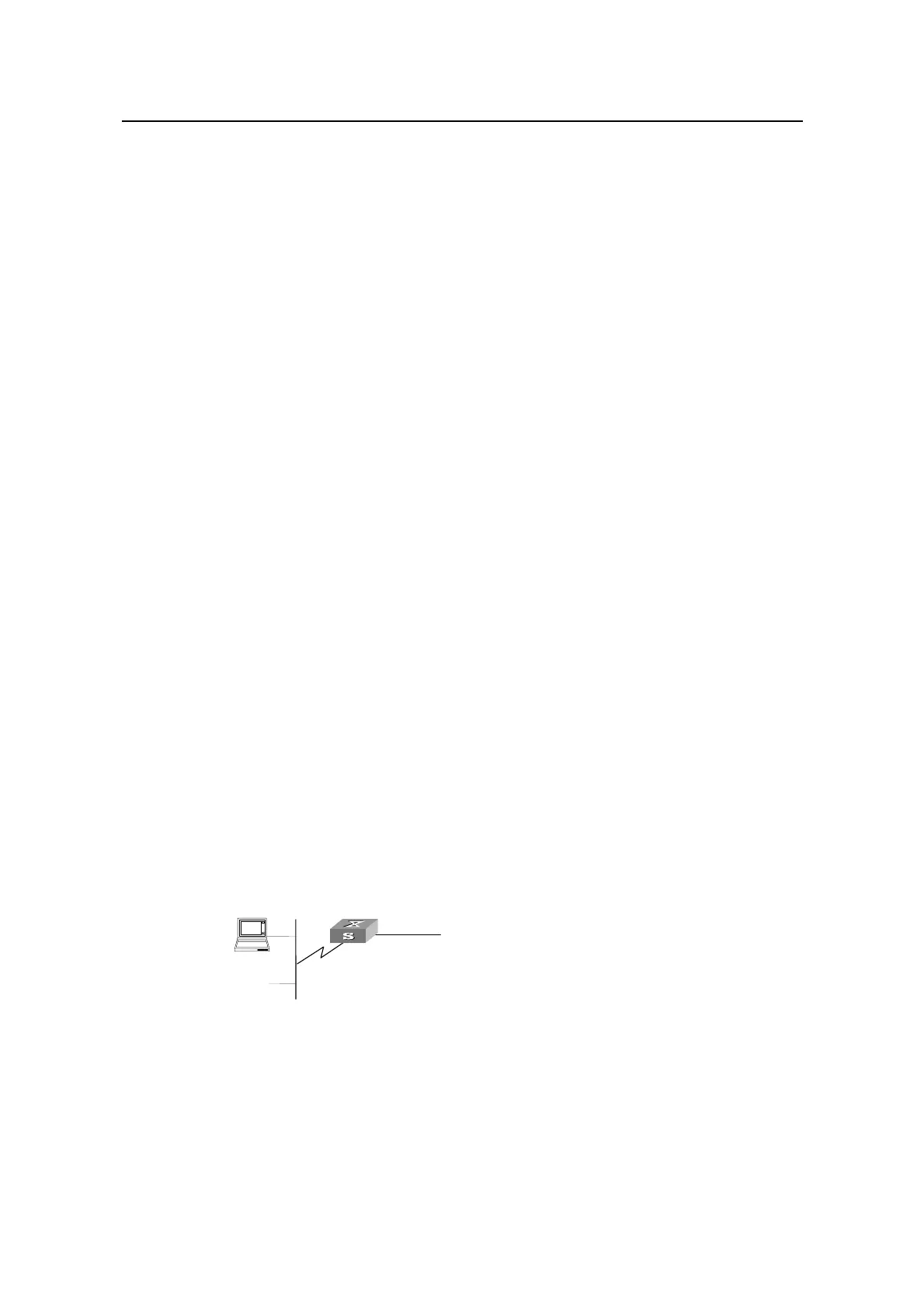

Figure 1-3 Access control configuration example

III. Configuration precedure
