Huawei Quidway S6500 Series User Manual

Operation Manual - Multicast Protocol
Quidway S6500 Series Ethernet Switches
Chapter 7 Multicast MAC Address
Configuration
Huawei Technologies Proprietary
7-2
ernet4/0/2
.3.3.3
7.3 Multicast MAC Address Configuration Example
I. Network requirements
The S6506 connects two hosts: Host1 and Host2. Add a multicast MAC address to
send the multicast packets with multicast MAC address 0100-0000-0001 only to Host1
and the multicast packets with multicast MAC address 0100-0000-0002 only to Host2.
Specific configuration task:
z Configure Host1 and Host2 into VLAN2.
z Link Host1, with IP address 3.3.3.2, to the S6506 through port 4/0/1.
z Link Host2, with IP address 3.3.3.3 to the S6506 through port 4/0/2.
II. Netowrk diagram
Switch
Ethernet4/0/1
IP:3.3.3.2
Eth
IP:3
VLAN 2
Host1 Host2
Network
ernet4/0/2
.3.3.3
Switch
Ethernet4/0/1
IP:3.3.3.2
Eth
IP:3
VLAN 2
Host1 Host2
Network

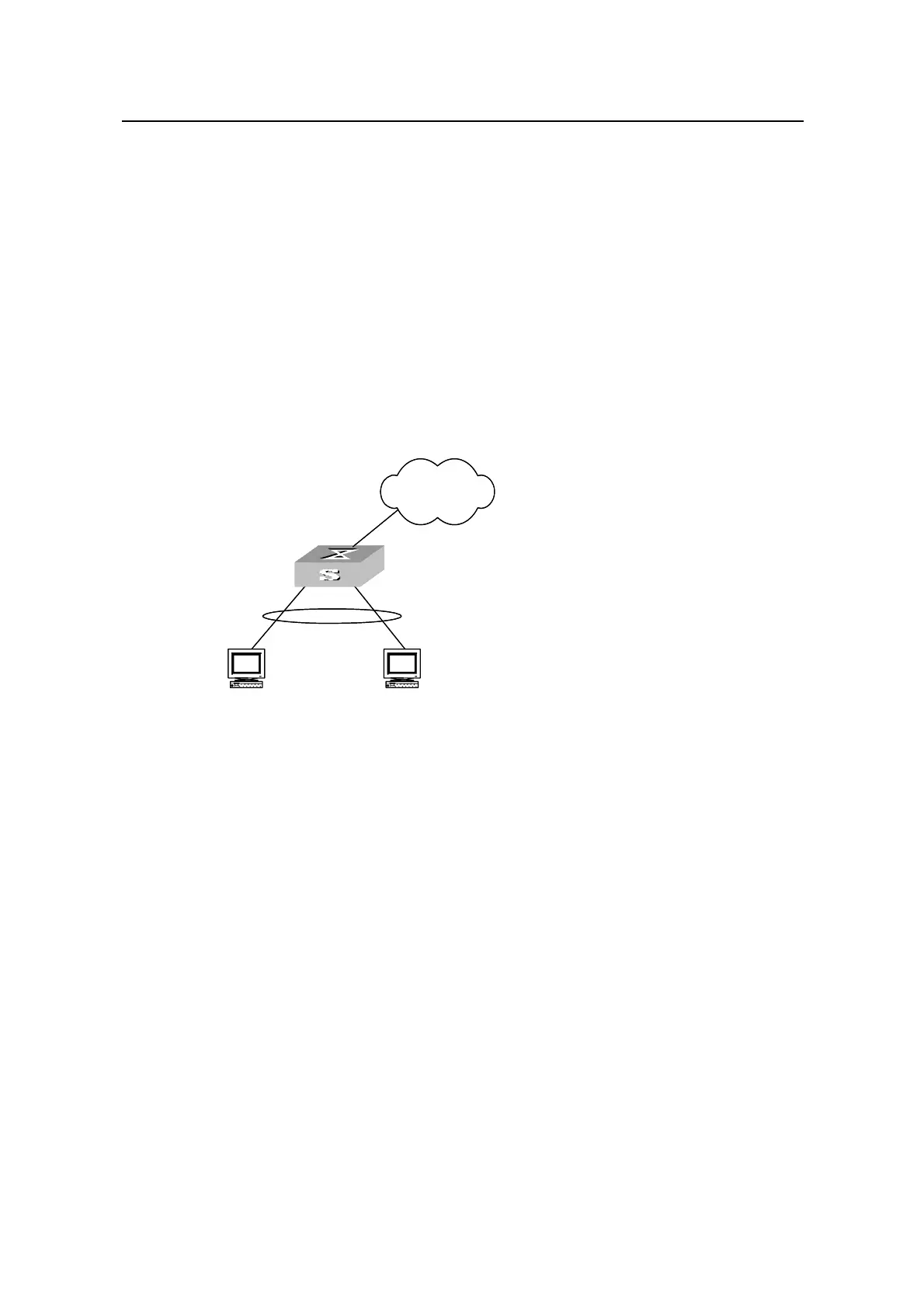

Figure 7-1 Network diagram for Multicast MAC address configuration
III. Configuration procedure
# Enter system view.
<Quidway> system-view
# Disable ARP check.
[Quidway] undo arp check enable
# Bind multicast MAC address with port 4/0/1.
[Quidway] arp static 3.3.3.2 0100-0000-0001 2 gigabitethernet 4/0/1
[Quidway] mac-address multicast 0100-0000-0001 interface gigabitethernet 4/0/1 vlan
2
# Bind multicast MAC address with port 4/0/2
[Quidway] arp static 3.3.3.3 0100-0000-0002 2 gigabitethernet 4/0/2
[Quidway] mac-address multicast 0100-0000-0002 interface gigabitethernet 4/0/2 vlan
2
