Operation Manual - QoS/ACL
Quidway S6500 Series Ethernet Switches Chapter 2 QoS Configuration
Huawei Technologies Proprietary
2-28
3) Forward PC1 packets to the port GE7/0/8.
# Enter QoS view.
[Quidway-GigabitEthernet7/0/1] qos
[Quidway-qosb-GigabitEthernet7/0/1]
# Forward PC1 packets to the port GE7/0/8.
[Quidway-qosb-GigabitEthernet7/0/1] traffic-redirect inbound ip-group 2000 rule 0
interface gigabitethernet7/0/8
2.3.5 RED Configuration Example
I. Networking requirement
Run RED operation for the packets sent 8:00~18:00 every day from IP address 1.0.0.1
to the port E3/0/8. RED operation is set as: The queue length triggering random
discarding ranges from 64k bytes to 128k bytes; probability for random discarding is
20%.
 Note:
The LS82GP20 and LS82GT20 interface units do not support this configuration.

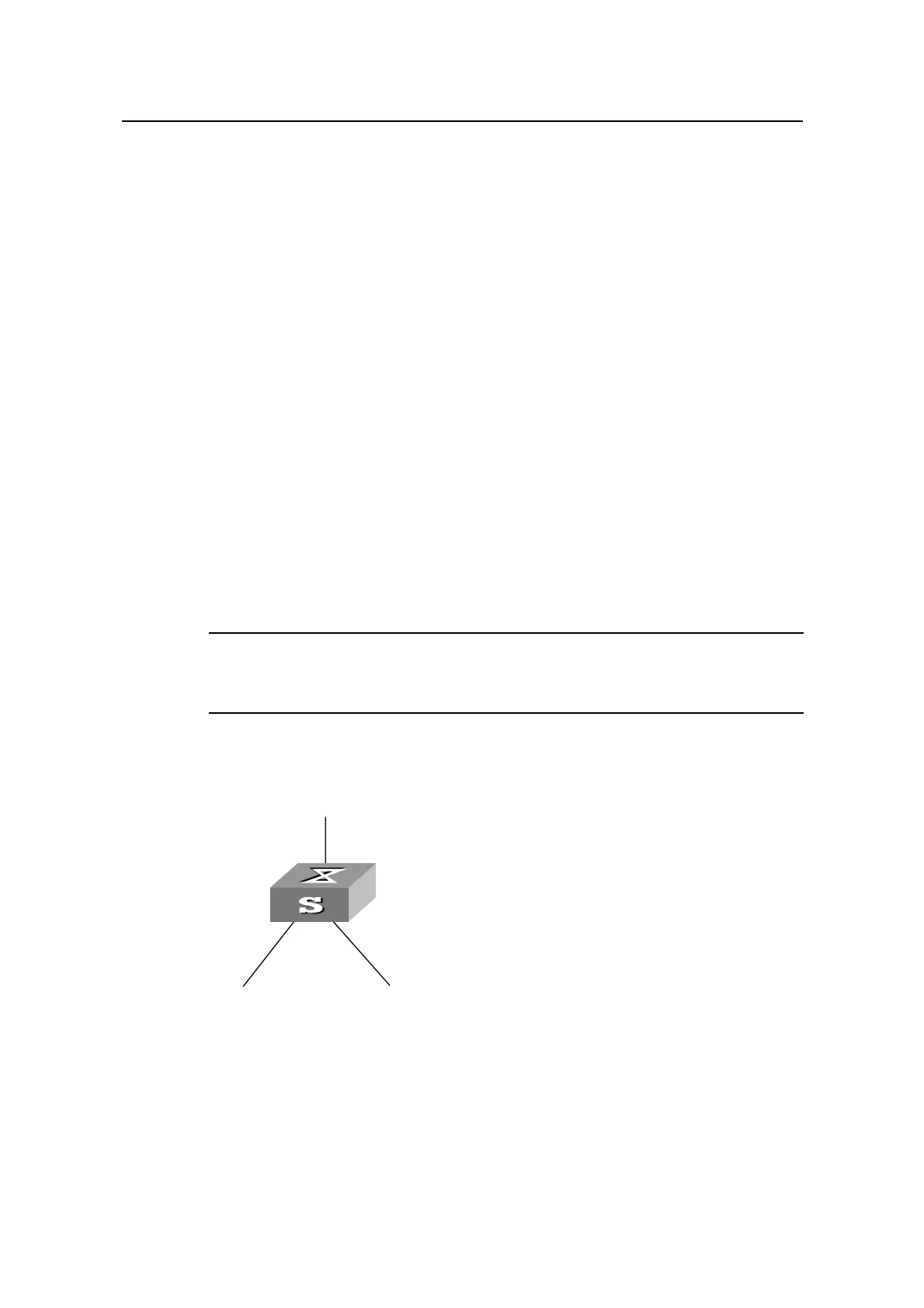

II. Networking diagram
E3/0/8
GE3/0/1
GE3/0/2
VLAN2,
1.0.0.1/8
VLAN3,
2.0.0.1/8
Figure 2-6 QoS configuration example
III. Configuration procedure
1) Define the time range 8:00~18:00.
# Define the time range.
