Quidway S6500 Series Ethernet Switches Chapter 2 QoS Configuration
Huawei Technologies Proprietary
2-30
II. Networking diagram
E3/0/8
GE3/0/1
GE3/0/2
VLAN2,
1.0.0.1/8
VLAN3,
2.0.0.1/8

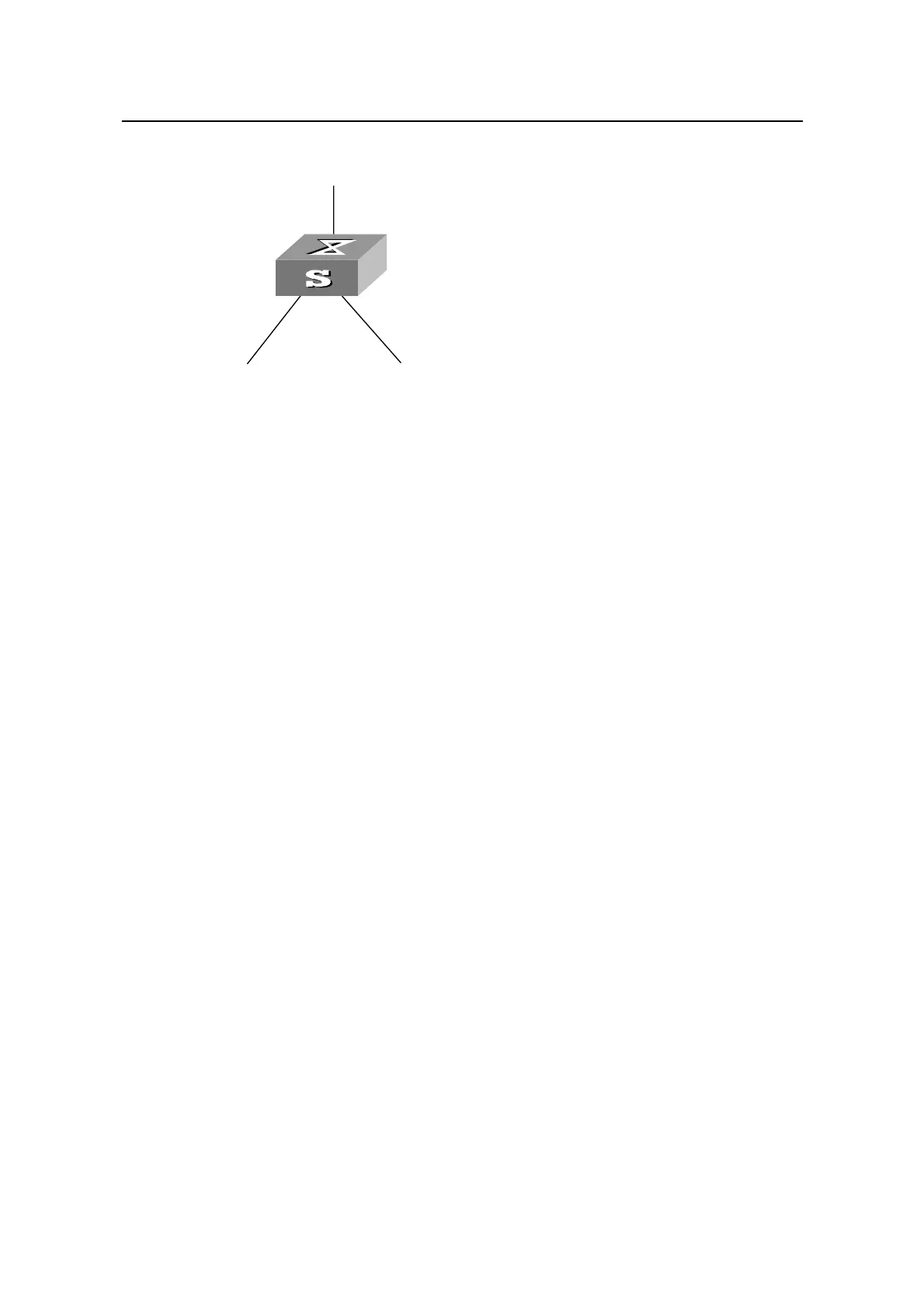

Figure 2-7 QoS configuration example
III. Configuration procedure
1) Define the time range 8:00~18:00.
# Define the time range.
[Quidway] time-range huawei 8:00 to 18:00 daily
2) Define traffic rules for the packets of IP addresses 1.0.0.1 and 2.0.0.1.
# Define traffic rules for the packets of IP addresses 1.0.0.1 and 2.0.0.1.
[Quidway] acl number 2000
[Quidway-acl-basic-2000] rule 0 permit source 1.0.0.1 0.0.0.0 time-range huawei
[Quidway-acl-basic-2000] rule 1 permit source 2.0.0.1 0.0.0.0 time-range huaweis
3) Configure traffic bandwidth for the packets of IP addresses 1.0.0.1 and 2.0.0.1,
view the configuration with the display command.
# Enter QoS view.
[Quidway-Ethernet3/0/8] qos
[Quidway-qoss-Ethernet3/0/8]
# Configure traffic bandwidth for the packets of IP addresses 1.0.0.1 and 2.0.0.1, view
the configuration with the display command.
[Quidway-qoss-Ethernet3/0/8] traffic-bandwidth outbound ip-group 2000 rule 0 20480
61440 40
[Quidway-qoss-Ethernet3/0/8] traffic-bandwidth outbound ip-group 2000 rule 1 40960
61440 60
[Quidway] display qos-interface Ethernet3/0/8 traffic-bandwidth
