Operation Manual - Multicast Protocol
Quidway S6500 Series Ethernet Switches Chapter 6
PIM Configuration
Huawei Technologies Proprietary
6-16
z LS_A is connected to LS_B through vlan-interface10, to Host A through
vlan-interface11, and to LS_C through vlan-interface12.
z LS_B is connected to LS_A through vlan-interface10, to LS_C through
vlan-interface11, and to LS_D through vlan-interface12.
z LS_C is connected to Host B through vlan-interface10, to LS_B through
vlan-interface11, and to LS_A through vlan-interface12.
Host A is the receiver for a multicast group with multicast IP address 225.0.0.1; Host B
is sending data with destination IP 225.0.0.1; Switch LS_A receives the multicast data
from Host B through Switch LS_B. When multicast data sent by Host B reaches Switch
LS_A, LS_A joints SPT to receive Host B data from Switch LS_C.
II. Networking diagram
LSD
LS_B
LS_A
Host A
VLAN11 VLAN12
VLAN10
VLAN10
VLAN12
VLAN1
LS_C
Host B
VLAN11
2 VLAN10
VLAN11
LSD
LS_B
LS_A
Host A
VLAN11 VLAN12
VLAN10
VLAN10
VLAN12
VLAN1
LS_C
Host B
VLAN11
2 VLAN10
VLAN11
g

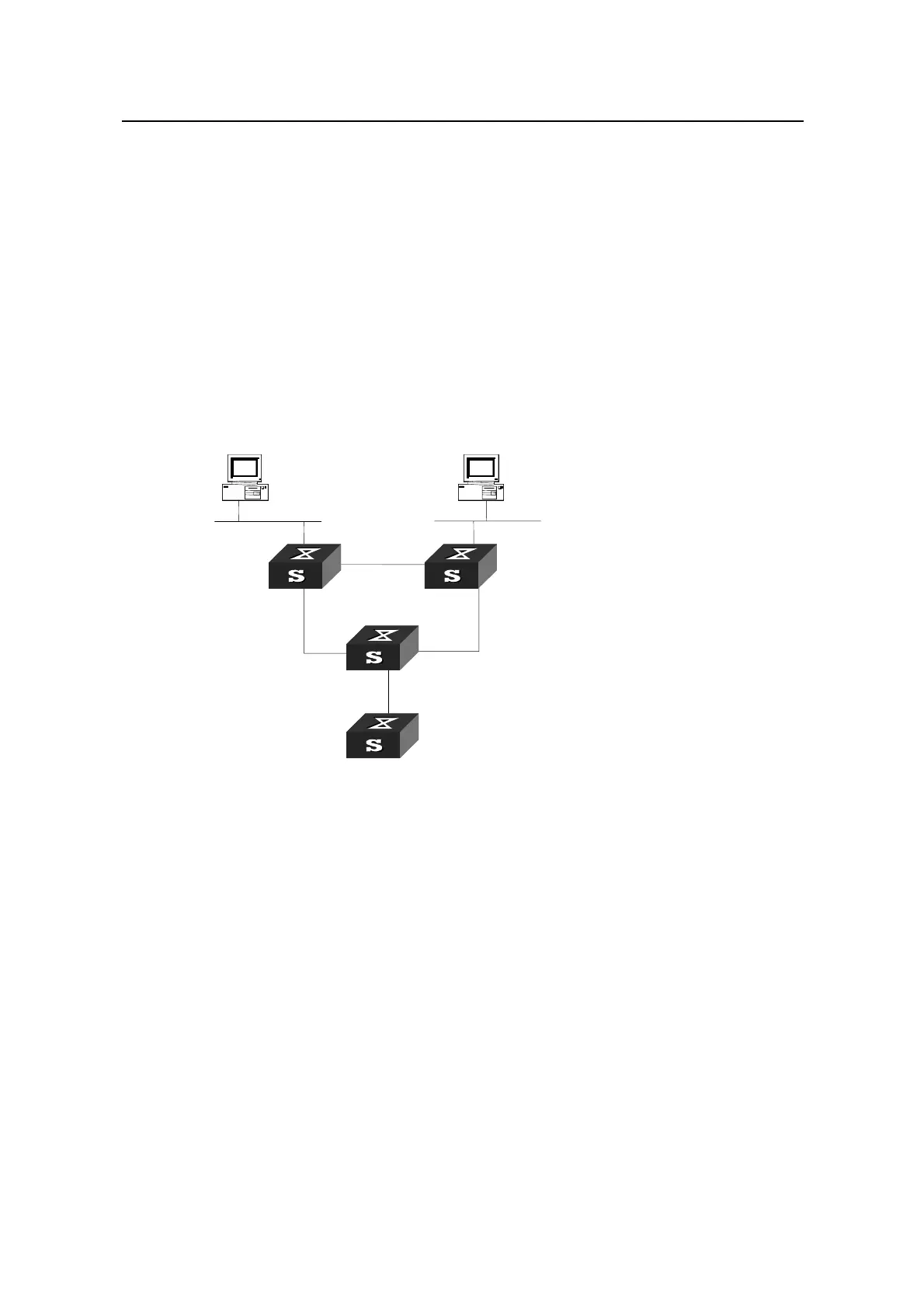

Figure 6-4 PIM-SM configuration networkin
III. Configuration procedure
1) Configuring Ethernet LS_A.
# Enabling PIM-SM protocol
[Quidway] multicast routing-enable
[Quidway] vlan 10
[Quidway-vlan10] port ethernet 3/0/2 to ethernet 3/0/3
[Quidway-vlan10] quit
[Quidway] interface vlan-interface 10
[Quidway-vlan-interface10] igmp enable
[Quidway-vlan-interface10] pim sm
[Quidway-vlan-interface1] igmp enable
