Quidway S6500 Series Ethernet Switches Chapter 1 VRRP Configuration
Huawei Technologies Proprietary
1-10
z virtual router ID: 1
z virtual IP address: 202.38.160.111
z master: switch A
z backup: switch B
z preemption: allowed

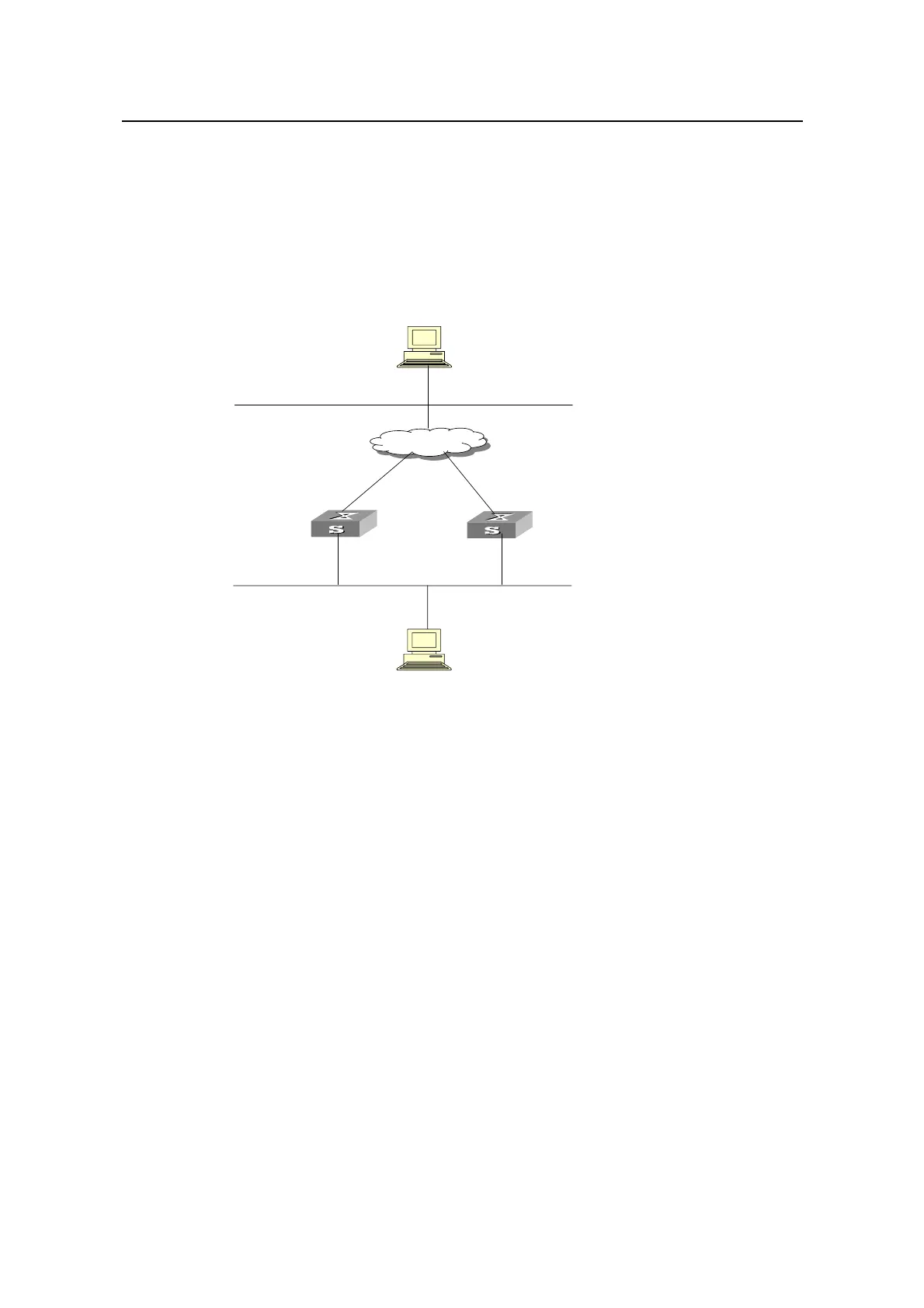

II. Network diagram
Virtual IP address: 202.38.160.111
Switch_A
Host A
202.36.160.3
VLAN-interface2: 202.38.160.1
Internet
Switch_B
VLAN-interface2: 202.38.160.2
VLAN-interface3: 10.100.10.2
Host B
10.2.3.1
Figure 1-3 Network diagram for VRRP configuration
III. Configuration procedure
1) Configure switch A.
# Configure VLAN2.
[LSW-A] vlan 2
[LSW-A-vlan2] interface vlan 2
[LSW-A-vlan-interface2] ip address 202.38.160.1 255.255.255.0
[LSW-A-vlan-interface2] quit
# Configure VRRP.
[LSW-A] vrrp ping-enable
[LSW-A] interface vlan 2
[LSW-A-vlan-interface2] vrrp vrid 1 virtual-ip 202.38.160.111
