Operation Manual - System Management
Quidway S6500 Series Ethernet Switches Chapter 5 SNMP Configuration
Huawei Technologies Proprietary
5-10

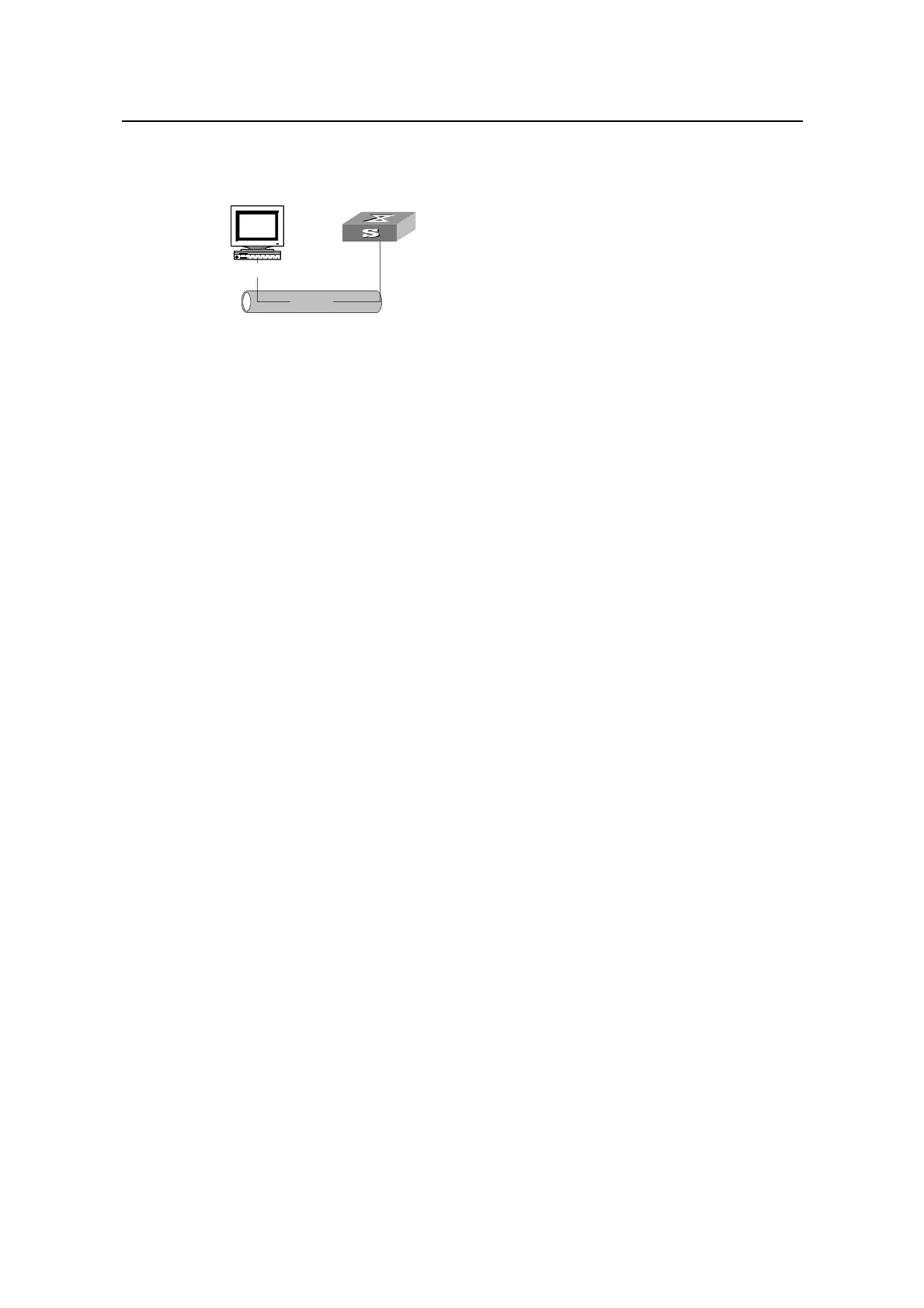

II. Networking diagram
Ethernet
NMS
129.102.0.1
129.102.149.23
Figure 5-2 SNMP configuration example
III. Configuration procedure
# Enter the system view.
<Quidway> system-view
# Set the community name , group name and user.
[Quidway] snmp-agent sys-info version all
[Quidway] snmp-agent community write public
[Quidway] snmp-agent mib include internet 1.3.6.1
[Quidway] snmp-agent group v3 managev3group write internet
[Quidway] snmp-agent usm v3 managev3user managev3group
# Set the VLAN interface 2 as the interface used by network management. Add port
GigabitEthernet 2/0/3 to the VLAN 2. This port will be used for network management.
set the IP address of VLAN interface 2 as 129.102.0.1.
[Quidway] vlan 2
[Quidway-vlan2] port gigabitethernet 2/0/3
[Quidway-vlan2] interface vlan 2
[Quidway-Vlan-interface2] ip address 129.102.0.1 255.255.255.0
# Set the administrator ID, contact and the physical location of the Ethernet switch.
[Quidway] snmp-agent sys-info contact Mr.Wang-Tel:3306
[Quidway] snmp-agent sys-info location telephone-closet,3rd-floor
# Enable SNMP agent to send the trap to Network Management Station whose ip
address is 129.102.149.23. The SNMP community is public.
[Quidway] snmp-agent trap enable standard authentication
[Quidway] snmp-agent trap enable standard coldstart
[Quidway] snmp-agent trap enable standard linkup
[Quidway] snmp-agent trap enable standard linkdown
[Quidway] snmp-agent target-host trap address udp-domain 129.102.149.23 udp-port
5000 params securityname public
