174 Supply Voltage Screen
The Supply Voltage screen shows a graphic image of the type of configuration that has been
selected. The four supply configurations are shown in Figure 10-32, Figure 10-33,
Figure 10-34, and Figure 10-35. The areas of the Supply Voltage screen are described in
Table 10-20.

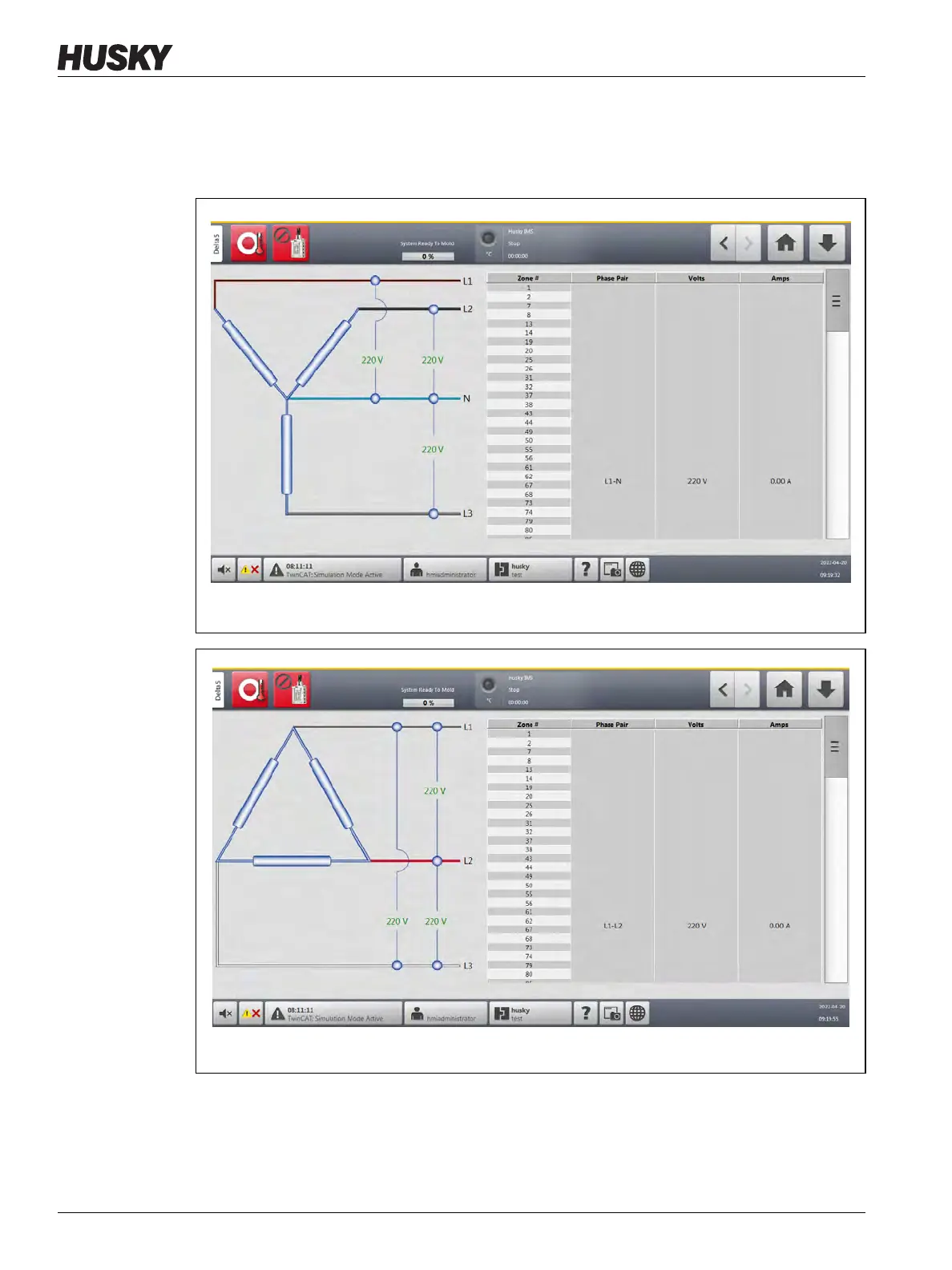

Figure 10-32 Wye 3PH+N Supply Voltage Screen
Figure 10-33 Delta 3PH Supply Voltage Screen
