Troubleshooting with the Card Layout Screen 271
User Guide v 2.0 — March 2023 Maintenance
2. Deselect all checkboxes, and then select only the Zone Alarm Active and Zone Alarm
Inactive checkboxes.
3. Touch the Exit button.
A list of active and inactive faults is shown.
4. Select the applicable error and then touch the Card Layout button.
A screen with the fault information shows. Refer to Figure 16-6.

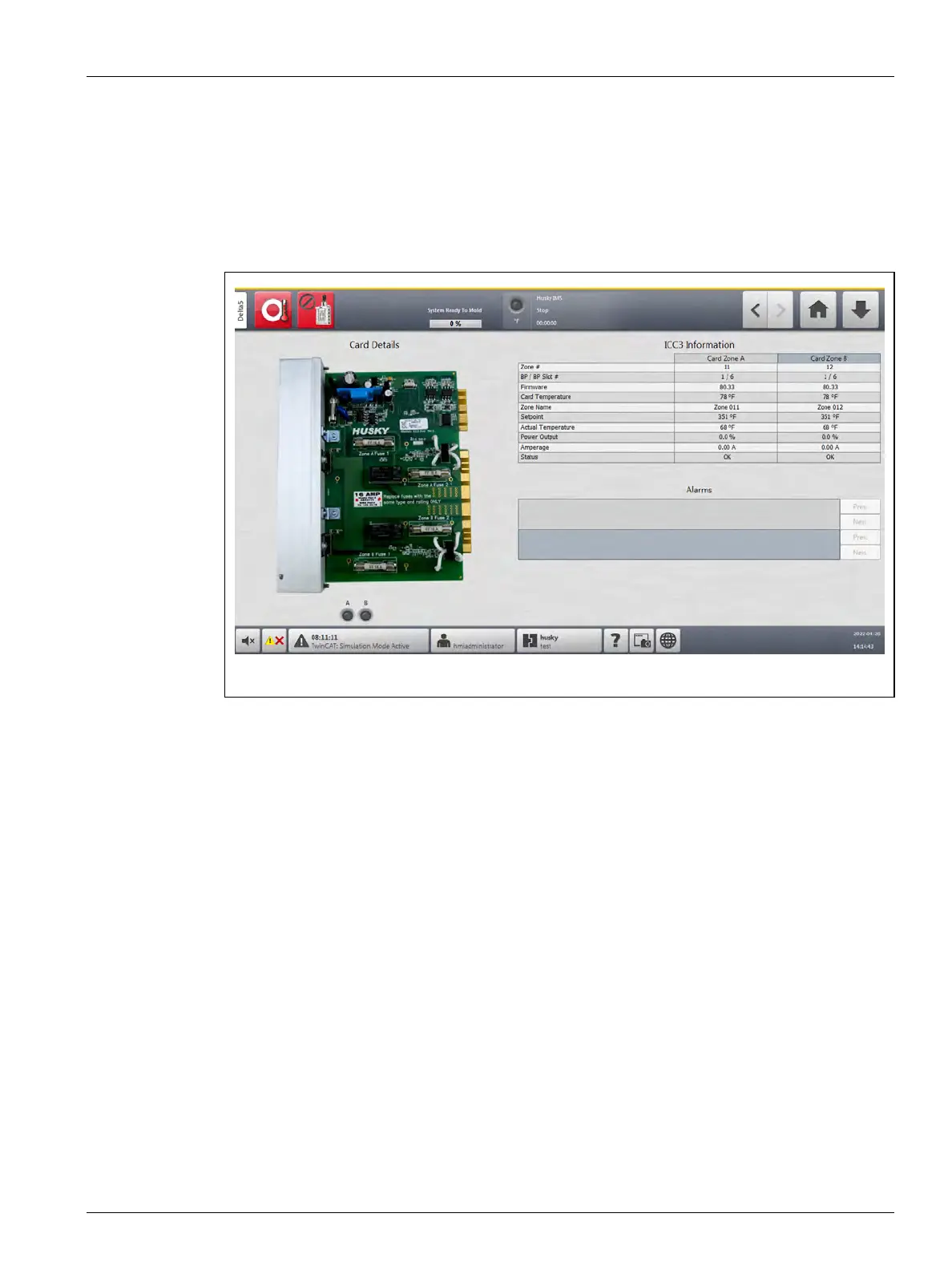

Figure 16-6 Card Layout Information Example
