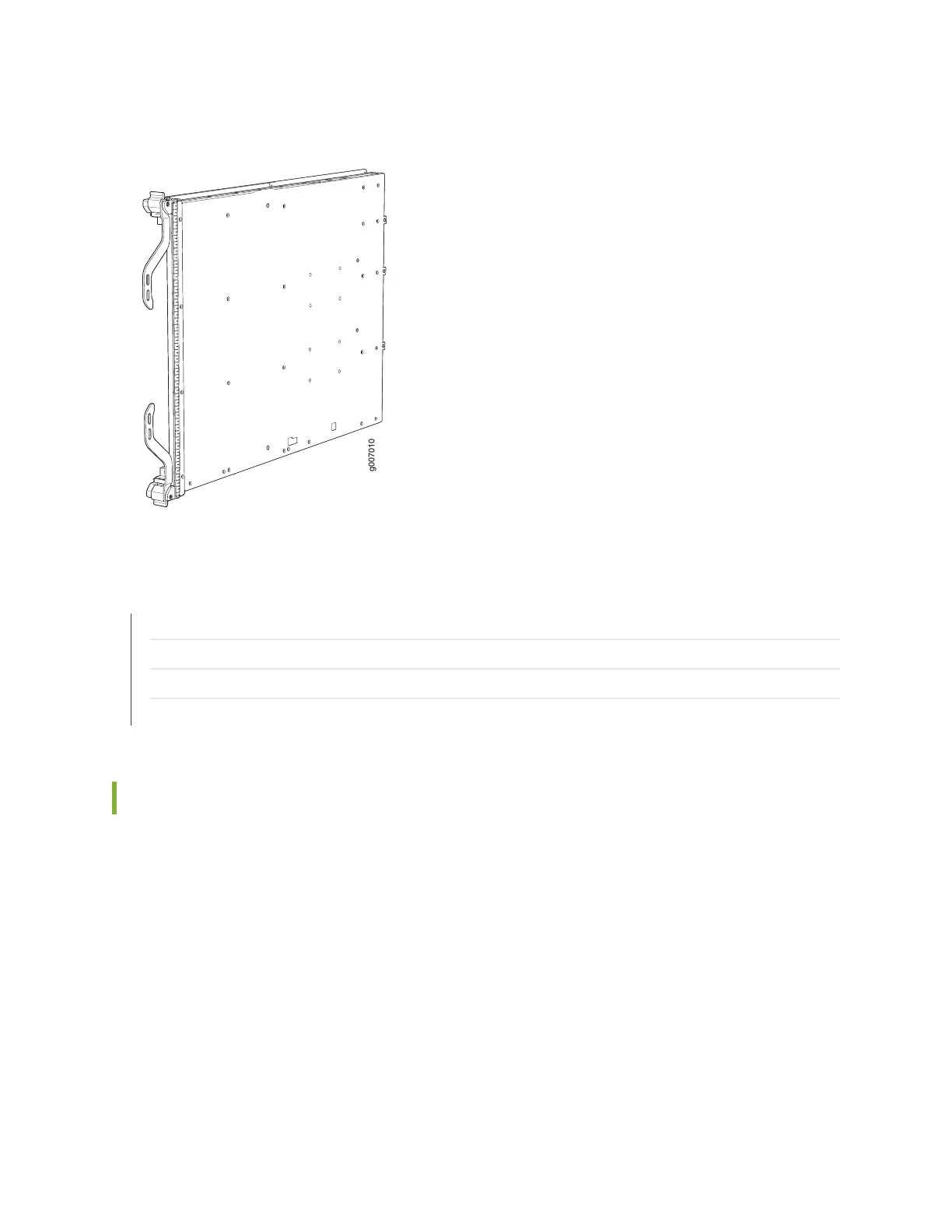

Figure 32: ADC for the MX2000 Routers
RELATED DOCUMENTATION
Maintaining the MX2010 Adapter Cards
Maintaining MX2020 Adapter Cards | 551
MPCs Supported by MX Series Routers | 79
Replacing an MX2008 MPC
MPC Terminology
Regardless of whether you are holding an MPC vertically or horizontally, this information uses the same
terms for all four edges of the MPC (see Figure 33 on page 86):
•
Faceplate—Edge of the MPC that has connectors into which you insert the SFP or XFP transceivers
•
Connector edge—Edge opposite the faceplate; this edge has the connectors that attach to the midplane
•
Top edge—Edge at the top of the MPC when it is vertical
•
Bottom edge—Edge at the bottom of the MPC when it is vertical
