Juniper MX2020 - Installing the MX2020 Upper Cable Manager

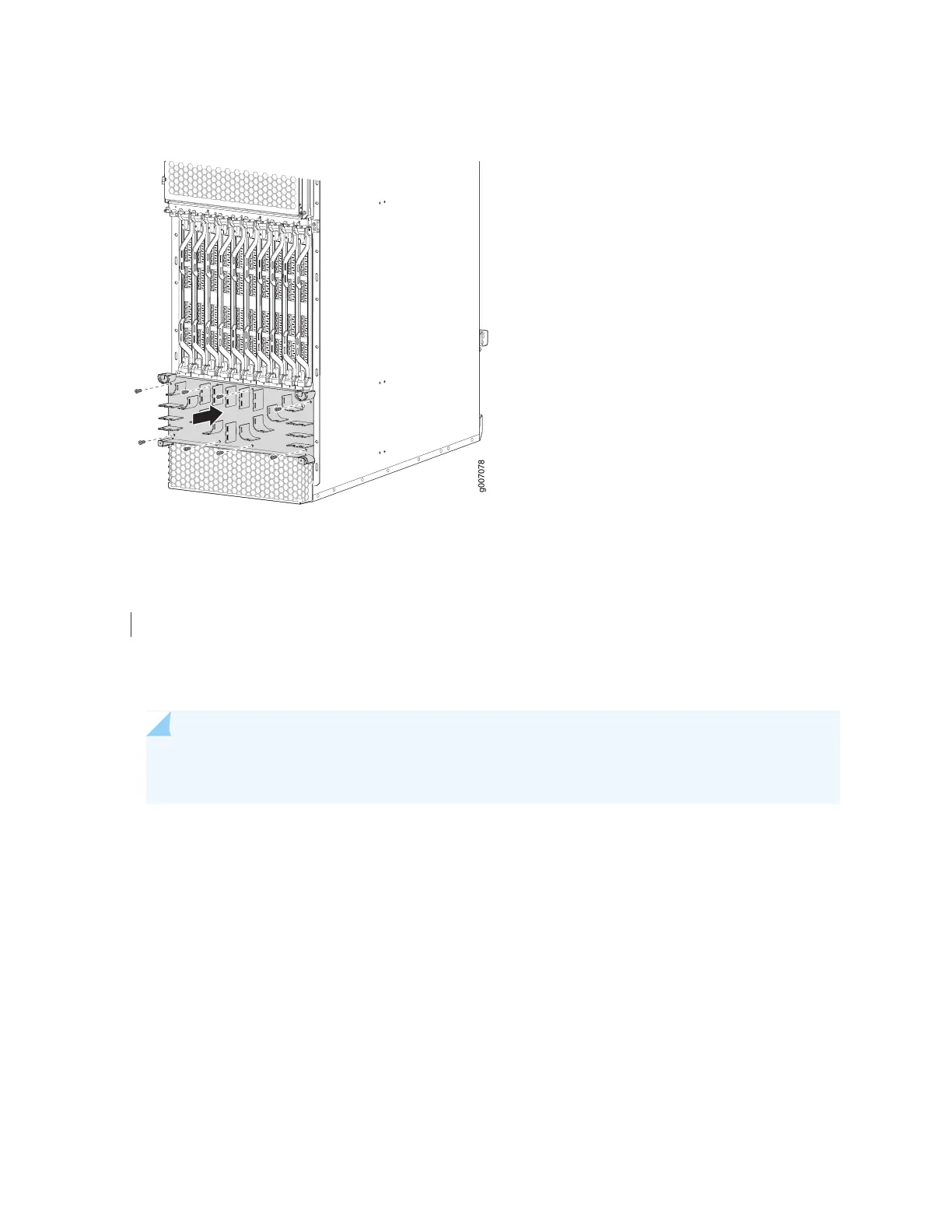

Figure 272: Installing the Standard Lower Cable Manager
g007078
SEE ALSO
Removing the MX2020 Lower Cable Manager | 618
Installing the MX2020 Upper Cable Manager
NOTE: To accommodate additional clearance, you may order an extended upper cable manager
from Juniper Networks.
To install the upper cable manager (see Figure 273 on page 622):
1. Position the upper cable manager on the studs on the upper front of the chassis, just below the craft
interface.
2. Insert the screws into the corners in the upper cable manager onto the studs on the chassis.
3. Using a Phillips (+) screwdriver (number 1 or 2), tighten the mounting screws securely.
4. Replace the cable manager cover, and secure the two captive screws.
