3. Lift the DC cable manager slightly up while inserting the two flanges into the slots on both sides of the
DC PDM.
4. Push down to secure the DC cable manager in place.

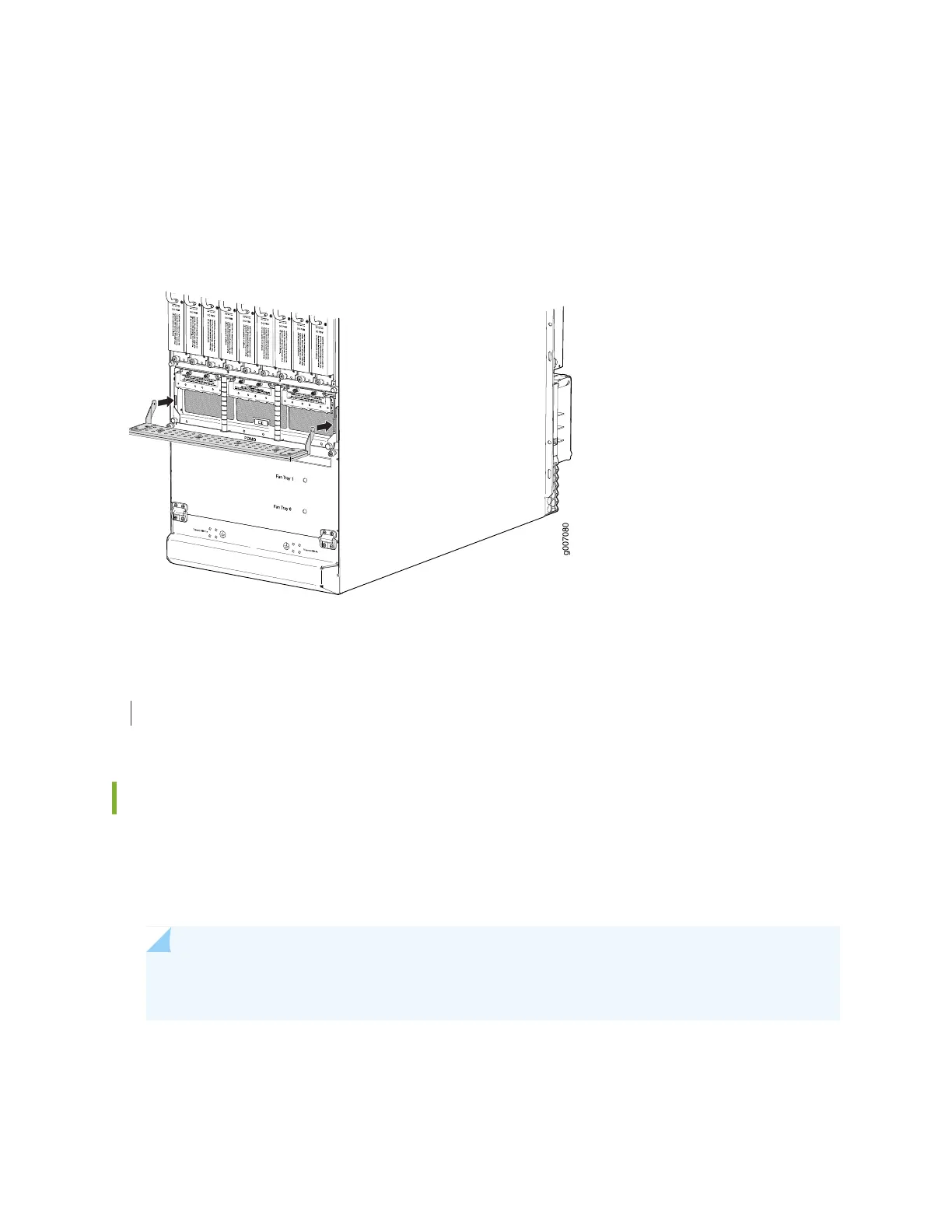

Figure 268: Installing the Standard DC Cable Manager
RELATED DOCUMENTATION
Removing the MX2020 DC Cable Manager | 614
Replacing the MX2020 Cable Managers
The MX2020 router consists of an upper, middle card-cage, lower, and DC cable management system
used for routing and securing cables away from system components. There are two types of cable
management systems: standard and extended. The following instructions represent both.
NOTE: The middle card-cage cable manager is permanently installed on the MX2020 system
chassis, and cannot be removed.
1.
Removing the MX2020 Upper Cable Manager | 617
2.
Removing the MX2020 Lower Cable Manager | 618
