NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to connect
your laptop or PC directly to the device, use a combination of the RJ-45 to DB-9 female adapter
supplied with the device and a USB to DB-9 male adapter. You must provide the USB to DB-9
male adapter.
To connect the device to a management console (see Figure 293 on page 654 and Figure 294 on page 654):
1. Connect one end of the Ethernet cable to the console port (labeled CON, CONSOLE, or CON1) on the
device.
2. Connect the other end of the Ethernet cable to the console server (see Figure 293 on page 654) or
management console (see Figure 294 on page 654).

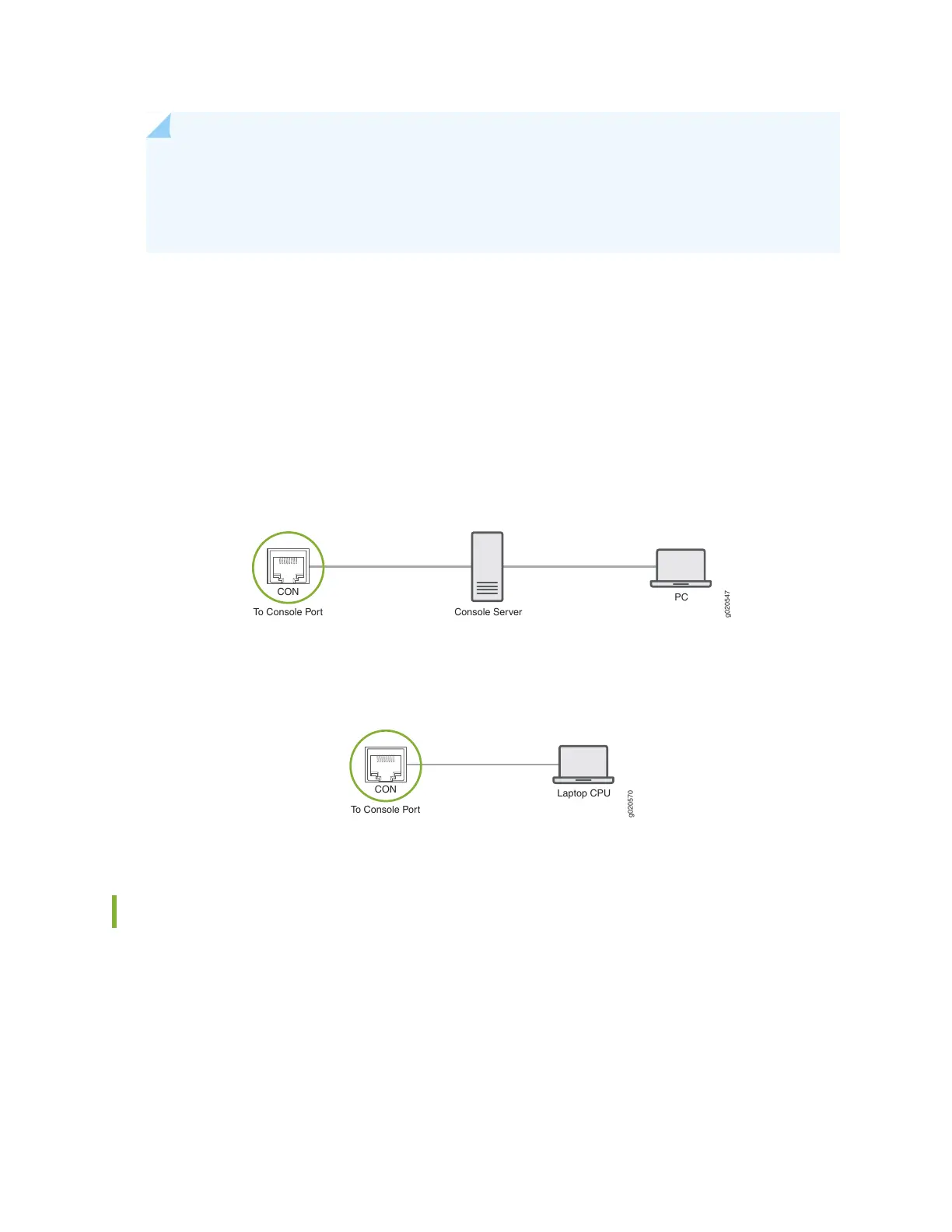

Figure 293: Connecting a Device to a Management Console Through a Console Server
g020547
PC
To Console Port Console Server
CON
Figure 294: Connecting a Device Directly to a Management Console
g020570
Laptop CPU
To Console Port
CON
Connecting a Fiber-Optic Cable
Before you begin to connect a fiber-optic cable to an optical transceiver installed in a device, ensure that
you have taken the necessary precautions for safe handling of lasers (see “Laser and LED Safety Guidelines
and Warnings” on page 755).
654
