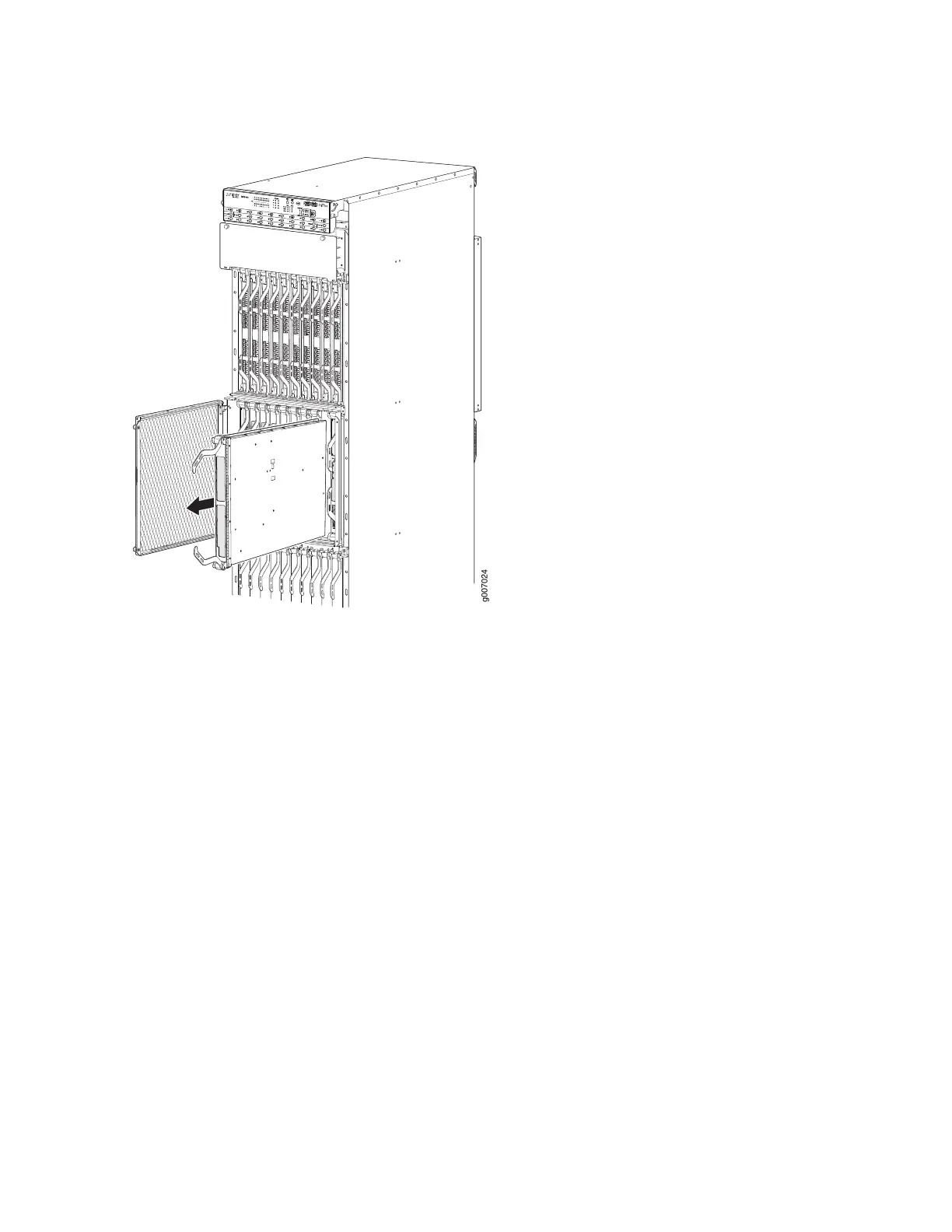

Figure 96: Removing an SFB

g007024

OK/FAIL

Removing the MPCs with Adapter Card Before Installing an MX2020 Router

To remove an MPC with an adapter card (ADC):

1. Have ready an antistatic mat for the MPC with an ADC. Also have ready rubber safety caps for each

MPC using an optical interface on the MPC that you are removing.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to

an approved site ESD grounding point. See the instructions for your site.

3. Open both the ejector handles simultaneously to unseat the both the MPC and the ADC.

4. Grasp the handles, and slide the MPC along with the ADC straight out of the card cage halfway.

5. Place one hand around the front of the MPC with the ADC and the other hand under MPC to support

it. Slide the MPC along with the ADC completely out of the chassis, and place it on the antistatic mat

or in the electrostatic bag.
