Juniper MX2020 Hardware Guide

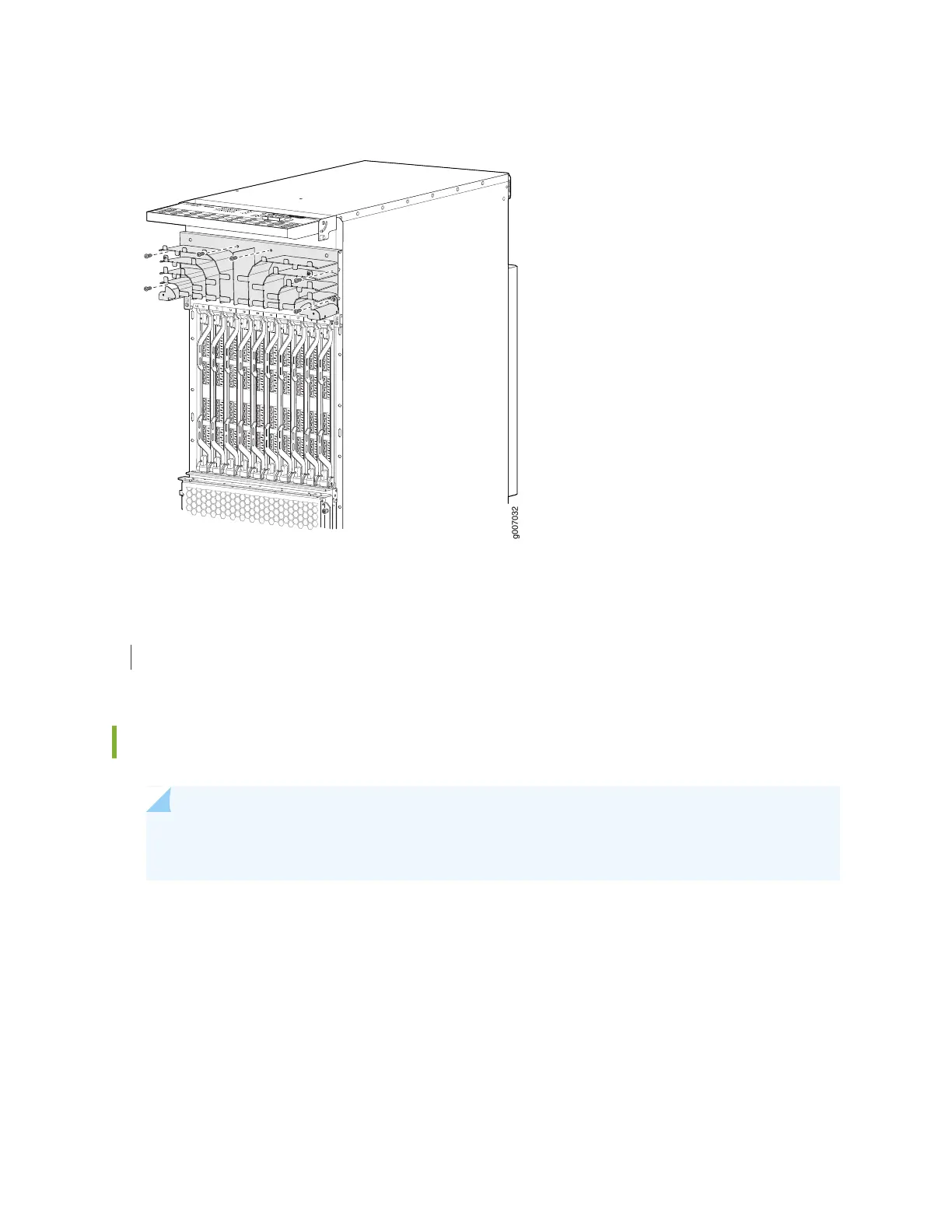

Figure 283: Removing the Standard Upper Cable Manager
g007032
RELATED DOCUMENTATION
Installing the MX2020 Upper Cable Manager | 621
Installing the MX2020 Upper Cable Manager
NOTE: To accommodate additional clearance, you may order an extended upper cable manager
from Juniper Networks.
To install the upper cable manager (see Figure 273 on page 622):
1. Position the upper cable manager on the studs on the upper front of the chassis, just below the craft
interface.
2. Insert the screws into the corners in the upper cable manager onto the studs on the chassis.
632
